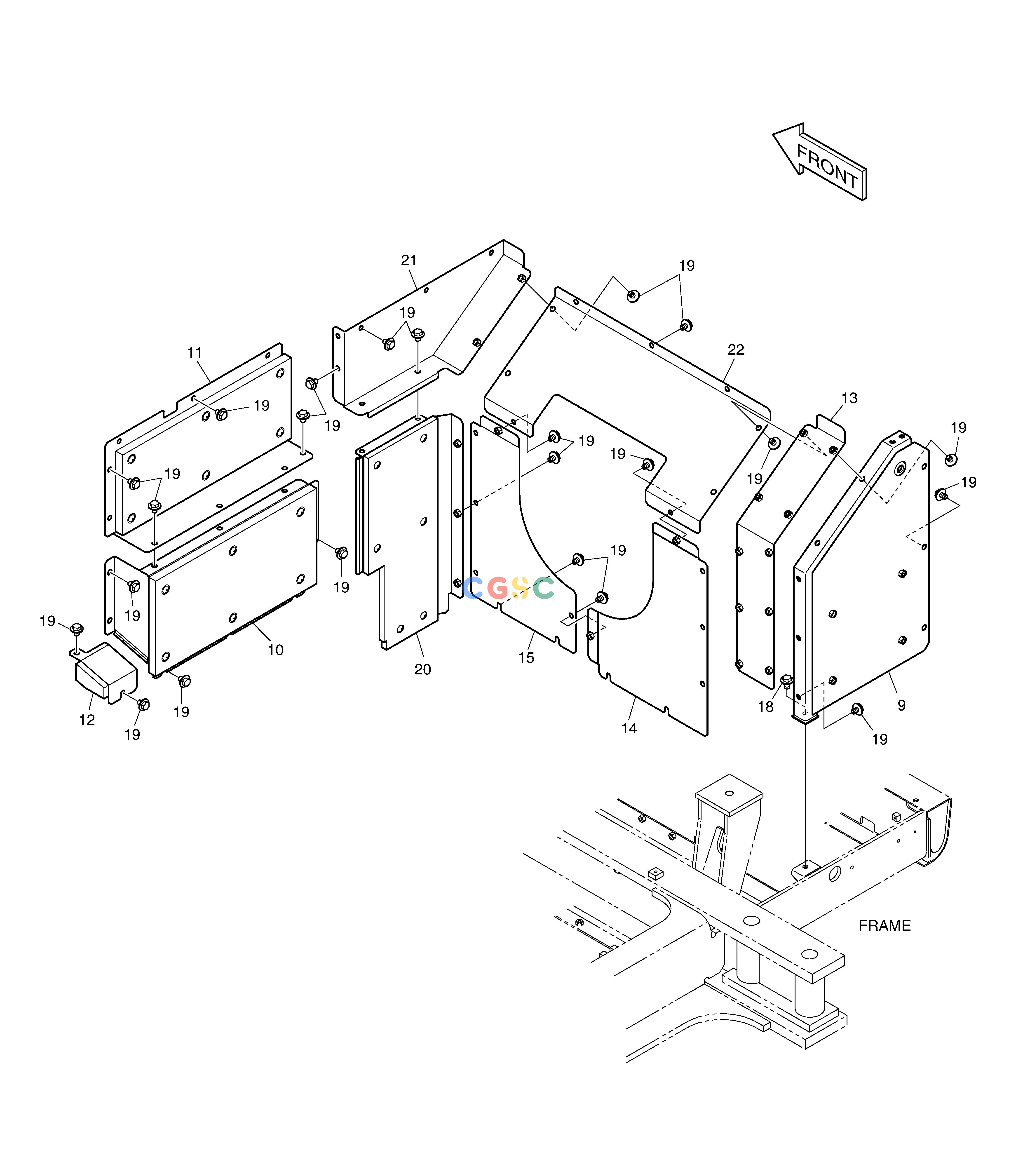

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1005076E | [-] | SUPPOT ASS'Y | |
| 10. | K1005239A | [1] | COVER;BAFFLE | |
| 11. | K1005240A | [1] | COVER;BAFFLE | |
| 12. | K1005297A | [1] | COVER;BAFFLE | |
| 13. | K1005215A | [1] | COVER;BAFFLE | |
| 14. | K1005212A | [1] | COVER;BAFFLE | |
| 15. | K1005213A | [1] | COVER;BAFFLE | |
| 18. | DS0025015 | [1] | BOLT | |
| 19. | DS0025022 | [53] | BOLT | |
| 20. | K1005216A | [1] | COVER;BAFFLE | |
| 21. | K1005217A | [1] | COVER;BAFFLE | |
| 22. | K1005214A | [1] | COVER;BAFFLE | |
| 9. | K1005211E | [1] | SUPPORT |
