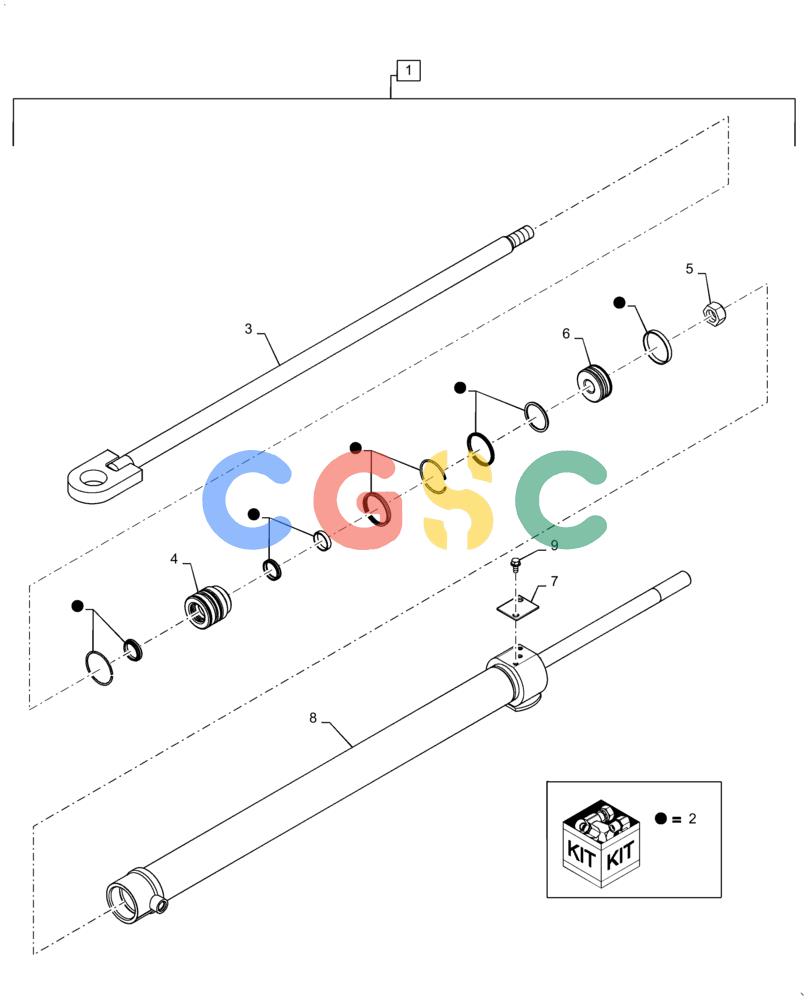

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (35.540.AI[02]) - VAR - 726813, 727159 - HYDRAULIC BALE DENSITY CYLINDERS, BETWEEN, BETWEEN, YFN188619 AND YGN193202 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
523 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84549525
|
[1] |
HYDRAULIC CYLINDER
|
NH
Hydraulic, Bale Tension, RH, Roll-Belt 550
|
| 1. |
47794184
|
[1] |
HYDRAULIC CYLINDER
|
PLO
Hydraulic, Bale Tension, LH
|
| 2. |
47624424
|
[1] |
SEAL KIT
|
NH
Components are NSS
|
| 3. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Rod
|
| 5. |
87629
|
[1] |
NUT,5/8"-11, GB
|
GI
Nut Superseded by part number: 9602227
|
| 9. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
5/16" x .0.50" Flange Bolt
|
