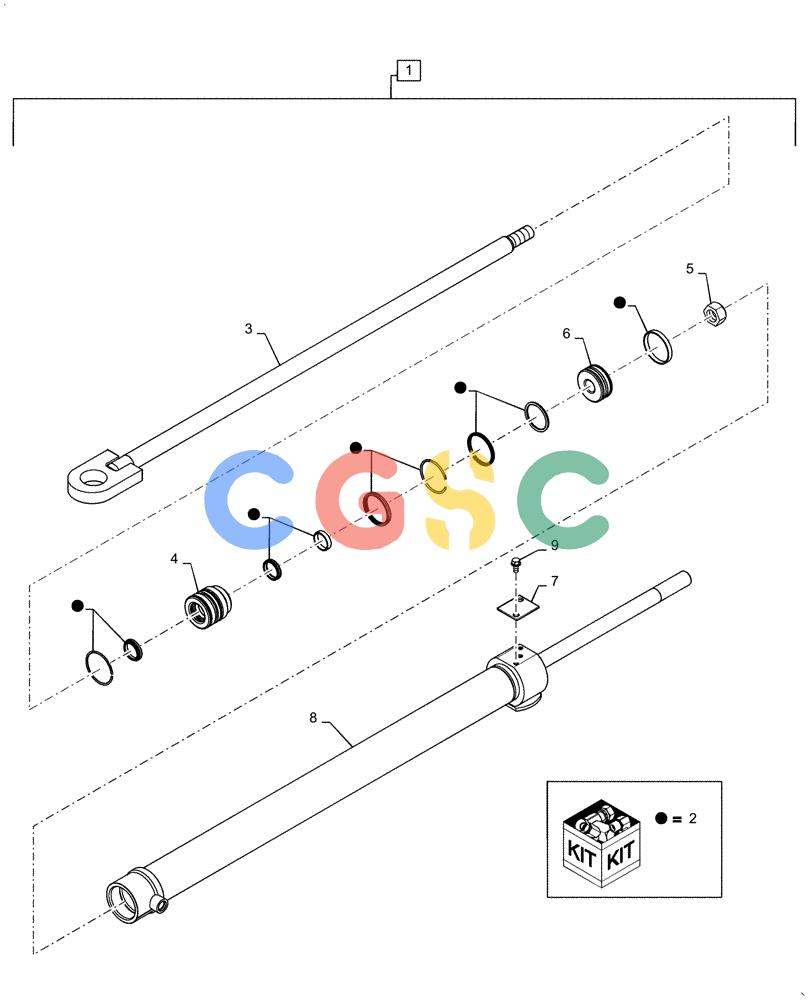

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (35.540.AI[02]) - VAR - 726813 - HYDRAULIC BALE DENSITY CYLINDERS, YFN188618 AND PRIOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
425 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84549526
|
[1] |
HYDRAULIC CYLINDER
|
NH
Hydraulic, Bale Tension, RH, Roll-Belt 550
|
| 1. |
47624451
|
[1] |
HYDRAULIC CYLINDER
|
NH
Hydraulic, Bale Tension, LH
|
| 2. |
47624424
|
[1] |
SEAL KIT
|
NH
Components are NSS
|
| 3. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Rod
|
| 4. |
47631221
|
[1] |
CYLINDER HEAD
|
NH
Use with Cylinder 84549526
|
| 4. |
47628809
|
[1] |
CYLINDER HEAD
|
NH
Use with Cylinder 47624451
|
| 5. |
87629
|
[1] |
NUT,5/8"-11, GB
|
GI
Superseded by part number: 9602227
|
| 9. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
5/16" x .0.50" Flange Bolt
|
