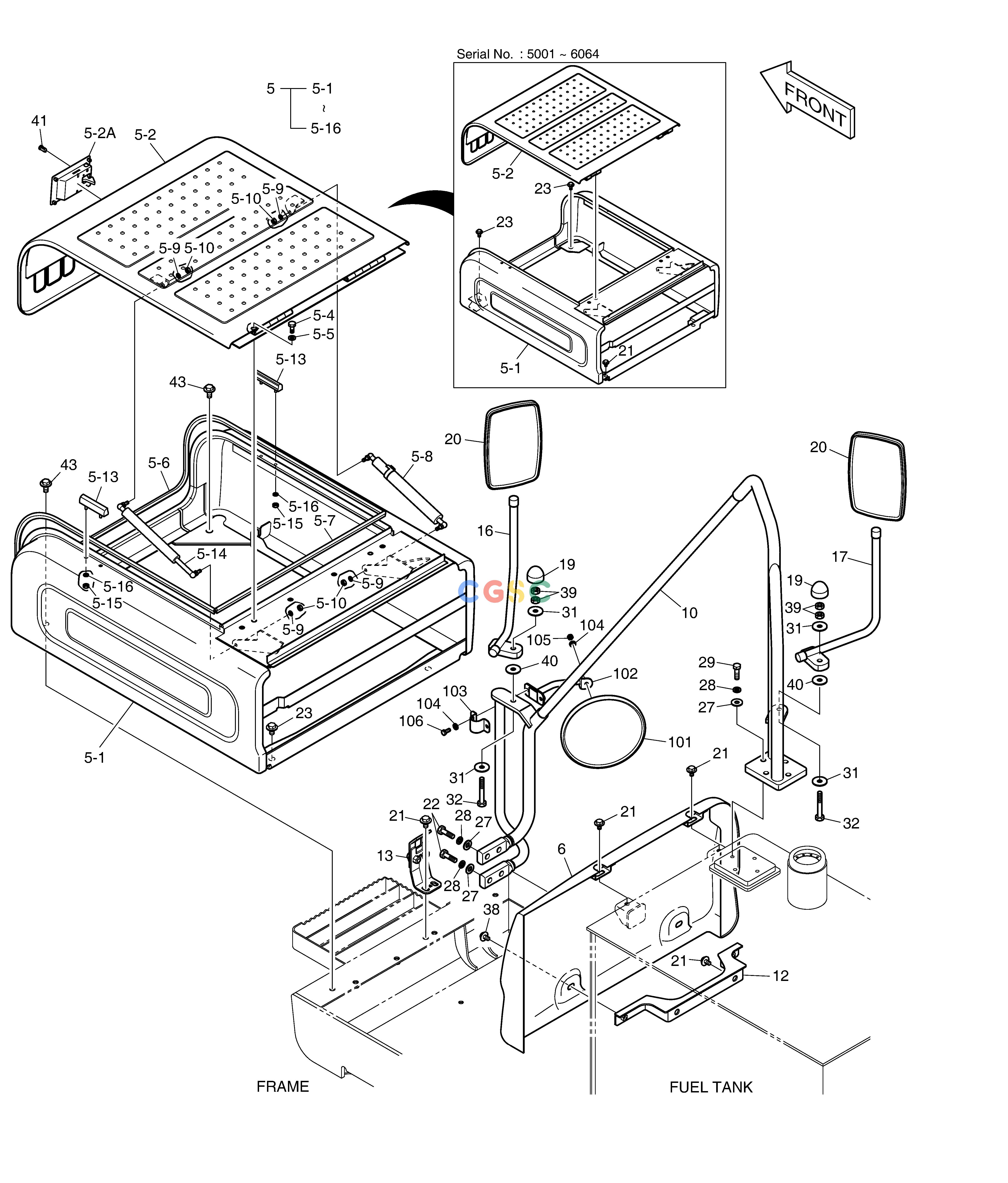

斗山零件查询BATTERY COVER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
812 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005229Q
|
[-] |
COVER ASS'Y
|
|
| -. |
110508-00233
|
[-] |
|
|
| 10. |
K1013266B
|
[1] |
STAY
|
|
| 101. |
K1041643
|
[1] |
MIRROR
|
|
| 102. |
101582-00094
|
[1] |
|
|
| 103. |
K1054803
|
[1] |
|
|
| 104. |
2114-1898D2
|
[3] |
WASHER
|
|
| 105. |
2121-1311D2
|
[1] |
NUT
|
|
| 106. |
2120-2166D5
|
[2] |
BOLT
|
|
| 12. |
K1002613A
|
[1] |
BRACKET
|
|
| 13. |
195-02624C
|
[1] |
BRACKET
|
|
| 16. |
K1038110A
|
[1] |
STAY,MIRROR
|
|
| 17. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 19. |
161-00580
|
[2] |
CAP,RUBBER
|
|
| 20. |
K1040606
|
[2] |
MIRROR,SIDE
|
|
| 21. |
DS0025015
|
[8] |
BOLT
|
|
| 21. |
DS0025015
|
[6] |
BOLT
|
|
| 22. |
S0560666
|
[4] |
BOLT
|
|
| 23. |
DS0025027
|
[2] |
BOLT
|
|
| 27. |
2114-1154
|
[8] |
WASHER
|
|
| 28. |
S5102703
|
[8] |
WASHER
|
|
| 29. |
S0560566
|
[4] |
BOLT
|
|
| 31. |
2114-1058D68
|
[4] |
WASHER
|
|
| 32. |
S0561066
|
[2] |
BOLT
|
|
| 38. |
DS0025014
|
[2] |
BOLT
|
|
| 39. |
S4012733
|
[4] |
NUT
|
|
| 40. |
2114-1058D54
|
[2] |
WASHER
|
|
| 41. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 43. |
DS0025025
|
[2] |
BOLT
|
|
| 5. |
K1045961
|
[1] |
BATTERY COVER ASS'Y
|
K1045961C
|
| 5. |
K1045961C
|
[1] |
BATTERY COVER ASS'Y
|
110503-00009
|
| 5. |
110503-00009
|
[1] |
|
110503-00009A
|
| 5. |
110503-00009A
|
[1] |
|
110503-00009B
|
| 5. |
110503-00009B
|
[1] |
|
|
| 5-1. |
NA00394
|
[1] |
COVER
|
|
| 5-10. |
S4012533
|
[4] |
NUT
|
|
| 5-13. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
|
| 5-14. |
DS1001060
|
[1] |
SPRING;GAS
|
|
| 5-15. |
S4012333
|
[4] |
NUT
|
|
| 5-16. |
S5102303
|
[4] |
. WASHER
|
|
| 5-2. |
K1045962
|
[1] |
COVER
|
K1045962A
|
| 5-2. |
K1045962A
|
[1] |
COVER
|
110503-00007
|
| 5-2. |
110503-00007
|
[1] |
|
|
| 5-2. |
110503-00007A
|
[1] |
|
|
| 5-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 5-4. |
S0512066
|
[4] |
. BOLT
|
|
| 5-5. |
S5010613
|
[4] |
WASHER
|
|
| 5-6. |
NA01025
|
[1] |
|
|
| 5-7. |
NA01025
|
[1] |
|
|
| 5-8. |
K1001968
|
[1] |
CYLINDER;GAS
|
400315-00026
|
| 5-8. |
400315-00026
|
[1] |
. CYLINDER,GAS
|
|
| 5-9. |
S5102503
|
[4] |
. WASHER
|
|
| 6. |
621-02681B
|
[1] |
COVER;TANK
|
|
