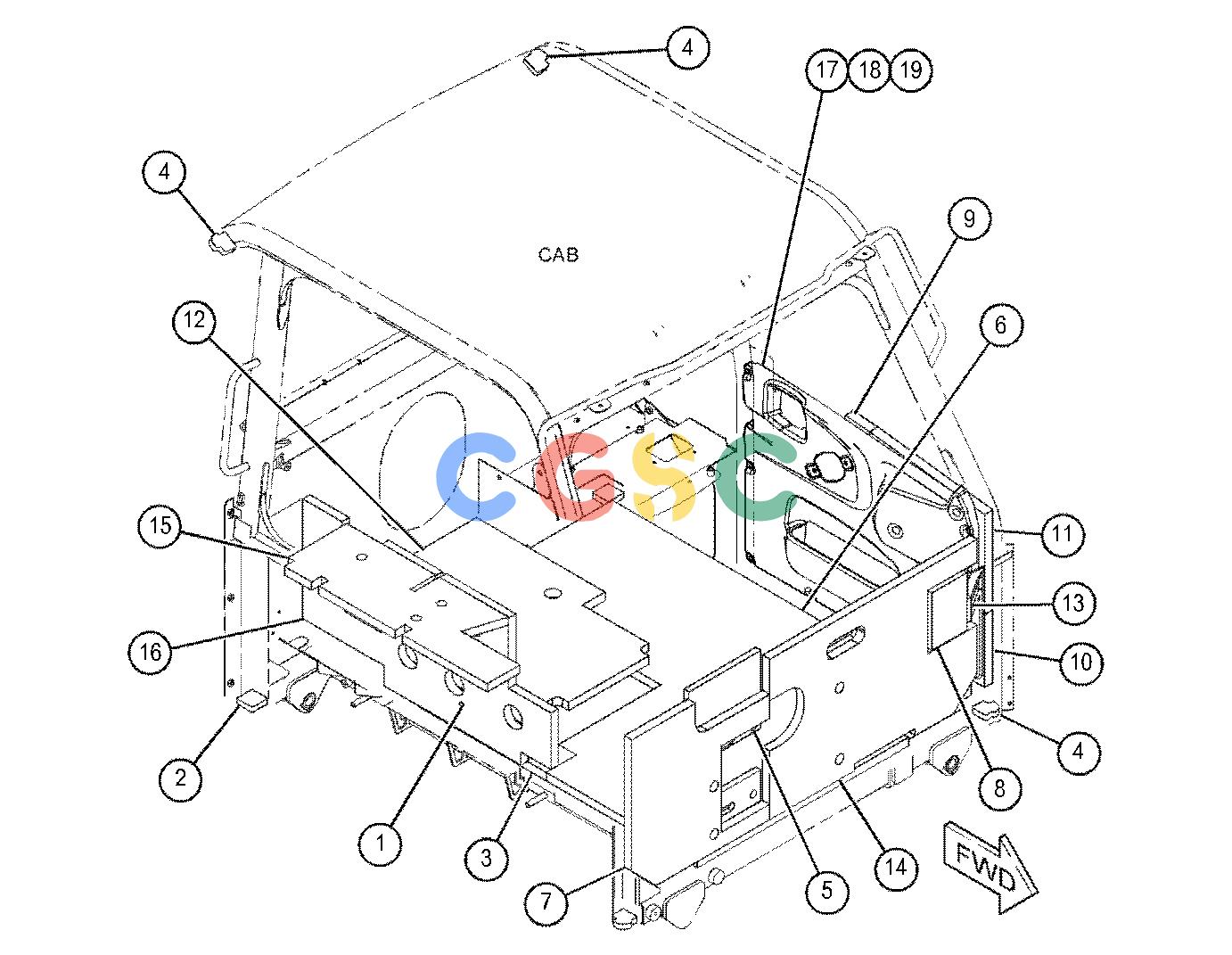

卡特零件查询（725C） 487-8603: MOUNTING GP-CAB
广数供应链运营团队, 14 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 126-2373 | [1] | HANDLE AS-PULL | |
| 2. | 186-0256 | [1] | PLATE AS-COVER | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| 3. | 546-5832 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| 4. | 6V-5217M | [4] | BOLT(M8X1.25X20-MM) | |
| 5. | 8T-0269M | [2] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 6. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 9X-2042M | [2] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 8. | 9X-2044M | [3] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 9. | 3E-6600E | | SEAL(126.5-CM) | |
| 9A. | 3E-6600E | | SEAL(10-CM) | |
| 9B. | 3E-6600E | | SEAL(21-CM) | |
| 10. | 136-7728J | | SEAL(15.9-DM) | |
| 10A. | 136-7728J | | SEAL(5.5-DM) | |
| | E | | ORDER BY THE CENTIMETER |
| | J | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
