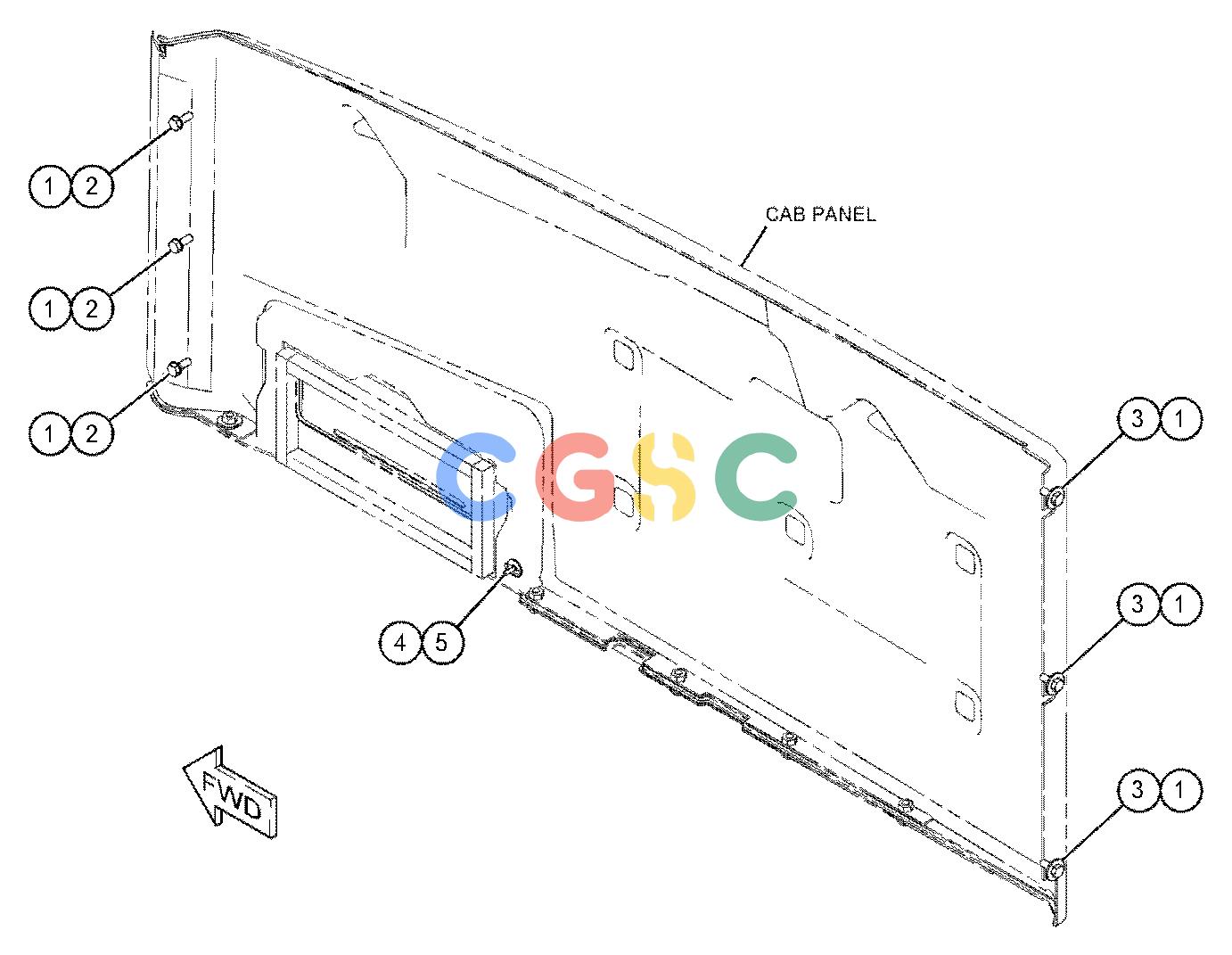

卡特零件查询（725C） 487-8606: MOUNTING GP-CAB
广数供应链运营团队, 14 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6P-2216 | [59] | CAP(PUSH ON) | |
| 2. | 189-6524 | [2] | PLUG | |
| 3. | 198-6081 | [1] | INSULATION | |
| 4. | 198-7409 | [4] | PLUG | |
| 5. | 343-6137 | [1] | TRIM | |
| 6. | 344-2594 | [1] | INSULATION | |
| 7. | 358-8796 | [1] | INSULATION | |
| 8. | 358-8797 | [1] | INSULATION | |
| 9. | 358-8798 | [1] | INSULATION | |
| 10. | 358-8799 | [1] | INSULATION | |
| 11. | 358-8800 | [1] | INSULATION | |
| 12. | 358-8801 | [1] | INSULATION | |
| 13. | 373-3634 | [1] | TRIM | |
| 14. | 373-3665 | [1] | INSULATION | |
| 15. | 444-7065 | [1] | INSULATION | |
| 16. | 444-7066 | [1] | INSULATION | |
| 17. | 160-8718 | [1] | PANEL AS-DOOR | |
| 18. | 114-6658 | [8] | WASHER(6.5X17X1-MM THK) | |
| 19. | 9X-2042M | [8] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | M | | METRIC PART |
