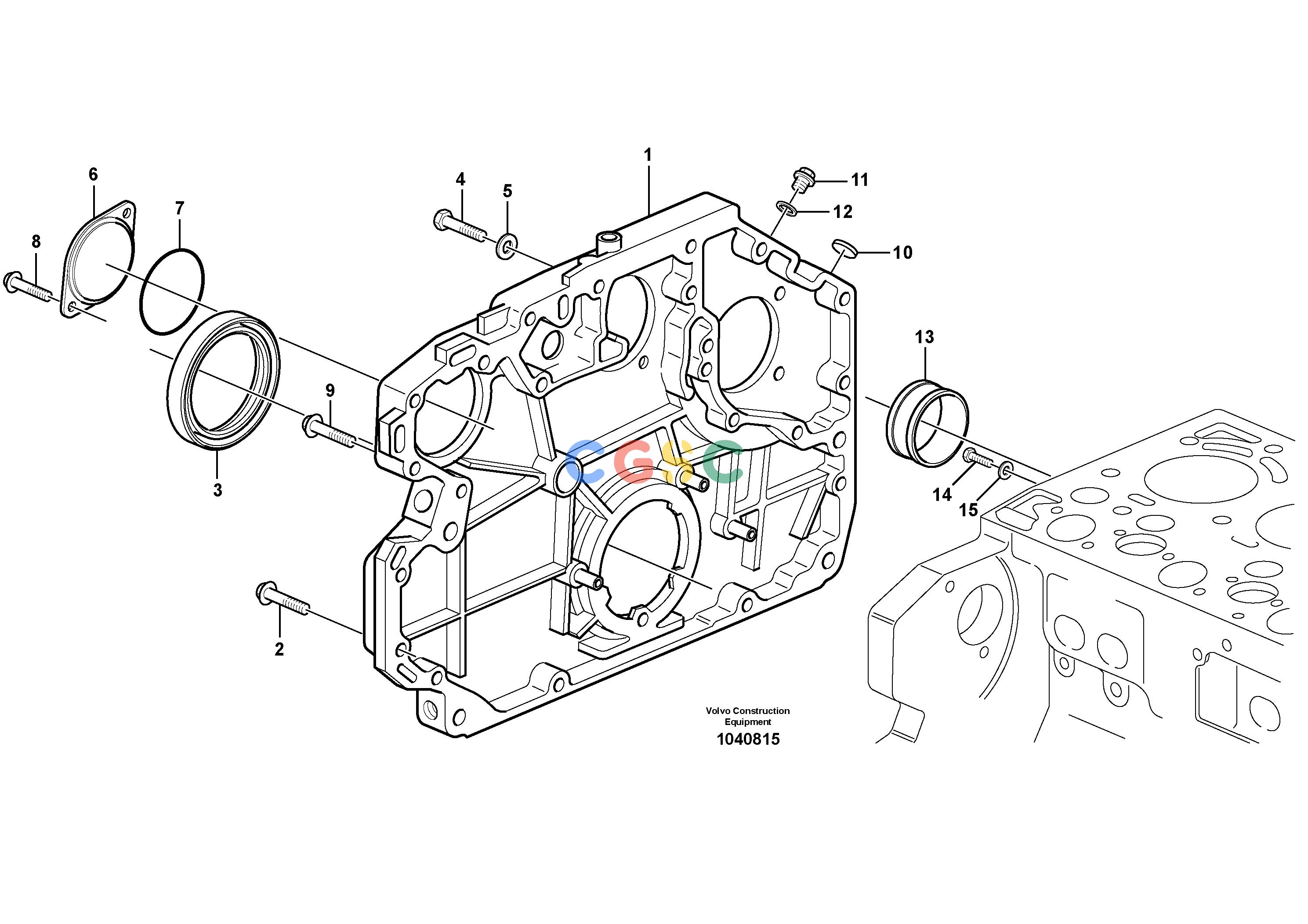

沃尔沃零件查询ECR305C Timing gear casingS/N 110001-8285325-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22039480
|
[1] |
Timing gear casing
|
|
| 2. |
VOE20412324
|
[12] |
Screw
|
|
| 3. |
VOE21486084
|
[1] |
Lip seal
|
|
| 4. |
VOE20534597
|
[2] |
Screw
|
|
| 5. |
VOE13955900
|
[2] |
Washer
|
|
| 6. |
VOE20950063
|
[1] |
Cover
|
|
| 7. |
VOE20405652
|
[1] |
Sealing ring
|
|
| 8. |
VOE20405709
|
[2] |
Screw
|
|
| 9. |
VOE20405709
|
[1] |
Screw
|
|
| 10. |
VOE20405605
|
[1] |
Cover
|
|
| 11. |
VOE20451012
|
[1] |
Screw
|
|
| 12. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 13. |
VOE20794126
|
[1] |
Bushing
|
|
| 14. |
VOE20460101
|
[1] |
Screw
|
|
| 15. |
VOE20460087
|
[1] |
Washer
|
|
