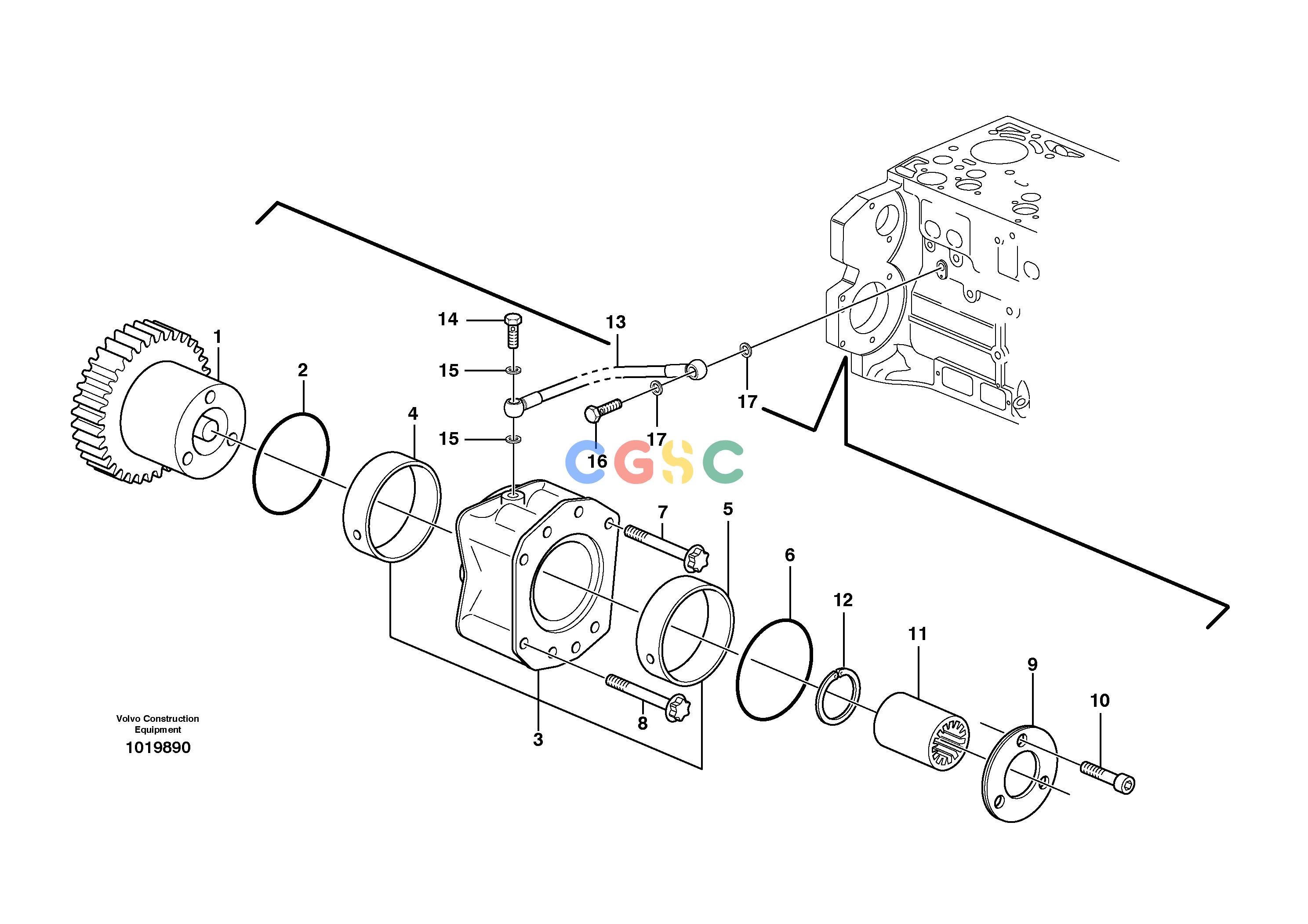

沃尔沃零件查询ECR305C Pump drive power take-offS/N 110001- NoneNoneE PRODAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21249506
|
[1] |
Gear
|
|
| 2. |
VOE20450818
|
[1] |
O-ring
|
|
| 3. |
VOE20450805
|
[1] |
Bearing flange
|
|
| 4. |
VOE20450807
|
[1] |
Bushing
|
|
| 5. |
VOE20450809
|
[1] |
Bushing
|
|
| 6. |
VOE20450819
|
[1] |
O-ring
|
|
| 7. |
VOE22316512
|
[2] |
Six point screw
|
|
| 8. |
VOE21077470
|
[2] |
Hex. socket screw
|
|
| 9. |
VOE20450811
|
[1] |
Thrust washer
|
|
| 10. |
VOE20450822
|
[3] |
Screw
|
|
| 11. |
VOE20459123
|
[1] |
Sleeve
|
|
| 12. |
VOE20450815
|
[1] |
Snap ring
|
|
| 13. |
VOE20450980
|
[1] |
Oil line
|
|
| 14. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 15. |
VOE13947281
|
[2] |
Gasket
|
|
| 16. |
VOE980973
|
[1] |
Hollow screw
|
|
| 17. |
VOE13947621
|
[2] |
Plane gasket
|
|
