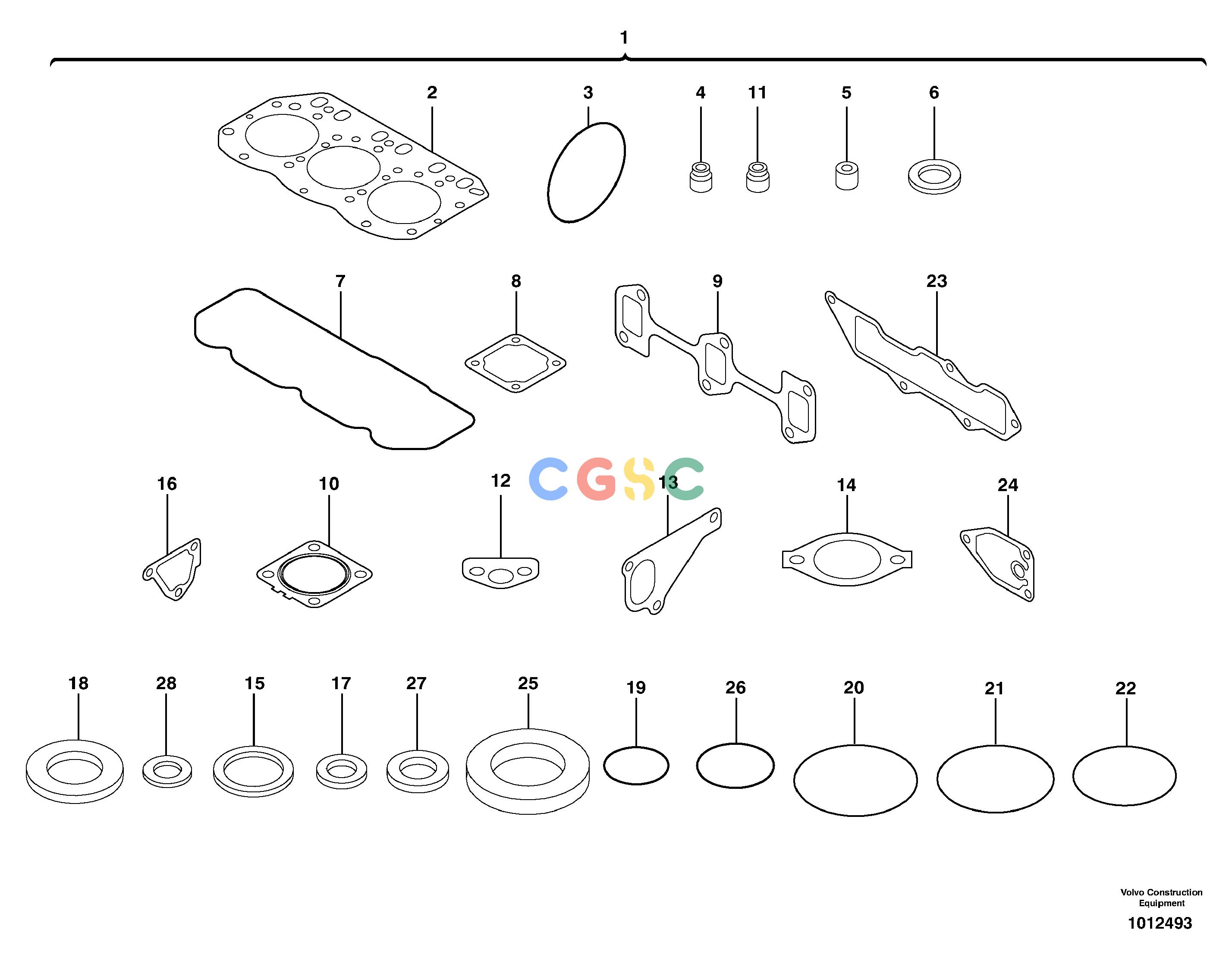

沃尔沃零件查询ECR38 Engine gasket kitTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713774
|
[1] |
Gasket kit
|
|
| 1. |
VOE15079353
|
|
Gasket kit
|
|
| 2. |
VOE11713589
|
[1] |
Cylinder head gasket
|
|
| 3. |
VOE11713305
|
[1] |
O-ring
|
|
| 4. |
VOE11713652
|
[3] |
Seal
|
|
| 5. |
VOE14521532
|
[3] |
Protection
|
|
| 6. |
SA8210-01990
|
[3] |
Seat
|
|
| 6. |
VOE11714381
|
|
Seat
|
|
| 7. |
VOE11713665
|
[1] |
Gasket
|
|
| 8. |
VOE11713674
|
[1] |
Gasket
|
|
| 9. |
VOE11713676
|
[1] |
Gasket
|
|
| 10. |
VOE11713677
|
[1] |
Gasket
|
|
| 11. |
VOE11713651
|
[3] |
Seal
|
|
| 12. |
VOE11713704
|
[1] |
Gasket
|
|
| 13. |
VOE11713729
|
[1] |
Gasket
|
|
| 14. |
VOE11713744
|
[1] |
Gasket
|
|
| 15. |
VOE11713743
|
[1] |
Gasket
|
|
| 16. |
VOE11713733
|
[1] |
Gasket
|
|
| 17. |
VOE11714476
|
[2] |
Sealing washer
|
|
| 18. |
VOE11714478
|
[2] |
Gasket
|
|
| 19. |
VOE11714386
|
[3] |
O-ring
|
|
| 20. |
VOE11714371
|
[2] |
O-ring
|
|
| 21. |
VOE11713626
|
[1] |
O-ring
|
|
| 22. |
VOE11713732
|
[1] |
O-ring
|
|
| 23. |
VOE11713671
|
[1] |
Gasket
|
|
| 24. |
VOE11713703
|
[1] |
Gasket
|
|
| 25. |
VOE11713639
|
[1] |
Seal
|
|
| 26. |
VOE11713621
|
[4] |
O-ring
|
|
| 27. |
VOE11713708
|
[2] |
Seal
|
|
| 28. |
VOE11714477
|
[1] |
Gasket
|
|
