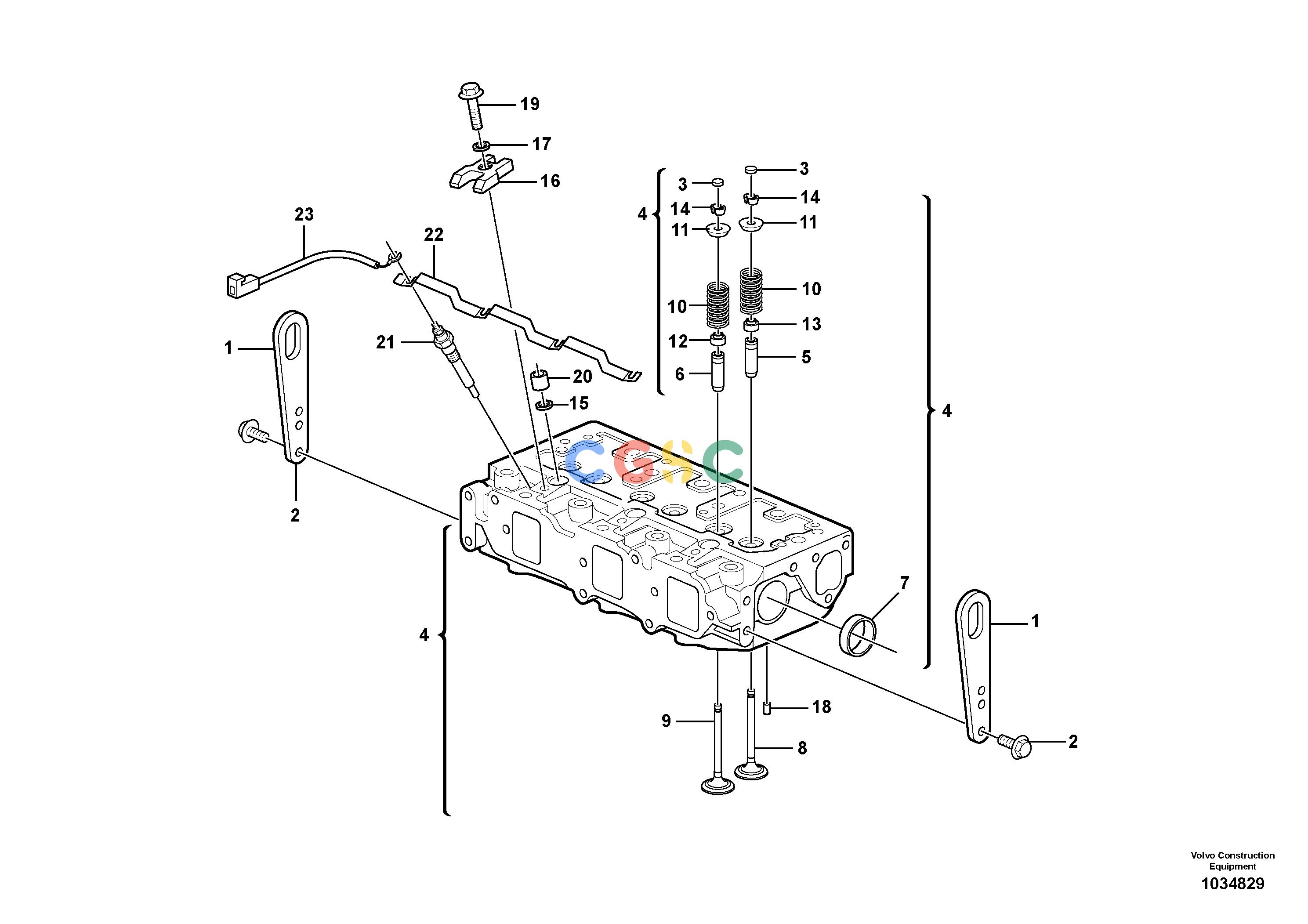

沃尔沃零件查询ECR38 Cylinder headTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714378
|
[2] |
Lifting bracket
|
|
| 2. |
VOE14525410
|
[4] |
Bolt
|
|
| 2. |
VOE11714372
|
|
Bolt
|
|
| 3. |
VOE11713647
|
[6] |
Cap
|
|
| 4. |
VOE11713648
|
[1] |
Cylinder head
|
|
| 4. |
VOE15079667
|
|
Cylinder head
|
|
| 5. |
|
[3] |
Giude
|
|
| 6. |
|
[3] |
Giude
|
|
| 7. |
|
[2] |
Plug
|
|
| 7. |
VOE11714379
|
|
Plug
|
|
| 8. |
VOE11713649
|
[3] |
Valve
|
|
| 8. |
VOE11714709
|
|
Valve
|
|
| 9. |
VOE11713650
|
[3] |
Valve
|
|
| 9. |
VOE15079319
|
|
Exhaust valve
|
|
| 10. |
|
[6] |
Spring
|
|
| 10. |
VOE11714711
|
|
Valve spring
|
|
| 11. |
|
[6] |
Plug
|
|
| 11. |
VOE11714712
|
|
Spring retainer
|
|
| 12. |
VOE11713651
|
[3] |
Seal
|
|
| 13. |
VOE11713652
|
[3] |
Seal
|
|
| 14. |
VOE11713654
|
[6] |
Valve sleeve
|
|
| 15. |
SA8210-08770
|
[3] |
Seat
|
|
| 15. |
VOE11714381
|
|
Seat
|
|
| 16. |
VOE11713653
|
[3] |
Retainer
|
|
| 17. |
VOE11713655
|
[3] |
Washer
|
|
| 18. |
VOE11714387
|
[2] |
Spring pin
|
|
| 19. |
VOE11714281
|
[3] |
Flange screw
|
|
| 19. |
VOE11714281
|
|
Flange screw
|
|
| 20. |
VOE14521532
|
[3] |
Protection
|
|
| 21. |
VOE15079818
|
|
Glow plug
|
|
| 22. |
VOE15080426
|
|
Connector
|
|
| 23. |
VOE15079816
|
|
Wire
|
|
