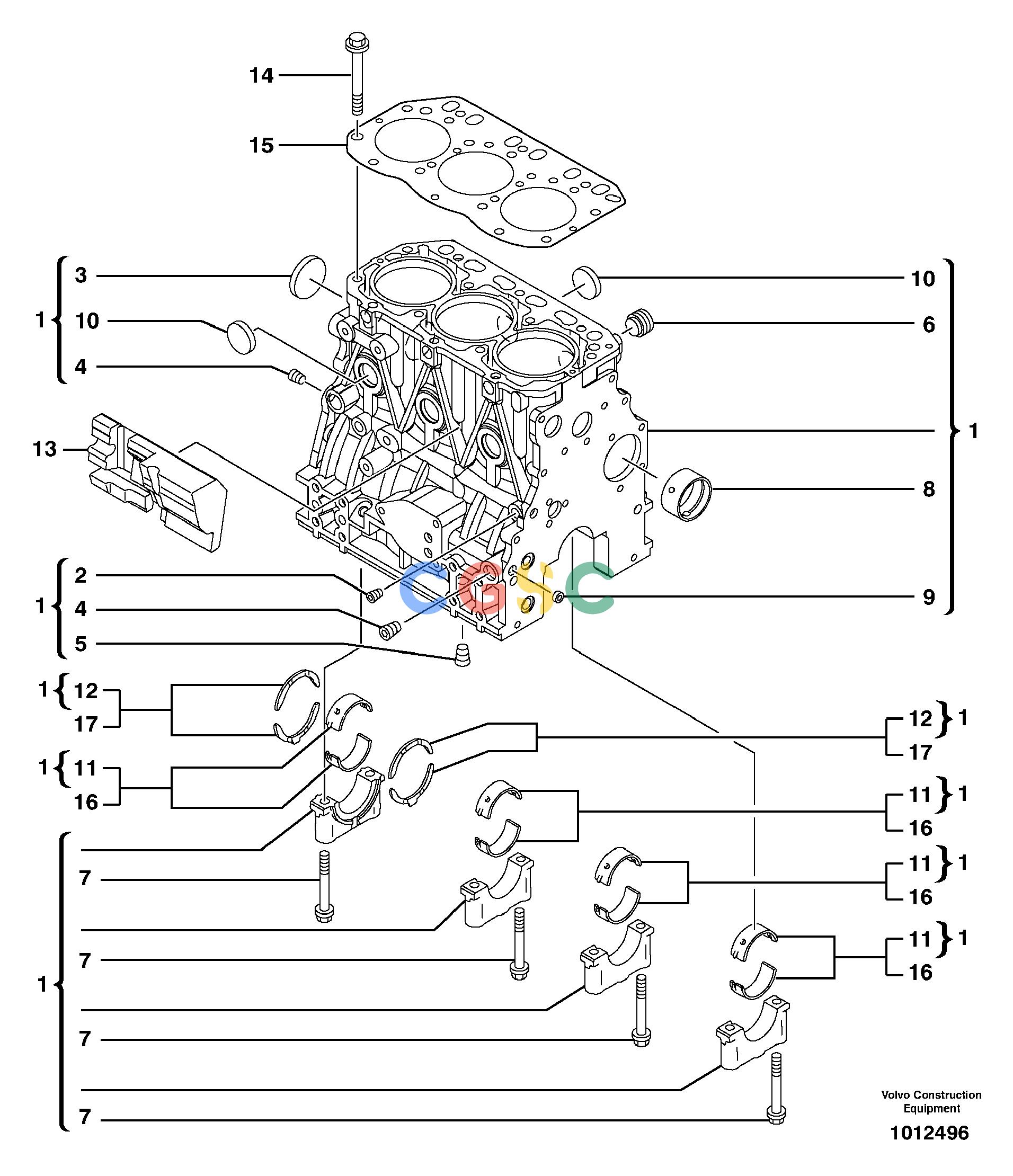

沃尔沃零件查询ECR38 Cylinder blockTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
188 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713558
|
[1] |
Cylinder block
|
|
| 2. |
VOE11713317
|
[1] |
Plug
|
|
| 3. |
VOE11713559
|
[1] |
Plug
|
|
| 4. |
VOE11713320
|
[2] |
Plug
|
|
| 5. |
VOE11713320
|
[1] |
Plug
|
|
| 6. |
VOE11713560
|
[1] |
Plug
|
|
| 7. |
VOE11713561
|
[8] |
Bolt
|
|
| 8. |
VOE11713562
|
[1] |
Camshaft bushing
|
|
| 8. |
|
|
Bushing
|
|
| 9. |
VOE11713329
|
[2] |
Plug
|
|
| 10. |
VOE11714369
|
[6] |
Plug
|
|
| 11. |
VOE15082457
|
[4] |
Bearing kit
|
STD SZ
|
| 11. |
|
|
Bearing Bushing
|
STD SZ
|
| 12. |
VOE11713573
|
[2] |
Thrust bearing
|
STD SZ
|
| 12. |
|
|
Thrust Bearing
|
|
| 13. |
VOE11713587
|
[1] |
Spacer
|
|
| 14. |
VOE11713588
|
[14] |
Flange screw
|
|
| 15. |
VOE11713589
|
[1] |
Cylinder head gasket
|
|
| 16. |
VOE11713590
|
[4] |
Main bearing shell
|
0,25mm/0.0098in
|
| 16. |
|
|
Bearing Bushing
|
0,25mm/0.0098in
|
| 17. |
VOE11713591
|
[1] |
Thrust washer
|
0,25mm/0.0098in
|
| 17. |
|
|
Thrust Bearing
|
0,25mm/0.0098in
|
