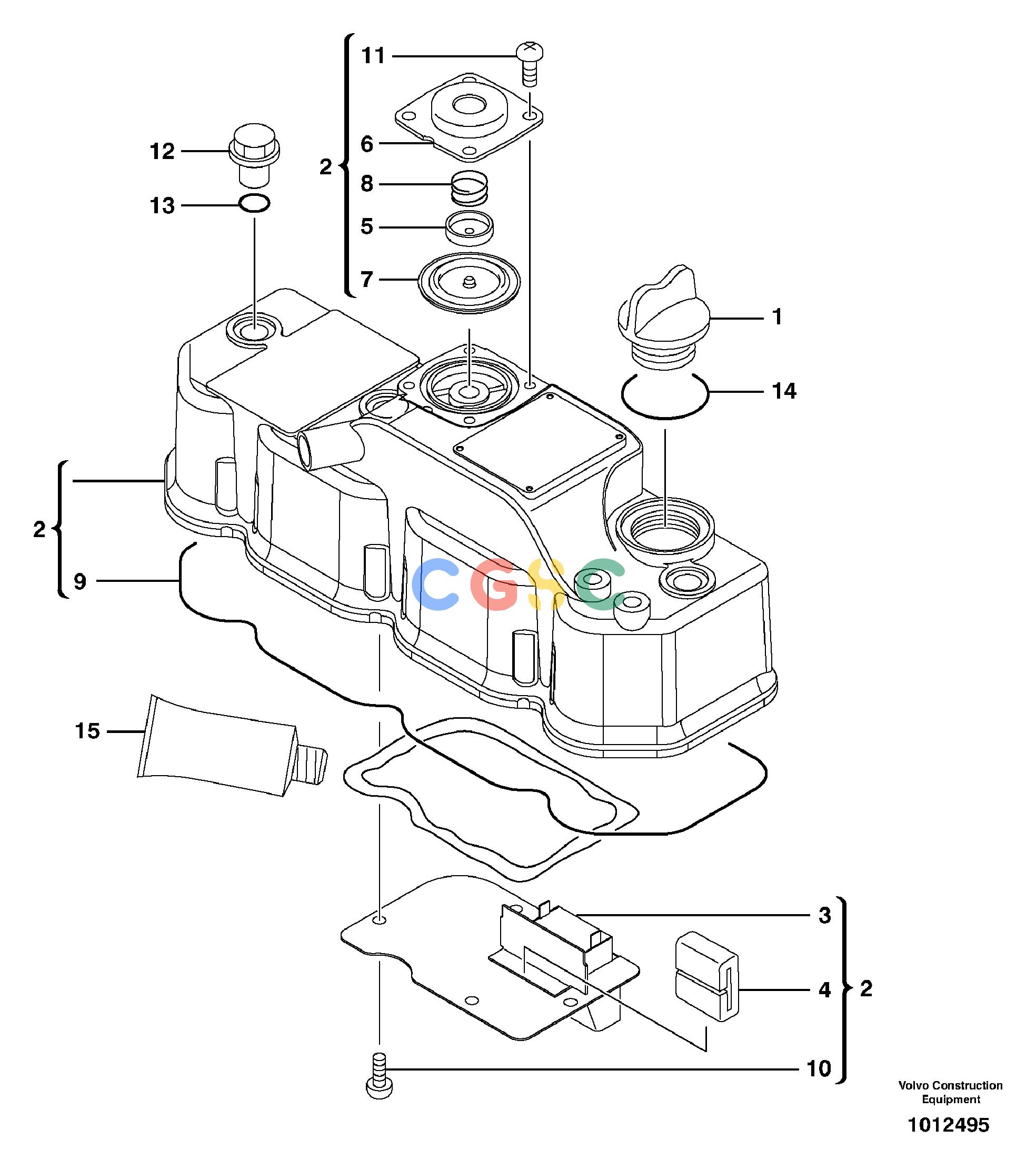

沃尔沃零件查询ECR38 Valve coverTYPE 602602.10151-15602421NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714383
|
[1] |
Cap
|
|
| 2. |
VOE11713656
|
[1] |
Valve cover
|
|
| 3. |
VOE11713657
|
[1] |
Plate
|
|
| 4. |
VOE11713658
|
[1] |
Baffle
|
|
| 5. |
VOE11713659
|
[1] |
Plate
|
|
| 6. |
VOE11713660
|
[1] |
Cover
|
|
| 6. |
VOE11714718
|
|
Cover
|
|
| 7. |
VOE11713661
|
[1] |
Diaphragm
|
|
| 8. |
VOE11713662
|
[1] |
Spring
|
|
| 8. |
VOE11714719
|
|
Spring
|
|
| 9. |
VOE11713665
|
[1] |
Gasket
|
|
| 10. |
SA8210-08850
|
[4] |
Screw
|
|
| 10. |
VOE11714720
|
|
Screw
|
|
| 11. |
SA8210-08850
|
[4] |
Screw
|
|
| 11. |
VOE11714720
|
|
Screw
|
|
| 12. |
VOE11714385
|
[3] |
Flange cap nut
|
|
| 13. |
VOE11714386
|
[3] |
O-ring
|
|
| 14. |
VOE11714371
|
[1] |
O-ring
|
|
| 15. |
VOE14543857
|
[1] |
Gasket
|
|
