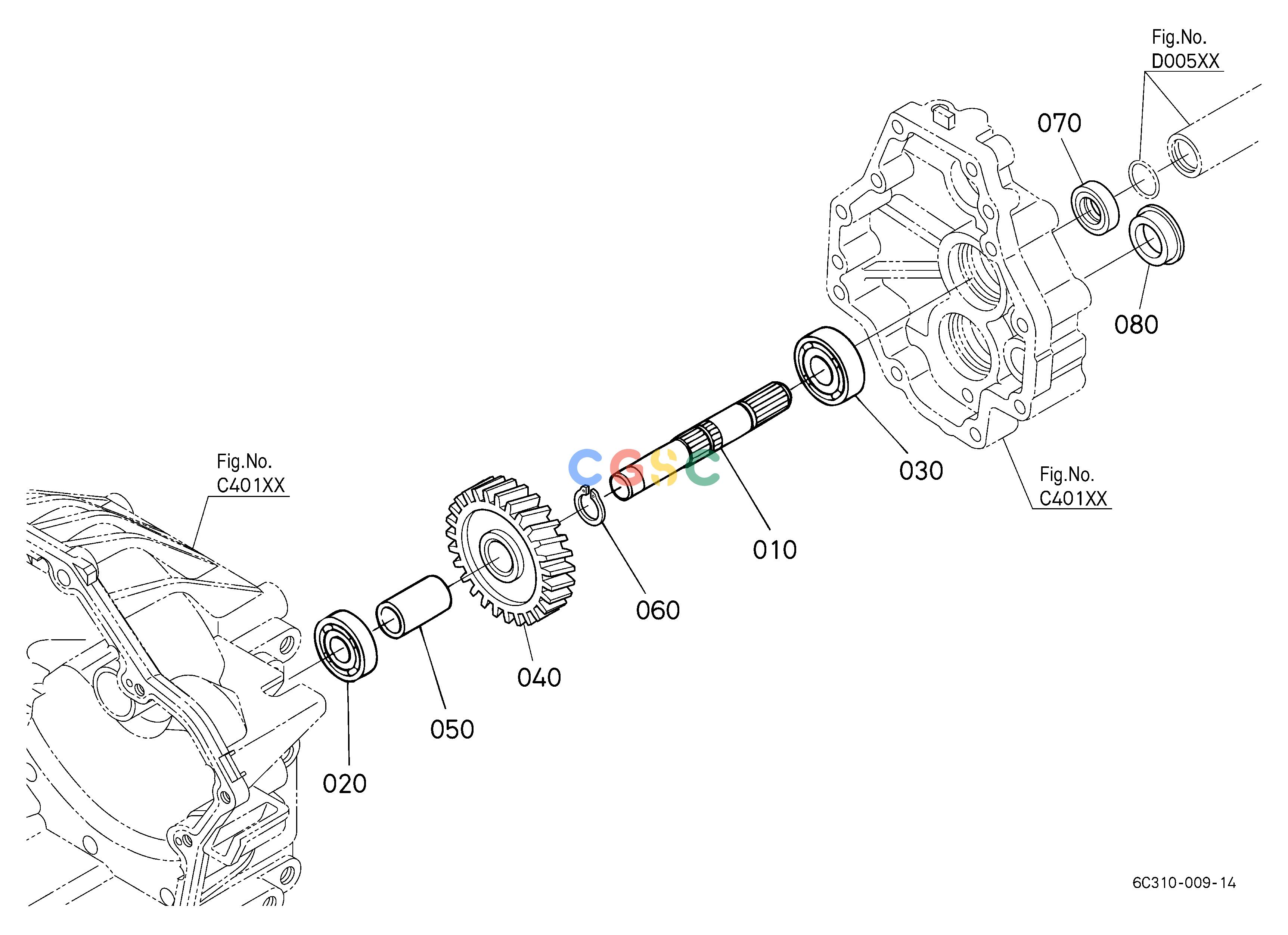

久保田零件查询D00200 OUTPUT SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04013613
|
[1] |
SHAFT,FRONT
|
0.6160(lbs); 0.280
|
| 020. |
0810106203
|
[1] |
BEARING,BALL
|
0.1386(lbs); 0.063
|
| 020. |
6A70016540
|
[1] |
BEARING,BALL K6203
|
0.1430(lbs); 0.065
|
| 030. |
5230016180
|
[1] |
BEARING
|
0.2266(lbs); 0.103
|
| 030. |
6A70016560
|
[1] |
BEARING,BALL K6204HL1
|
0.2200(lbs); 0.100
|
| 040. |
6C04013620
|
[1] |
GEAR,SHAFT
|
0.8580(lbs); 0.390
|
| 050. |
6C04013670
|
[1] |
COLLAR
|
0.0880(lbs); 0.040
|
| 060. |
0461200200
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6636339560
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 080. |
6A10012180
|
[1] |
PLUG
|
0.0484(lbs); 0.022
|
