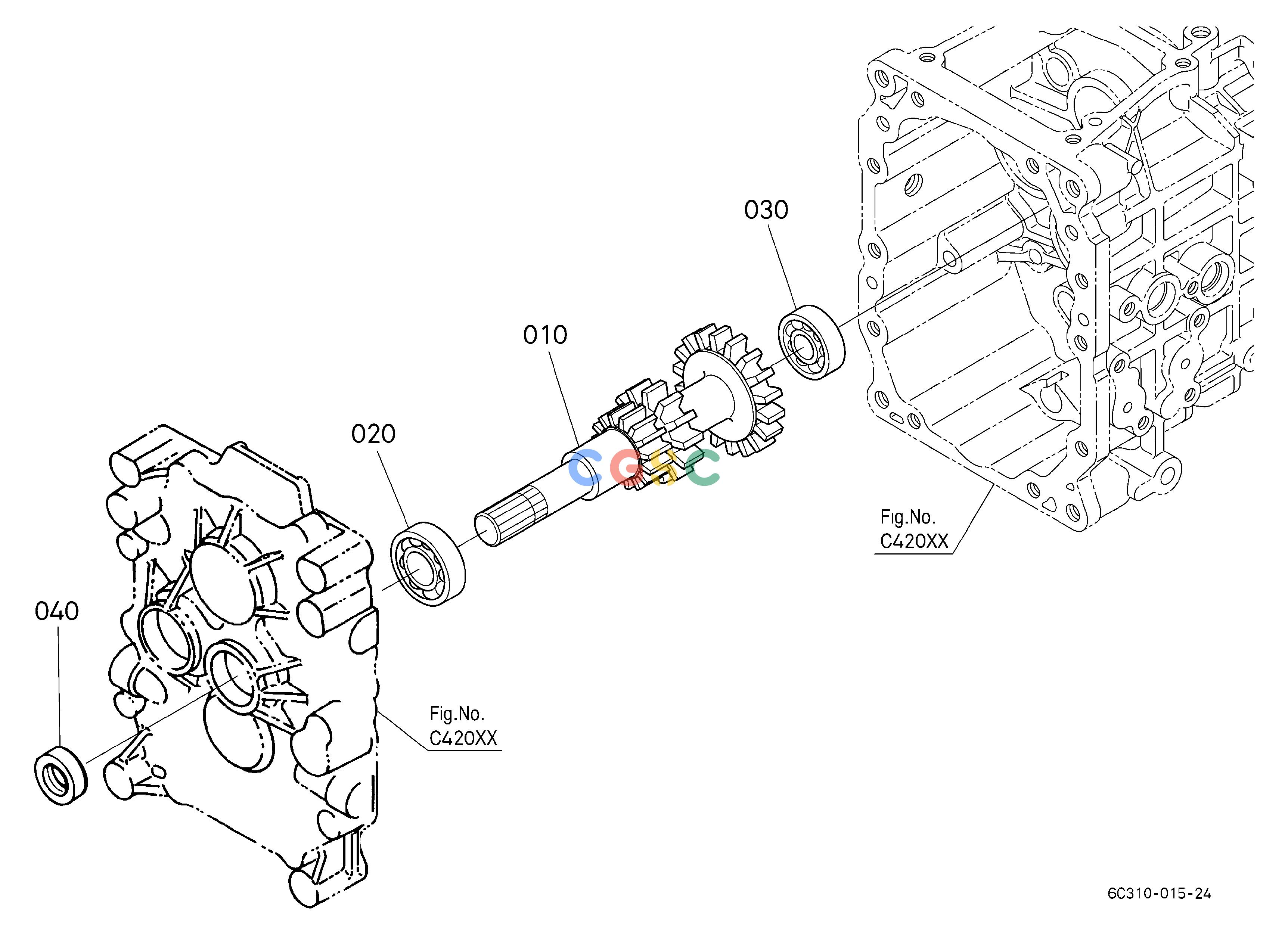

久保田零件查询D09200 SECOND SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
341 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C31014210
|
[1] |
GEAR-SHAFT
|
2.5960(lbs); 1.180
|
| 010. |
6C31014213
|
[1] |
GEAR-SHAFT
|
2.5960(lbs); 1.180
|
| 020. |
6A70016550
|
[1] |
BEARING,BALL K6204
|
0.2200(lbs); 0.100
|
| 020. |
0810106204
|
[1] |
BEARING,BALL
|
0.2244(lbs); 0.102
|
| 030. |
6A70016610
|
[1] |
BEARING,BALL K6302
|
0.1760(lbs); 0.080
|
| 030. |
0810106302
|
[1] |
BEARING,BALL
|
0.1848(lbs); 0.084
|
| 040. |
0950020358
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 040. |
6636339560
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
