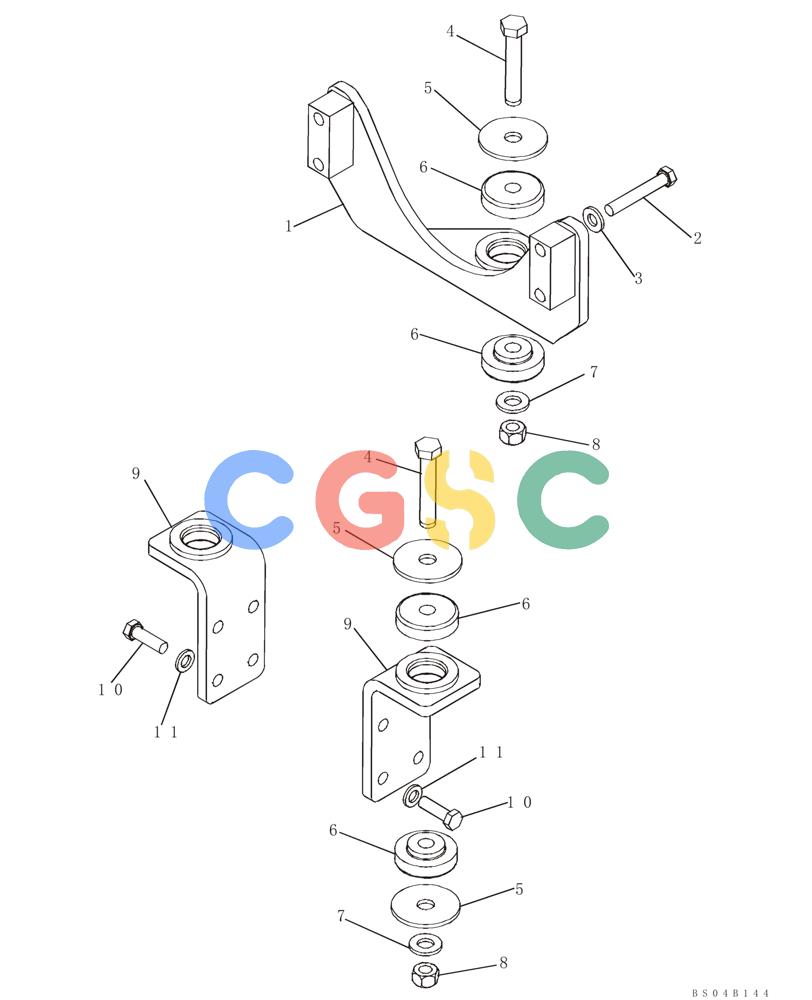

纽荷兰零件查询(D85) - CRAWLER DOZER - NA (1/06-) (02-01) - ENGINE - MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
370 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87432921 | [1] | ENGINE MOUNT | CASMount, Engine, Front |
| 2. | A171690 | [4] | BOLT | CASM10 x 85; 10.9 |
| 3. | 496-21053 | [4] | WASHER,17/32" x 1 1/16" x .134" | CAS Superseded by part number: 86624188 |
| 4. | 106-91056 | [3] | LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5 | CAS |
| 5. | R49597 | [5] | WASHER,17.5mm ID x 70mm OD x 4.5mm Thk | CAS |
| 6. | R49482 | [6] | RUBBER MOUNTING | CAS |
| 7. | 496-21066 | [3] | WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk | CAS Superseded by part number: 5122064 |
| 8. | 425-1010 | [3] | NUT,5/8"-11, G5 | CAS Superseded by part number: 280374 |
| 9. | 87432310 | [2] | ENGINE MOUNT | CASMount, Engine, Rear |
| 10. | 627-12040 | [8] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 11. | 896-11012 | [8] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
