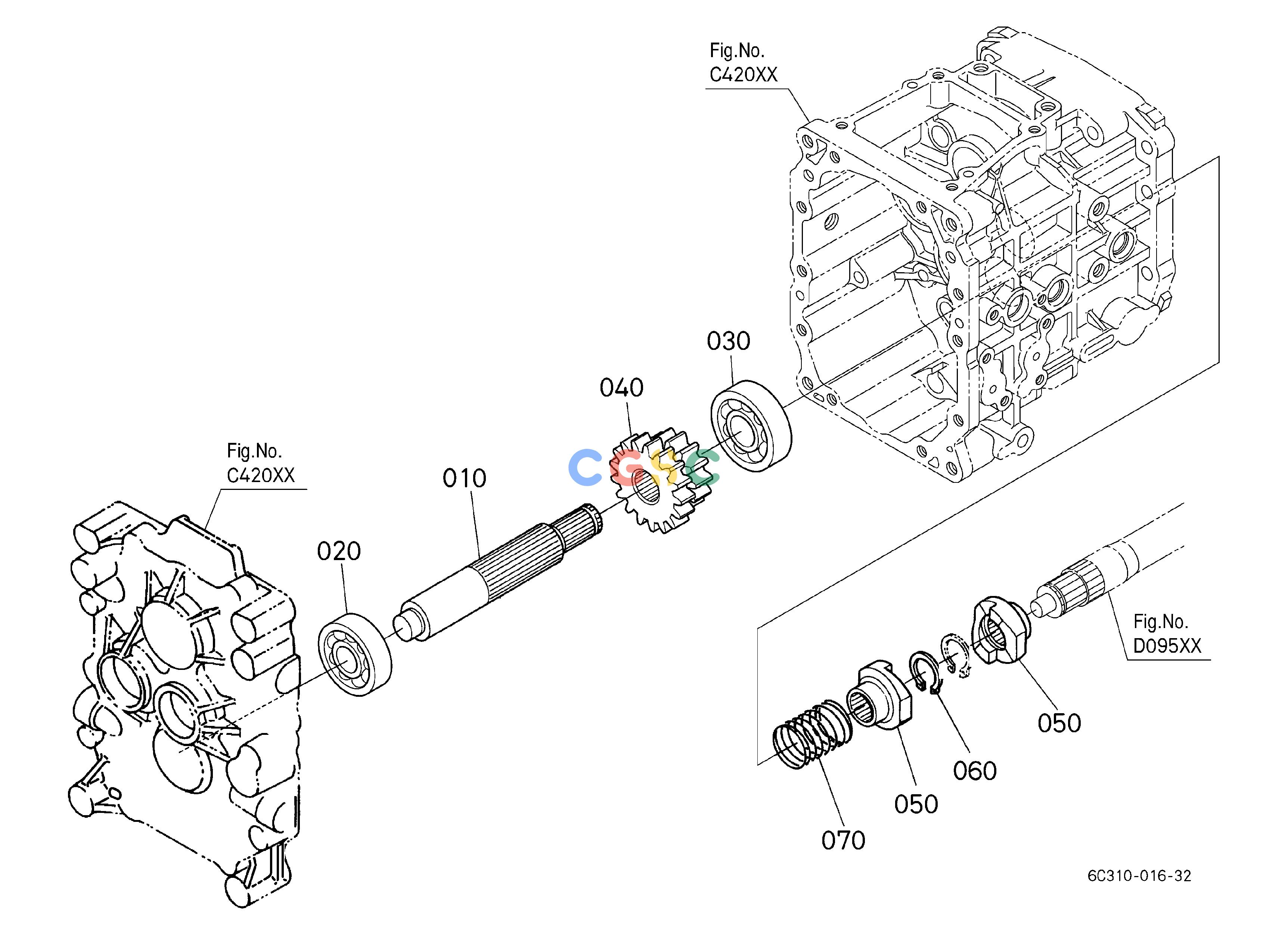

久保田零件查询D09300 THIRD SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C12014310
|
[1] |
SHAFT
|
1.1000(lbs); 0.500
|
| 020. |
0810106303
|
[1] |
BEARING,BALL
|
0.2464(lbs); 0.112
|
| 020. |
T205023470
|
[1] |
BEARING,BALL
|
0.2530(lbs); 0.115
|
| 030. |
0810106304
|
[1] |
BEARING,BALL
|
0.3212(lbs); 0.146
|
| 030. |
T205023410
|
[1] |
BEARING,BALL
|
0.3300(lbs); 0.150
|
| 040. |
6C30014320
|
[1] |
GEAR
|
1.0340(lbs); 0.470
|
| 050. |
6C04014520
|
[2] |
CAM,ONE WAY CLUTCH
|
0.3168(lbs); 0.144
|
| 060. |
0461200190
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6C04014530
|
[1] |
SPRING
|
0.0198(lbs); 0.009
|
