斗山零件查询ELECTRIC PARTS - ENGINE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

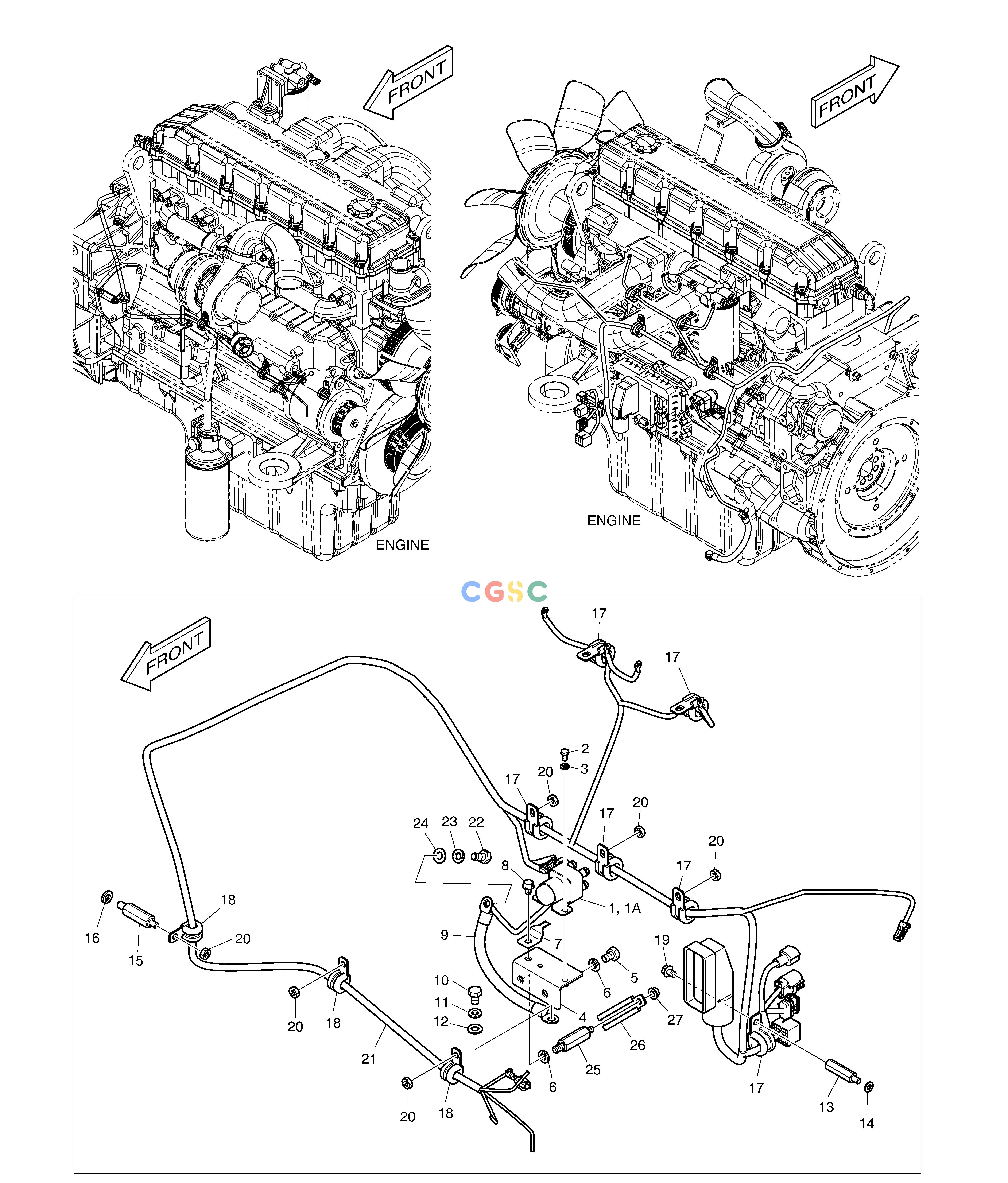

K1009364C
|
[-] |
ELECTRIC PARTS-ENGINE
|
|
| 1. |
544-00007
|
[1] |
RELAY;PREHEAT
|
|
| 10. |
S0511853
|
[1] |
BOLT
|
|
| 11. |
S5102603
|
[1] |
. WASHER
|
|
| 12. |
S5010613
|
[1] |
WASHER
|
|
| 13. |
2120-2187
|
[1] |
BOLT
|
|
| 14. |
S5102503
|
[1] |
. WASHER
|
|
| 15. |
2120-2159
|
[1] |
BOLT
|
|
| 16. |
S5102603
|
[1] |
. WASHER
|
|
| 17. |
124-00208D3
|
[6] |
CLIP
|
|
| 18. |
124-00208D2
|
[3] |
CLAMP
|
|
| 19. |
K1001029
|
[1] |
BOLT
|
|
| 1A. |
527-00005
|
[1] |
FUSE;PREHEAT RELAY
|
|
| 2. |
S0504453
|
[2] |
BOLT
|
|
| 20. |
2121-1305
|
[6] |
NUT
|
|
| 21. |
K1047914
|
[1] |
HARNESS;ENGINE
|
|
| 22. |
S0511953
|
[1] |
BOLT
|
|
| 23. |
S5102603
|
[1] |
. WASHER
|
|
| 24. |
S5010613
|
[1] |
WASHER
|
|
| 25. |
2120-2159
|
[1] |
BOLT
|
|
| 26. |
124-00208D6
|
[1] |
CLIP
|
|
| 27. |
2121-1305
|
[1] |
NUT
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 4. |
195-02676C
|
[1] |
BRACKET;RELAY
|
|
| 5. |
S0511653
|
[1] |
BOLT
|
|
| 6. |
S5102603
|
[2] |
. WASHER
|
|
| 7. |
2197-1661
|
[1] |
BRACKET
|
|
| 8. |
K1001029
|
[1] |
BOLT
|
|
| 9. |
553-00001D2
|
[1] |
CABLE;ENGINE EARTH
|
|
