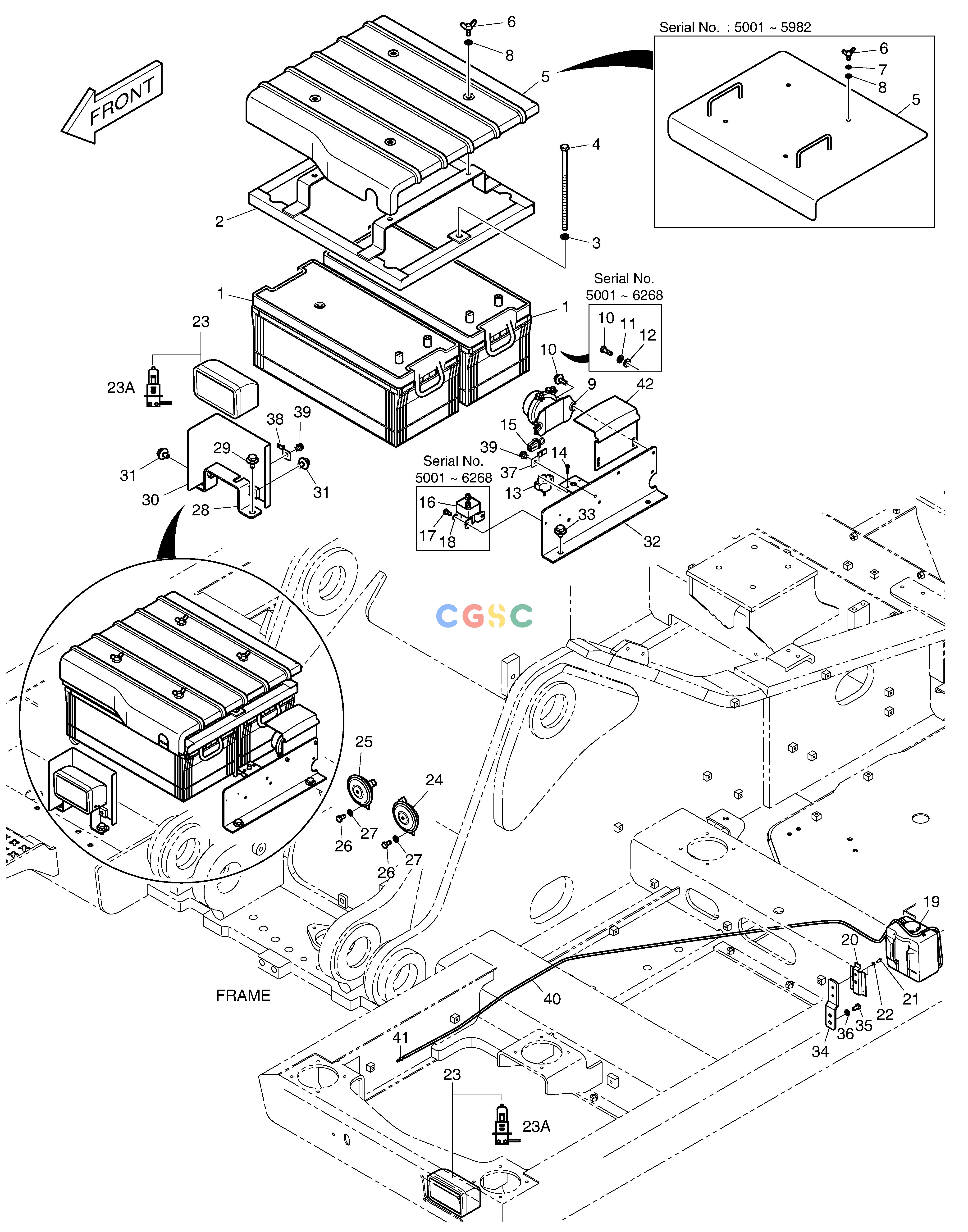

斗山零件查询ELECTRIC PARTS - RELATED DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
421 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1009362B
|
[-] |
ELECTRIC PARTS-RELATED
|
|
| -. |
300619-00574
|
[-] |
|
|
| 1. |
2506-6008
|
[2] |
BATTERY
|
|
| 10. |
S0509053
|
[2] |
. BOLT
|
|
| 10. |
DS0025039
|
[2] |
BOLT;SET
|
|
| 11. |
S5102503
|
[2] |
. WASHER
|
|
| 12. |
S5010513
|
[2] |
WASHER
|
|
| 13. |
2527-9004
|
[1] |
BREAKER;CIRCUIT
|
|
| 14. |
2120-1354
|
[2] |
SCREW
|
|
| 15. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 16. |
2544-1022
|
[1] |
RELAY;STARTER
|
|
| 17. |
S0504453
|
[2] |
BOLT
|
|
| 18. |
S5102303
|
[2] |
. WASHER
|
|
| 19. |
K1000789
|
[1] |
TANK;RESERVE
|
|
| 2. |
K1002860B
|
[1] |
BRACKET
|
|
| 20. |
2195-1534
|
[1] |
BRACKET
|
|
| 21. |
S0504453
|
[2] |
BOLT
|
|
| 22. |
S5102303
|
[2] |
. WASHER
|
|
| 23. |
534-00085
|
[2] |
LAMP
|
|
| 23A. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 24. |
516-00014
|
[1] |
HORN;HIGH
|
300726-00002
|
| 24. |
300726-00002
|
[1] |
HORN,HIGH
|
|
| 25. |
516-00015
|
[1] |
HORN;LOW
|
300726-00003
|
| 25. |
300726-00003
|
[1] |
HORN,LOW
|
|
| 26. |
S0508666
|
[2] |
BOLT
|
|
| 27. |
S5102503
|
[2] |
. WASHER
|
|
| 28. |
195-02622C
|
[1] |
BRACKET
|
|
| 29. |
DS0025022
|
[2] |
BOLT
|
|
| 3. |
S5102603
|
[2] |
. WASHER
|
|
| 30. |
621-02643C
|
[1] |
PLATE
|
|
| 31. |
DS0025013
|
[2] |
BOLT
|
|
| 32. |
191-02986C
|
[1] |
PLATE
|
|
| 33. |
DS0025013
|
[2] |
BOLT
|
|
| 34. |
K1007668
|
[1] |
BRACKET
|
|
| 35. |
S0508666
|
[2] |
BOLT
|
|
| 36. |
S5102503
|
[2] |
. WASHER
|
|
| 37. |
2197-1660
|
[1] |
BRACKET
|
|
| 38. |
2197-1661
|
[1] |
BRACKET
|
|
| 39. |
K1001029
|
[2] |
BOLT
|
|
| 4. |
2120-1036D12
|
[2] |
BOLT M10X1.5X240
|
|
| 40. |
4185-1777
|
[1] |
HOSE;WATER
|
|
| 41. |
2415-1018
|
[1] |
ADAPTER
|
|
| 42. |
110508-04839
|
[1] |
COVER,RELAY
|
|
| 5. |
621-03068C
|
[1] |
COVER
|
K1051804
|
| 5. |
K1051804
|
[1] |
COVER
|
|
| 6. |
S3050883
|
[4] |
BOLT;WING M8X1.25X20
|
|
| 7. |
S5102503
|
[4] |
. WASHER
|
|
| 8. |
S5010513
|
[4] |
WASHER
|
|
| 9. |
2544-9024
|
[1] |
RELAY;BATTERY
|
|
