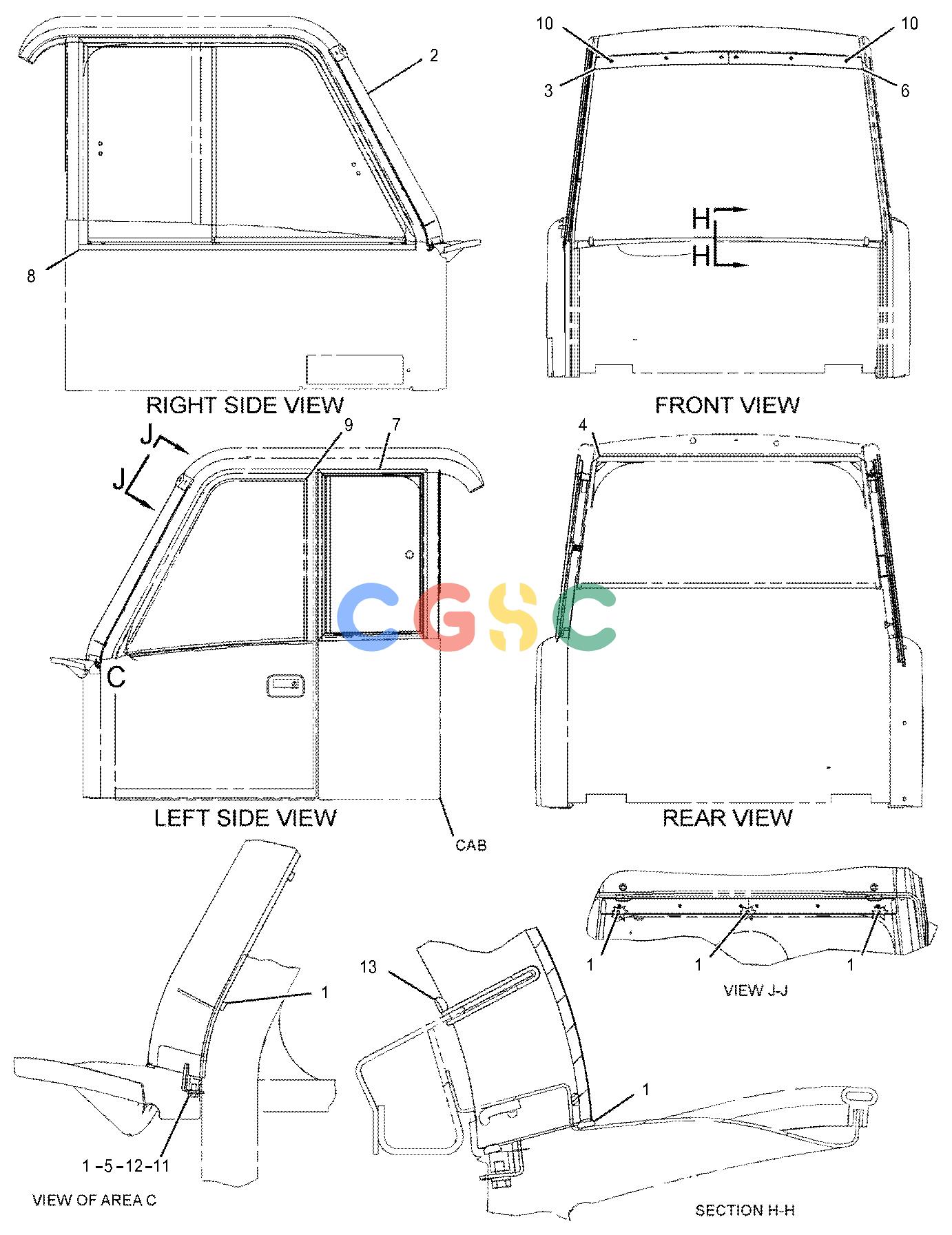

卡特零件查询（725C） 395-1807: WINDOW GP-CAB
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 110-7524B | [12] | BUTTON | |
| 2. | 158-0988 | [1] | WINDOW | |
| 3. | 162-4284 | [1] | CLAMP | |
| 4. | 162-7588B | [1] | WINDOW-REAR | |
| 5. | 162-7589 | [2] | PLATE-CLAMP | |
| 6. | 168-0229 | [1] | CLAMP | |
| 7. | 339-3252Y | [1] | WINDOW GP-CAB(VENTILATION, LH) | |
| 8. | 344-1790Y | [1] | WINDOW GP(BASIC) | |
| 9. | 396-7227 | [1] | WINDOW-DOOR | |
| 10. | 184-0982M | [6] | SCREW-PAN HEAD(M6X1X16-MM) | |
| 11. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 12. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 13. | 3E-6600E | | SEAL(128-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
