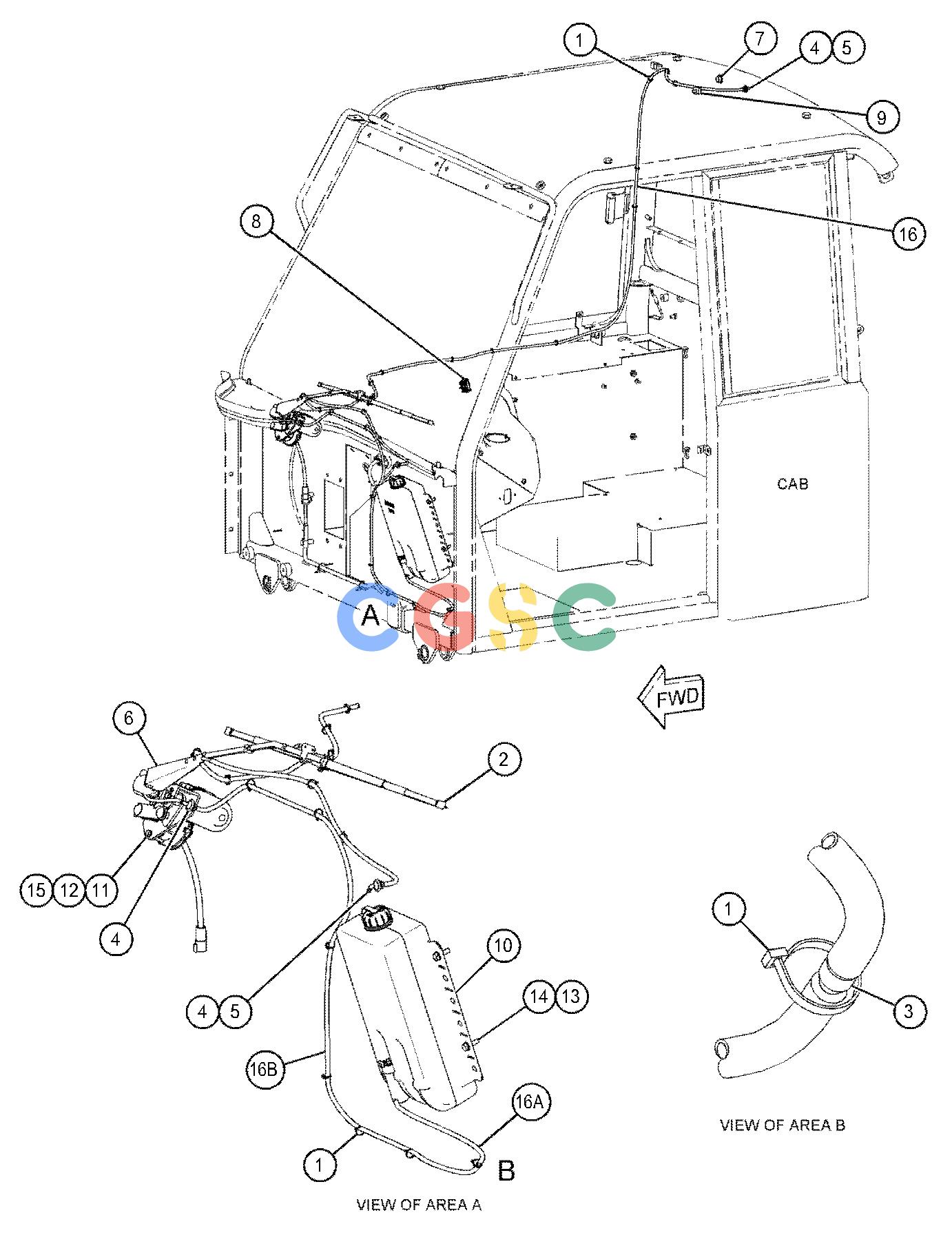

卡特零件查询（725C） 383-6697: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-9593 | [22] | STRAP-CABLE | |
| 2. | 6V-7419 | [1] | BLADE AS-WIPER(700-MM)(FRONT) | |
| 3. | 7Y-3474 | [1] | VALVE AS-CHECK(WINDOW WASHER) | |
| 4. | 8T-5400 | [3] | CONNECTOR | |
| 5. | 153-2840 | [2] | PLUG | |
| 6. | 168-8927 | [1] | ARM AS-WINDOW WIPER | |
| | 136-3188 | [3] | CLIP | |
| | 136-3196 | [1] | NOZZLE AS-WASHER | |
| | 194-5171E | | HOSE(70-CM) | |
| 7. | 193-5918 | [1] | PLUG | |
| 8. | 241-4505 | [1] | PLUG | |
| 9. | 274-3777 | [1] | CAP-CONNECTOR | |
| 10. | 383-6699 | [1] | TANK GP-WINDOW WASHER | |
| | 388-9379 | [1] | CAP-VENTED | |
| | 416-0021 | [1] | PUMP AS-WASHER(24-VOLT) | |
| 11. | 399-1437Y | [1] | MOTOR GP-WINDOW WIPER | |
| 12. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 13. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 15. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 16. | 144-0195E | | HOSE(396-CM) | |
| 16A. | 144-0195E | | HOSE(24-CM) | |
| 16B. | 144-0195E | | HOSE(151-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
