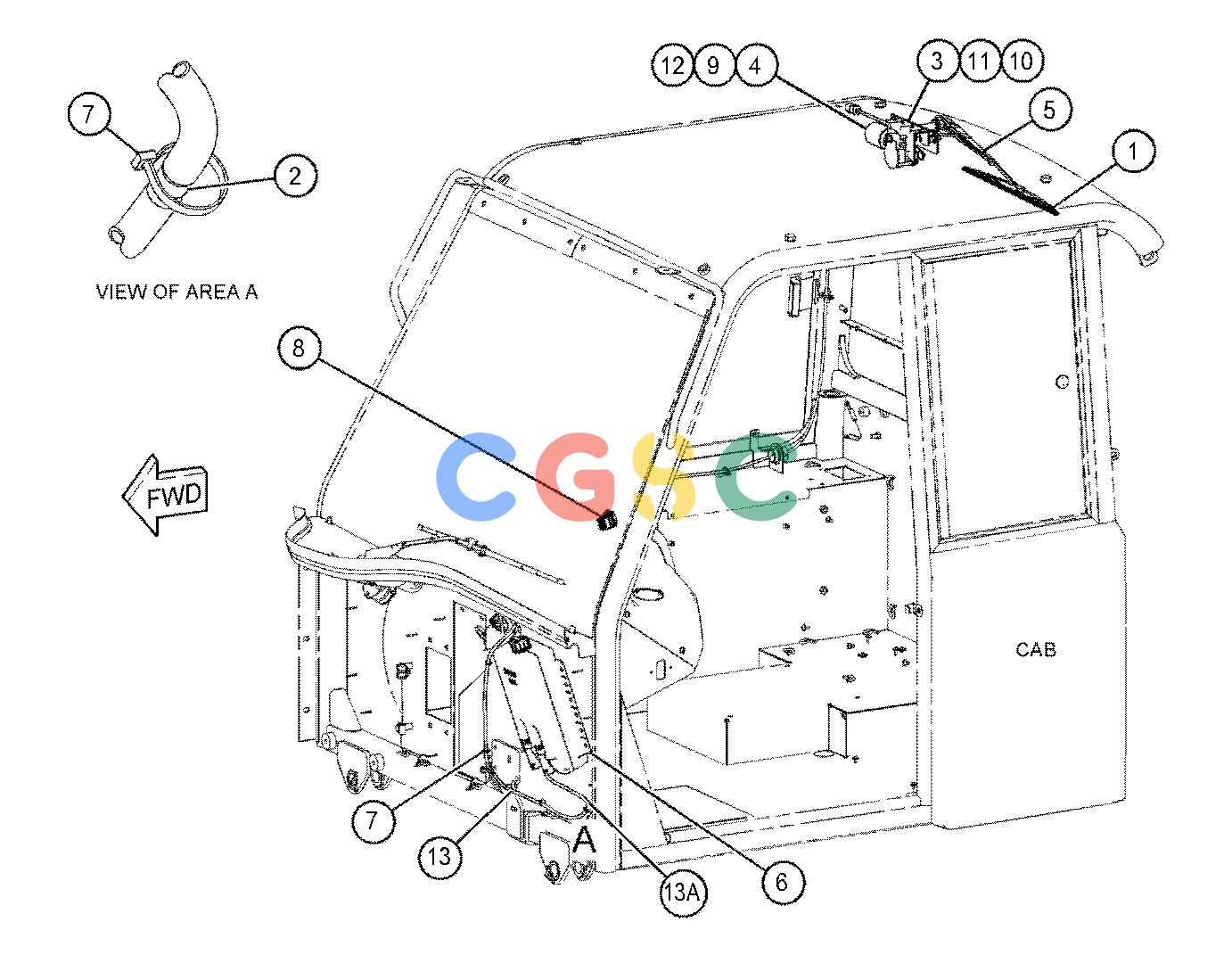

卡特零件查询（725C） 383-6698: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 14 02月, 2025，浏览：
911 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5C-8811 | [1] | BLADE AS-WIPER(500-MM) | |
| 2. | 7Y-3474 | [1] | VALVE AS-CHECK(WINDOW WASHER) | |
| 3. | 168-3392 | [1] | PLATE | |
| 4. | 168-8926Y | [1] | MOTOR GP-WINDOW WIPER(REAR) | |
| 5. | 168-8928 | [1] | ARM AS-WINDOW WIPER(REAR) | |
| | 194-5171 | | HOSE | |
| | 305-9192 | [1] | NOZZLE AS-WASHER | |
| 6. | 380-8464 | [1] | TANK GP-WINDOW WASHER | |
| | 416-0021 | [2] | PUMP AS-WASHER(24-VOLT) | |
| | 388-9379 | [1] | CAP-VENTED | |
| 7. | 1S-9593 | [5] | STRAP-CABLE | |
| 8. | 271-2827 | [1] | SWITCH AS-ROCKER(REAR WASHER, WIPER) | |
| 9. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 10. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 12. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 13. | 144-0195E | | HOSE(100-CM) | |
| 13A. | 144-0195E | | HOSE(20.5-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
