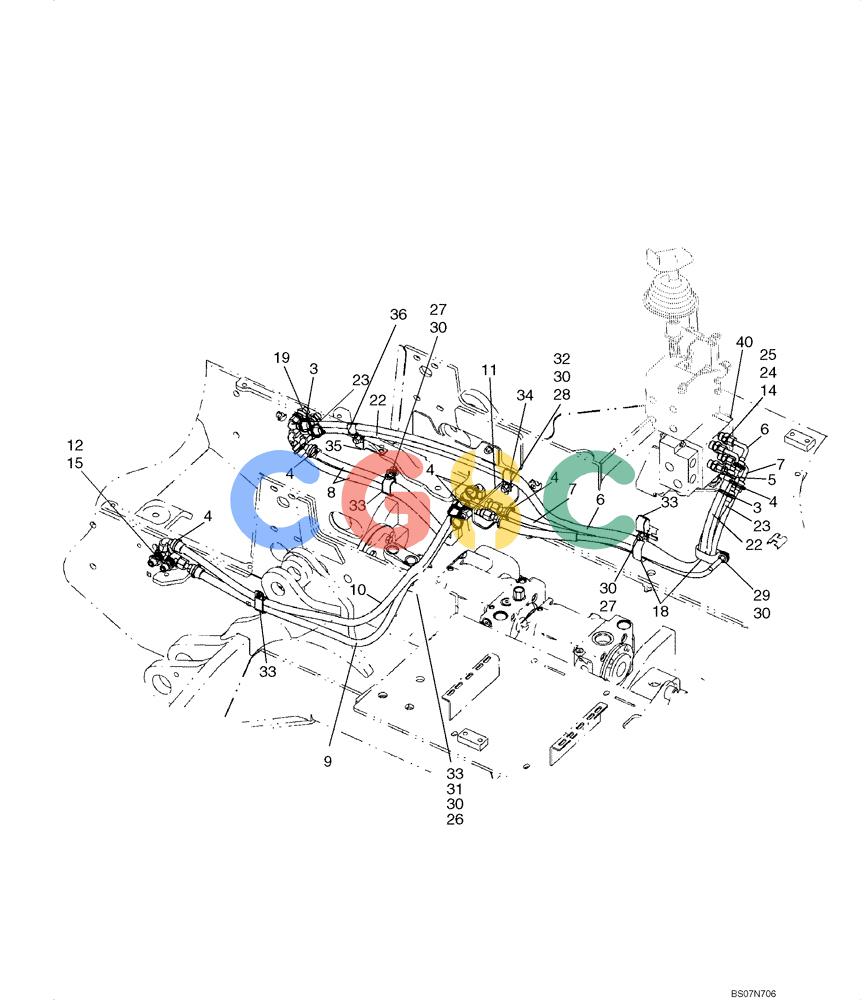

| 1. | 87310535 | [2] | SLEEVE | BUR200 mm |
| 2. | 87429172 | [5] | STRAP | CASRed Superseded by part number: 529070 |
| 3. | 87429173 | [2] | STRAP | CASOrange Superseded by part number: 529070 |
| 4. | 87429174 | [6] | STRAP | CASYellow Superseded by part number: 529070 |
| 5. | 87429175 | [2] | STRAP | CASGreen Superseded by part number: 529070 |
| 6. | 87704189 | [1] | HOSE ASSY. | BURHOSE ASSY., RH, Angle - Top Port; 1065 mm (41 - 15/16 in) |
| 7. | 87704191 | [1] | HOSE ASSY. | BURHOSE ASSY., LH, Angle - Bottom Port; 1040 mm (40 - 15/16 in) |
| 8. | 87485059 | [2] | HOSE ASSY. | BURHOSE ASSY., Angle Crossover; 900 mm (35 - 7/16 in); Replaces 87755478 900mm (35-7/16in) Is Covered by A Nylon Sleeve |
| 9. | 87704194 | [1] | HOSE ASSY. | BURHOSE ASSY., Angle Crossover; 1139 mm (44 - 7/8 in) |
| 10. | 87704195 | [1] | HOSE ASSY. | BURHOSE ASSY., Angle Crossover; 1232 mm (48 - 9/16 in) |
| 11. | 87704203 | [1] | BRACKET | BURBRACKET |
| 12. | 238-6014 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASIncluded in Ref 15 Superseded by part number: 9992298 |
| 13. | 201-121 | [4] | HYD CONNECTOR,13/16"-16, Blkhd, ORFS | IHIncludes Ref 19 |
| 14. | 201-139 | [4] | HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB | CASIncludes Ref 24, 25 Superseded by part number: 86615560 |
| 15. | 201-301 | [2] | ELBOW,90º, 13/16"-16, Blkhd, ORFS | CASIncludes Ref 12 |
| 16. | 201-423 | [2] | TEE,9/16"-18, Blkhd, Run, ORFS | CASIncludes Ref 20 |
| 17. | 201-903 | [8] | TUBE NUT,Blkhd, 13/16"-16 | CAS |
| 18. | 242999A1 | [2] | CLAMP | CAS |
| 22. | 436016A1 | [1] | HOSE ASSY. | BURRH, Tilt - Top Port; 1810 mm (71 - 5/16 in) |
| 23. | 436017A1 | [1] | HOSE ASSY. | BURLH, Tilt - Bottom Port; 1705 mm (67 - 1/8 in) |
| 24. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CASBoss End, Included in Ref 14 Superseded by part number: 72186125, 167269 |
| 25. | 238-6012 | [1] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | CASFace Seal end, Included in Ref 14 Superseded by part number: 9993141 |
| 26. | 614-12050 | [1] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd | CAS Superseded by part number: 87342144 |
| 27. | 811-12035 | [2] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8 | CAS Superseded by part number: 87035385 |
| 28. | 811-12060 | [1] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8 | NH Superseded by part number: 412097 |
| 29. | 811-12070 | [1] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8 | CAS Superseded by part number: 338263 |
| 30. | 832-10412 | [6] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 31. | 896-15012 | [2] | WASHER,13.5mm ID x 28mm OD x 4mm Thk | CAS Superseded by part number: 86625256 |
| 32. | 994-12021 | [1] | SPACER,3/4" Tube x .840" | BRR |
| 33. | H434289 | [5] | MOUNTING CLIP | CAS |
| 34. | L71188 | [5] | CLAMP,15.75mm ID, 13.46mm Bolt Hole, P Type | CAS |
| 35. | 436894A1 | [1] | BRACKET, SUPPORTING | BURHose Ref 22, 23 |
| 36. | 614-12025 | [1] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
| 40. | 87311632 | [1] | HYDRAULIC VALVE | BURThree Spool, See Figure 08-18 Superseded by part number: 84355767 |
| 40. | 87311631 | [1] | HYDRAULIC VALVE | BURFour Spool, See Figure 08-18 Superseded by part number: 84355783 |
