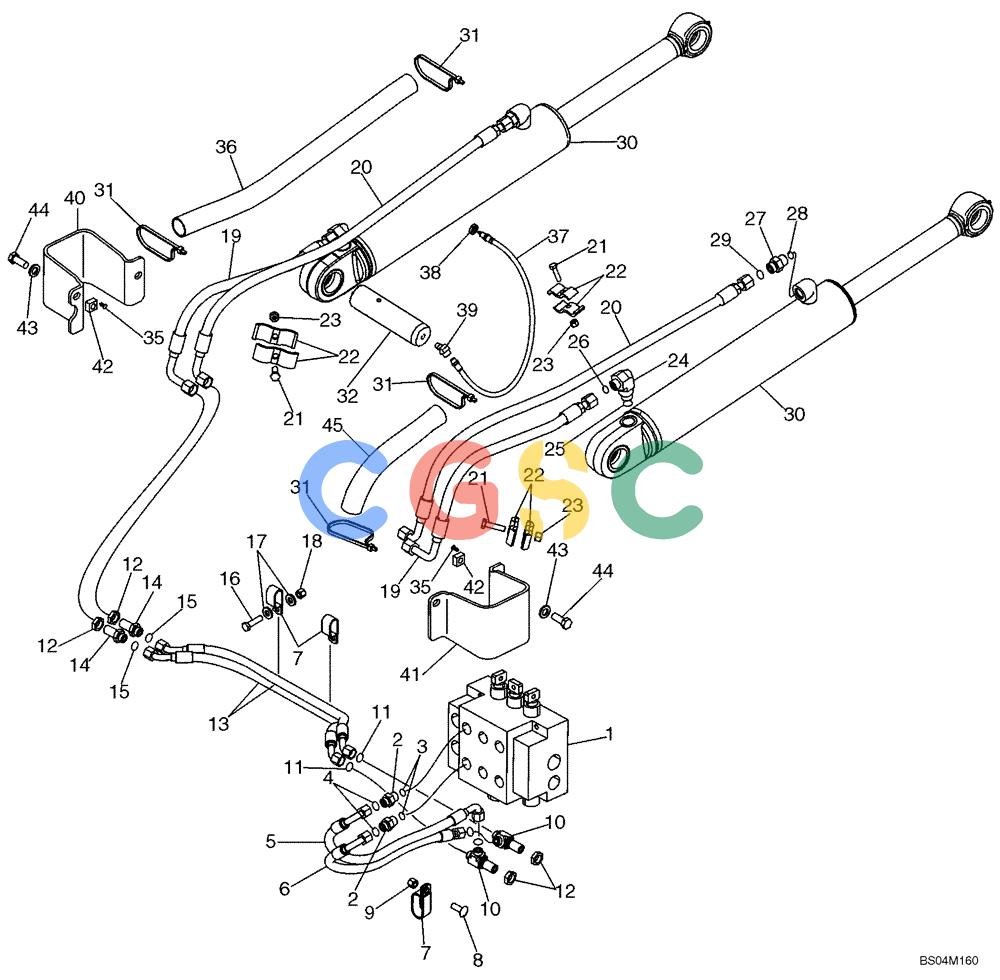

| 1. | 87311632 | [1] | HYDRAULIC VALVE | BURThree Spool; See Figure 08-18 Superseded by part number: 84355767 |
| 1. | 87311631 | [1] | HYDRAULIC VALVE | BURFour Spool; See Figure 08-18 Superseded by part number: 84355783 |
| 2. | 201-112 | [2] | HYD CONNECTOR,13/16"-16 ORFS x 7/8"-14 ORB | CASIncludes Ref. 3, 4 Superseded by part number: 73338799 |
| 3. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CASBoss End Superseded by part number: 72186125, 167269 |
| 4. | 238-6014 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9992298 |
| 5. | 433794A1 | [1] | HOSE ASSY. | BUR715 mm (28-3/16 in); Upper Port Of Control Valve |
| 6. | 433795A1 | [1] | HOSE ASSY. | BUR625 mm (24-5/8 in); Lower Port Of Control Valve |
| 7. | H434289 | [3] | MOUNTING CLIP | CAS |
| 8. | 811-12035 | [1] | CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8 | CAS Superseded by part number: 87035385 |
| 9. | 832-10412 | [1] | NUT,M12 x 1.75, Cl 8 | CAS Superseded by part number: 87780366, 412126 |
| 10. | 201-423 | [2] | TEE,9/16"-18, Blkhd, Run, ORFS | CASIncl. Ref 11 |
| 12. | 201-903 | [4] | TUBE NUT,Blkhd, 13/16"-16 | CASORFS, 1/2 tube OD, 9.0 mm (3/8") thk |
| 13. | 434860A1 | [2] | HOSE ASSY. | BUR795 mm (31-5/16 in); Crossover |
| 14. | 201-121 | [2] | HYD CONNECTOR,13/16"-16, Blkhd, ORFS | IHIncludes Ref. 15 |
| 16. | 614-12050 | [2] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd | CAS Superseded by part number: 87342144 |
| 17. | 896-15012 | [4] | WASHER,13.5mm ID x 28mm OD x 4mm Thk | CAS Superseded by part number: 86625256 |
| 19. | 434858A1 | [2] | HOSE ASSY. | BUR550 mm (21-11/16 in); Closed End |
| 20. | 434857A1 | [2] | HOSE ASSY. | BUR995 mm (39-3/16 in); Rod End |
| 21. | 614-10040 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 22. | 434130A1 | [8] | HOSE CLAMP | BUR |
| 23. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 24. | 201-326 | [2] | ELBOW,90º, 13/16"-16 x 7/8"-14, Adj, ORFS | CASIncl. Ref 25, 26 Superseded by part number: 85802961 |
| 30. | 87361535 | [2] | LIFT CYLINDER,Double Acting, 44.4mm Rod, 394.5mm Stroke | BUR89 ID x 395 mm Stroke; Lift; Gray; See Figure 08-11 |
| 30. | 87361535R | [2] | REMAN-HYD CYLINDER | BURD85B TIER 3 (3/08-) |
| 30. | 87361535C | [2] | CORE-HYD CYLINDER | BURReturn Number |
| 31. | L18331 | [4] | CABLE TIE,375.9mm L | CAS15" Superseded by part number: 529070 |
| 32. | 405607A1 | [2] | GROOVED PIN,44.42mm OD x 165mm L | BURLift |
| 35. | 336371A1 | [4] | PIN | CASNut Retainer |
| 36. | 307277A1 | [2] | PROTECTIVE SLEEVE,36.87mm ID x 850mm L | CAS850 mm (33-7/16 in) |
| 37. | 87314982 | [2] | HOSE | CASGrease; 330 mm (13 in); Includes 1/8 NPSM Thrd Grease Fitting; Attaches To Mounting Pin |
| 38. | F53473 | [2] | LOCK NUT,1/8-27 NPSM | CAS Superseded by part number: 76085536 |
| 39. | 217-1014 | [2] | ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male | CAS Superseded by part number: 217-20 |
| 40. | 87436494 | [1] | PROTECTIVE COVER | BURLeft Hand |
| 41. | 87436495 | [1] | PROTECTIVE COVER | BURRight Hand |
| 42. | 87447306 | [4] | SQUARE NUT | CASCage, M12 |
| 43. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 44. | 627-12040 | [4] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 45. | 436629A1 | [2] | SLEEVE | BUR425 mm (16-3/4 in) |
| 46. | 87310535 | [1] | SLEEVE | BUR200 mm; Not Illustrated; Located On Lift Crossover Hoses |
