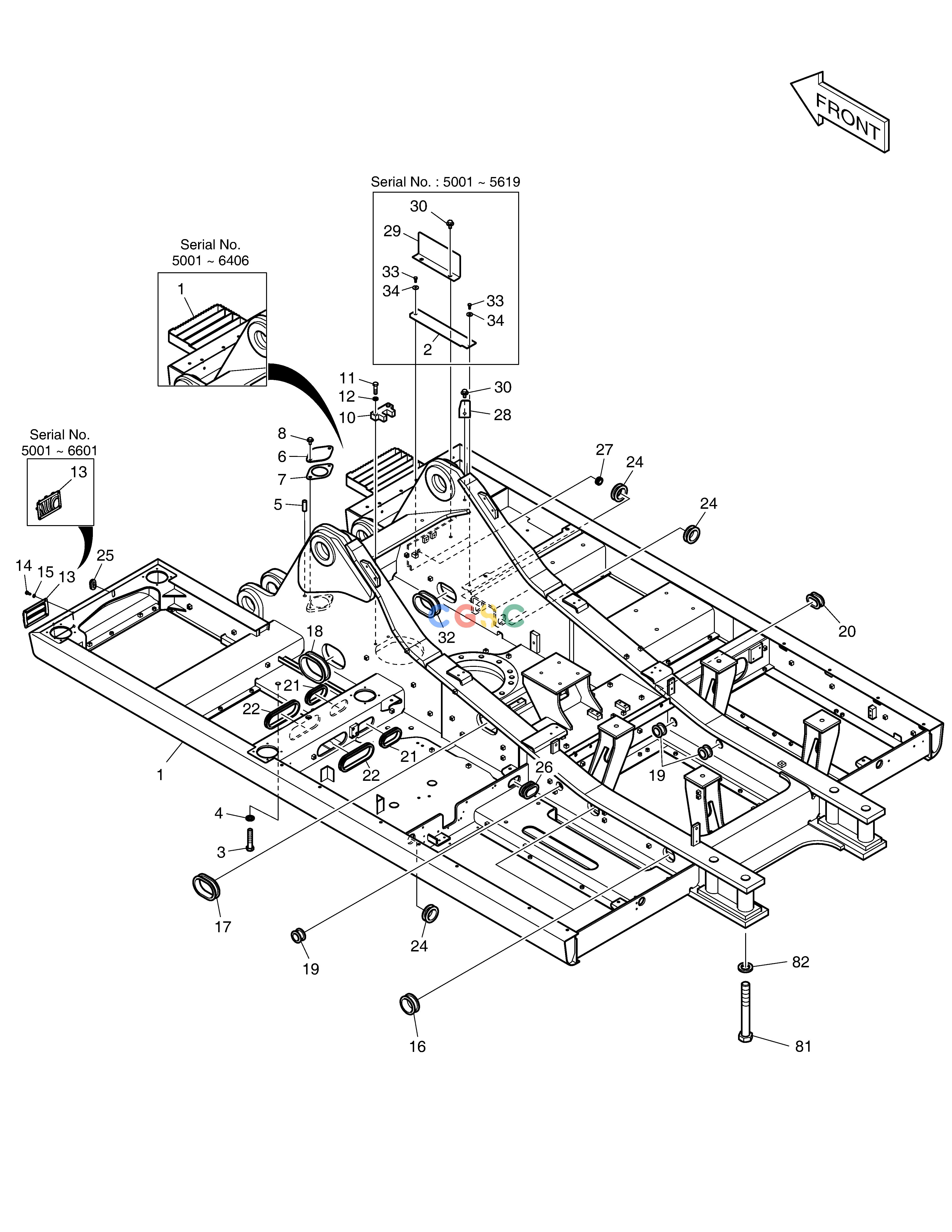

斗山零件查询MAIN FRAME DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160620-00069
|
[-] |
MAIN FRAME
|
|
| -. |
K1002971T
|
[-] |
MAIN FRAME
|
|
| 1. |
K1002972S
|
[1] |
FRAME;MAIN
|
160620-00070
|
| 1. |
160620-00070
|
[1] |
FRAME;MAIN
|
160620-00070A
|
| 1. |
160620-00070A
|
[1] |
|
160620-00070B
|
| 1. |
160620-00070B
|
[1] |
|
160620-00070E
|
| 1. |
160620-00070E
|
[1] |
|
160620-00070G
|
| 1. |
160620-00070G
|
[1] |
|
160620-00070H
|
| 1. |
160620-00070H
|
[1] |
|
|
| 1. |
160620-00070L
|
[1] |
|
|
| 1. |
160620-00070M
|
[1] |
|
|
| 1. |
160620-00070N
|
[1] |
|
160620-00070P
|
| 1. |
160620-00070P
|
[1] |
|
|
| 1. |
160620-00070R
|
[1] |
|
|
| 10. |
K1002107A
|
[1] |
PLATE
|
|
| 11. |
S0565466
|
[2] |
BOLT
|
|
| 12. |
S5102903
|
[2] |
WASHER
|
|
| 13. |
621-02800
|
[1] |
GUARD;LAMP
|
|
| 13. |
110921-02771
|
[1] |
GUARD,LAMP
|
|
| 14. |
2120-2166D5
|
[4] |
BOLT
|
|
| 15. |
2114-1898D14
|
[4] |
WASHER
|
|
| 16. |
2160-1004D42
|
[2] |
BUSHING;RUBBER
|
|
| 17. |
DS7601063
|
[1] |
BUSHING;RUBBER
|
|
| 18. |
2160-1201D9
|
[1] |
BUSHING;RUBBER
|
|
| 19. |
DS7603058
|
[3] |
BUSHING;RUBBER
|
|
| 2. |
K1004976A
|
[1] |
PLATE
|
|
| 20. |
DS7601064
|
[1] |
BUSHING;RUBBER
|
|
| 21. |
DS7601027
|
[2] |
BUSHING,RUBBER
|
|
| 22. |
DS7601028
|
[2] |
BUSHING;RUBBER
|
|
| 24. |
2160-1004D55
|
[3] |
BUSHING;RUBBER
|
|
| 25. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 26. |
2160-1201D14
|
[1] |
BUSHING;RUBBER
|
|
| 27. |
2160-1004D45
|
[1] |
BUSHING;RUBBER
|
|
| 28. |
195-02623A
|
[1] |
BRACKET
|
|
| 29. |
191-02987A
|
[1] |
PLATE
|
|
| 3. |
S0775866
|
[35] |
BOLT
|
|
| 30. |
DS0025018
|
[3] |
BOLT
|
|
| 30. |
DS0025018
|
[1] |
BOLT
|
|
| 32. |
DS7601032
|
[1] |
BUSHING;RUBBER
|
|
| 33. |
S0508866
|
[2] |
BOLT
|
|
| 34. |
2114-1058D29
|
[2] |
WASHER
|
|
| 4. |
2114-1831A
|
[35] |
. WASHER
|
|
| 5. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
| 6. |
621-02938B
|
[1] |
COVER
|
|
| 7. |
180-00463
|
[1] |
PACKING
|
|
| 8. |
DS0025023
|
[2] |
BOLT
|
|
| 81. |
120-00272A
|
[4] |
BOLT
|
|
| 82. |
114-00055
|
[4] |
WASHER;HARDEN
|
|
