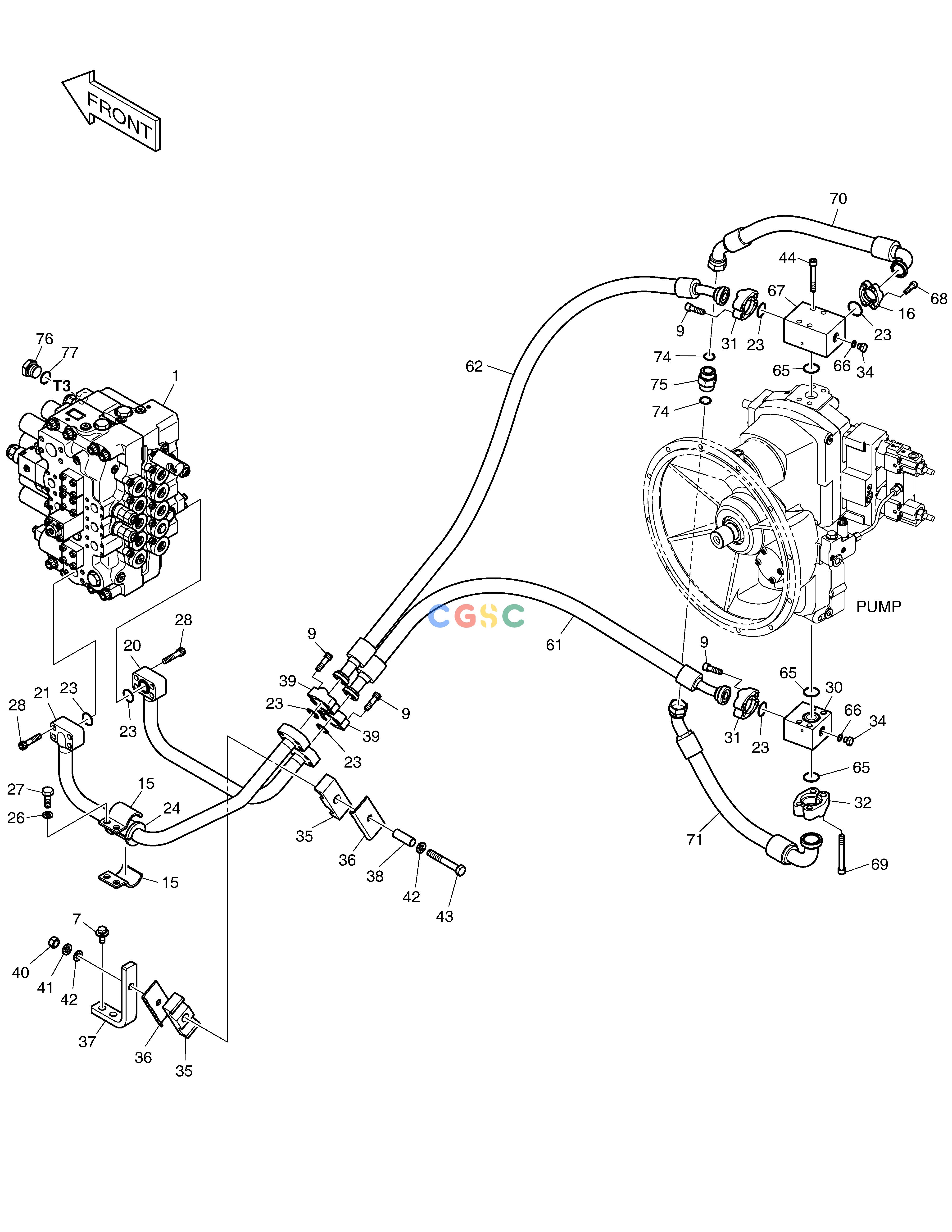

斗山零件查询MAIN PIPING(1) - PUMP DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002988L
|
[-] |
MAIN PIPING
|
|
| 1. |
K1045215
|
[1] |
VALVE;CONTROL
|
|
| 15. |
124-00218
|
[2] |
CLAMP
|
|
| 16. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
| 20. |
420207-00351A
|
[1] |
|
|
| 20. |
K1003103A
|
[1] |
PIPE
|
420207-00351
|
| 20. |
420207-00351
|
[1] |
|
|
| 21. |
420207-00352A
|
[1] |
|
|
| 21. |
K1003104A
|
[1] |
PIPE
|
420207-00352
|
| 21. |
420207-00352
|
[1] |
|
|
| 23. |
2180-1026D19
|
[7] |
O-RING
|
DS2856003
|
| 23. |
DS2856003
|
[7] |
O-RING
|
|
| 24. |
161-00281
|
[1] |
RUBBER
|
180308-00235
|
| 24. |
180308-00235
|
[1] |
|
|
| 26. |
S5102803
|
[2] |
WASHER
|
|
| 27. |
S0562766
|
[2] |
BOLT
|
|
| 28. |
S2215766
|
[8] |
BOLT
|
|
| 30. |
K1001971B
|
[1] |
BLOCK
|
|
| 31. |
2181-9084A
|
[4] |
FLANGE;SPLIT
|
|
| 32. |
2181-9086
|
[2] |
FLANGE;SPLIT
|
|
| 34. |
2181-1950D1
|
[2] |
PLUG
|
|
| 35. |
124-00210A
|
[2] |
CLAMP
|
|
| 36. |
2191-3705C
|
[2] |
PLATE
|
|
| 37. |
K1005180A
|
[1] |
BRACKET
|
|
| 38. |
114-00456
|
[1] |
SPACER
|
|
| 39. |
2181-9081
|
[4] |
FLANGE;SPLIT
|
|
| 40. |
S4012933
|
[1] |
NUT
|
|
| 41. |
S5102903
|
[1] |
WASHER
|
|
| 42. |
S5010813
|
[2] |
WASHER;PLAIN
|
|
| 43. |
S0566466
|
[1] |
BOLT M16X2.0X110
|
|
| 44. |
S2216366
|
[4] |
BOLT;SOCKET
|
|
| 61. |
DS2097017
|
[1] |
HOSE
|
|
| 62. |
DS2097015
|
[1] |
HOSE
|
|
| 65. |
2180-1026D23
|
[3] |
O-RING
|
DS2856004
|
| 65. |
DS2856004
|
[3] |
O-RING
|
|
| 66. |
S8000111
|
[2] |
O-RING
|
|
| 67. |
K1007921A
|
[1] |
BLOCK
|
|
| 68. |
S2212366
|
[4] |
BOLT
|
|
| 69. |
S2216866
|
[4] |
BOLT;SOCKET
|
|
| 7. |
DS0025020
|
[2] |
BOLT
|
|
| 70. |
DS2065030
|
[1] |
HOSE
|
|
| 71. |
DS2065031
|
[1] |
HOSE
|
|
| 74. |
S8030161
|
[2] |
O-RING
|
|
| 75. |
K1012046A
|
[1] |
ADAPTER
|
|
| 76. |
DS2901005
|
[1] |
|
|
| 77. |
S8000291
|
[1] |
O-RING
|
|
| 9. |
S2215466
|
[16] |
BOLT
|
|
