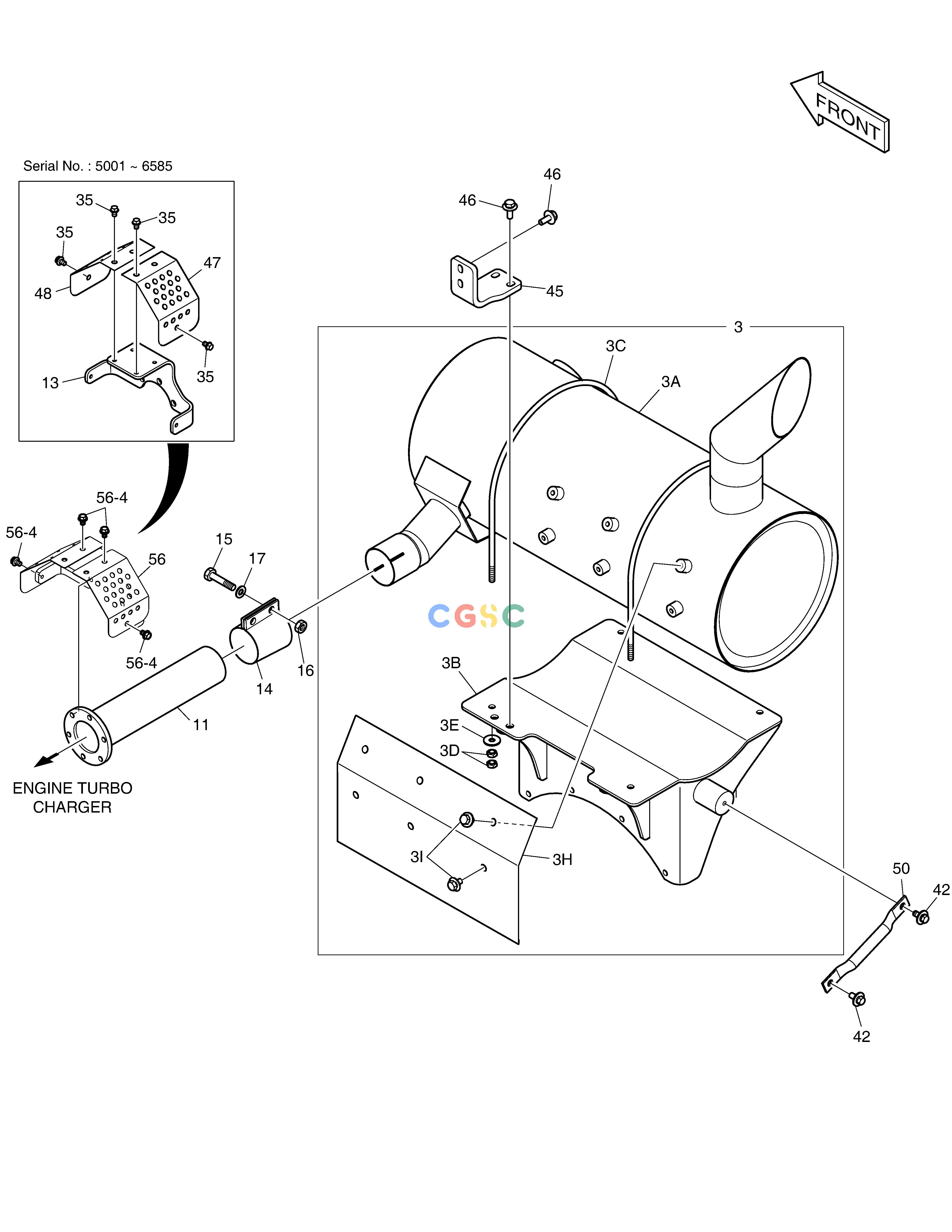

斗山零件查询MUFFLER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1004971G
|
[-] |
ENGINE ASS'Y
|
|
| -. |
150109-00586
|
[-] |
|
|
| 11. |
182-00123
|
[1] |
PIPE;EXHAUST
|
|
| 13. |
K1004280B
|
[1] |
BRACKET
|
|
| 14. |
124-00310A
|
[1] |
CLAMP
|
|
| 15. |
S0515866
|
[2] |
BOLT
|
|
| 16. |
S4012733
|
[2] |
NUT
|
|
| 17. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 3. |
K1029158
|
[1] |
MUFFLER SUB ASS'Y
|
240103-00553
|
| 3. |
240103-00553
|
[1] |
|
|
| 35. |
K1001029
|
[6] |
BOLT
|
|
| 3A. |
K1029147
|
[1] |
MUFFLER
|
240103-00528
|
| 3A. |
240103-00528
|
[1] |
|
|
| 3B. |
K1002920C
|
[1] |
BRACKET
|
|
| 3C. |
K1023547
|
[2] |
BOLT;U
|
|
| 3D. |
S4012633
|
[8] |
NUT
|
|
| 3E. |
2114-1058D63
|
[4] |
WASHER
|
|
| 3H. |
K1004466
|
[1] |
PLATE;INSULATION
|
|
| 3I. |
DS0025013
|
[6] |
BOLT
|
|
| 42. |
DS0025017
|
[2] |
BOLT
|
|
| 45. |
K1000349A
|
[1] |
BRACKET
|
|
| 46. |
DS0025034
|
[4] |
BOLT
|
|
| 47. |
K1006244A
|
[1] |
COVER
|
|
| 48. |
K1006245
|
[1] |
COVER
|
|
| 50. |
K1004507
|
[1] |
STAY
|
|
| 56. |
110506-00331
|
[1] |
|
|
| 56-4. |
K1001029
|
[6] |
BOLT
|
|
