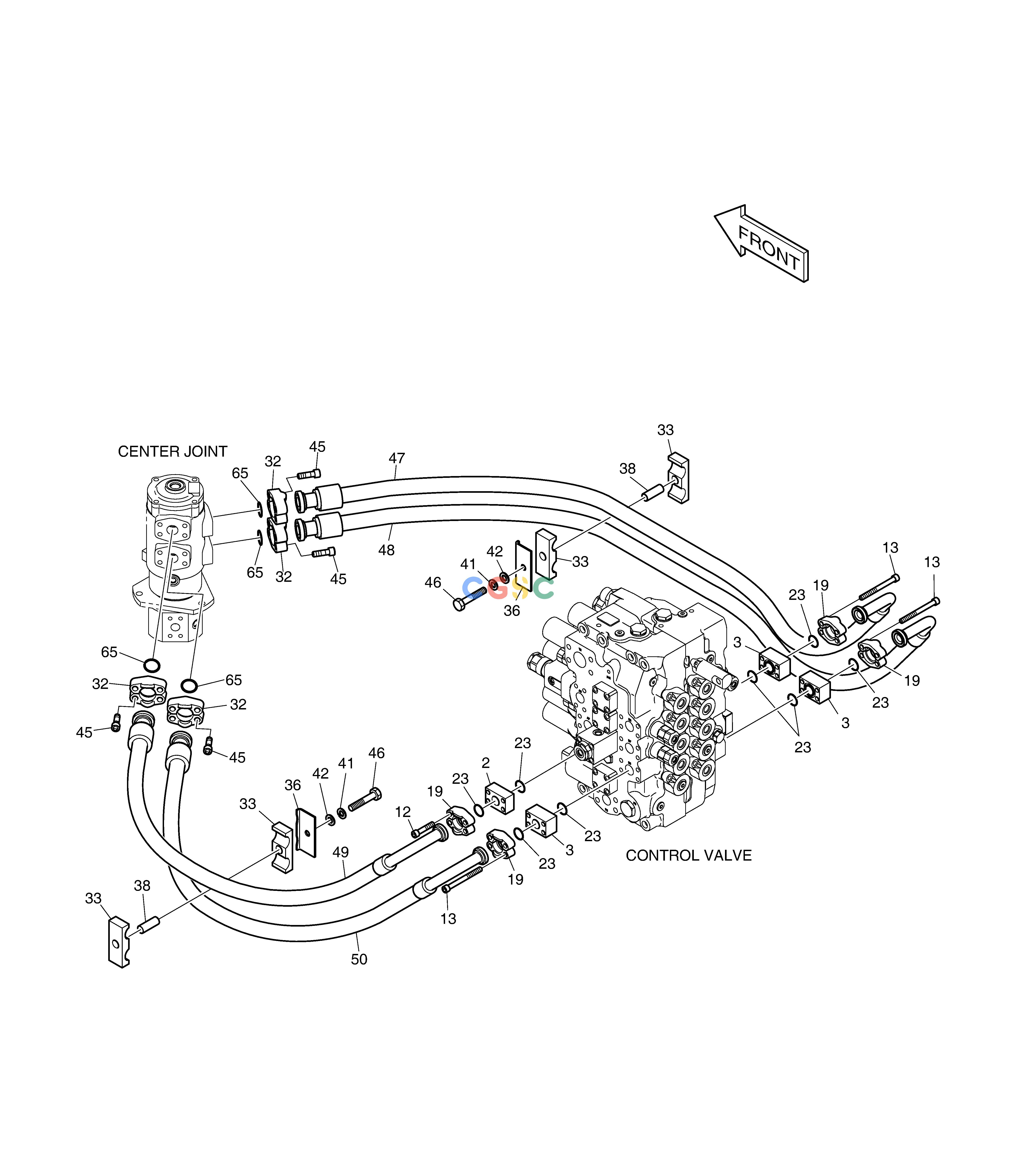

斗山零件查询MAIN PIPING(5) - TRAVEL DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
461 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002988L
|
[-] |
MAIN PIPING
|
|
| 12. |
S2212866
|
[4] |
BOLT
|
|
| 13. |
S2213066
|
[12] |
BOLT;SOCKET M10X1.5X70
|
|
| 19. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 2. |
2423-1407
|
[1] |
BLOCK;SPACER
|
|
| 23. |
DS2856003
|
[8] |
O-RING
|
|
| 23. |
2180-1026D19
|
[8] |
O-RING
|
DS2856003
|
| 3. |
2181-2614
|
[3] |
BLOCK;SPACER
|
|
| 32. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
| 33. |
124-00247
|
[4] |
CLAMP;HOSE
|
|
| 36. |
2191-3705C
|
[2] |
PLATE
|
|
| 38. |
114-00456
|
[2] |
SPACER
|
|
| 41. |
S5102903
|
[2] |
WASHER
|
|
| 42. |
S5010813
|
[2] |
WASHER;PLAIN
|
|
| 45. |
S2218566
|
[16] |
BOLT;SOCKET
|
|
| 46. |
S0566066
|
[2] |
BOLT
|
|
| 47. |
DS2040704
|
[1] |
HOSE
|
|
| 48. |
DS2040705
|
[1] |
HOSE
|
|
| 49. |
DS2040428
|
[1] |
HOSE
|
|
| 50. |
DS2040706
|
[1] |
HOSE
|
|
| 65. |
2180-1026D23
|
[4] |
O-RING
|
DS2856004
|
| 65. |
DS2856004
|
[4] |
O-RING
|
|
