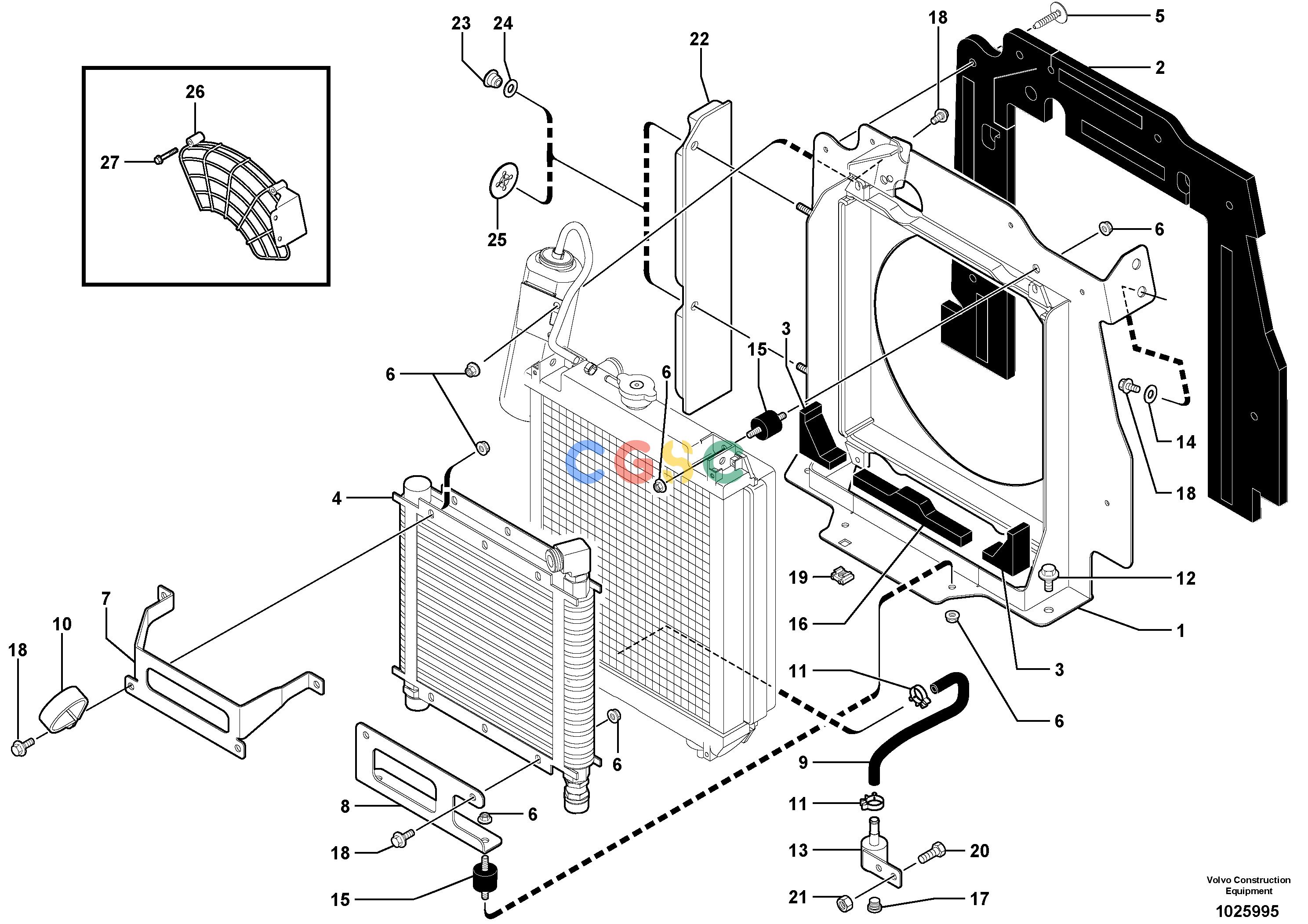

沃尔沃零件查询ECR38 Radiator installationTYPE 602602.10151-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11801348
|
[1] |
Support
|
|
| 2. |
VOE11803206
|
[1] |
Rubber plate
|
|
| 3. |
VOE11801616
|
[2] |
Seal
|
|
| 4. |
|
[1] |
Oil Cooler
|
|
| 5. |
VOE11801651
|
[6] |
Rubber button
|
|
| 6. |
VOE945408
|
[14] |
Flange nut
|
|
| 7. |
VOE11802474
|
[1] |
Support
|
|
| 8. |
VOE11802475
|
[1] |
Support
|
|
| 9. |
VOE11803042
|
[1] |
Radiator hose
|
|
| 10. |
VOE11802278
|
[1] |
Clamp attachment
|
|
| 11. |
VOE11804169
|
[2] |
Hose clamp
|
|
| 12. |
VOE946441
|
[3] |
Flange screw
|
|
| 13. |
VOE11804120
|
[1] |
Connector
|
|
| 14. |
VOE960141
|
[2] |
Plain washer
|
|
| 15. |
VOE11802570
|
[4] |
Suspension
|
|
| 16. |
VOE11801613
|
[1] |
Seal
|
|
| 17. |
VOE11802284
|
[1] |
Plug
|
|
| 18. |
VOE946173
|
[8] |
Flange screw
|
|
| 19. |
VOE11802303
|
[1] |
Cage nut
|
|
| 20. |
VOE13947542
|
[2] |
Screw
|
|
| 21. |
VOE945407
|
[2] |
Flange nut
|
|
| 22. |
VOE11804286
|
[1] |
Insulation
|
S/N - 602.10606
|
| 22. |
VOE11807569
|
[1] |
Insulating plate
|
S/N 602.10607 -
|
| 23. |
VOE11804712
|
[REQ] |
Button
|
|
| 24. |
VOE960148
|
[REQ] |
Plain washer
|
|
| 25. |
VOE977591
|
[REQ] |
Retainer
|
|
| 26. |
VOE11804282
|
[1] |
Grating
|
|
| 27. |
VOE13965176
|
[2] |
Screw
|
|
