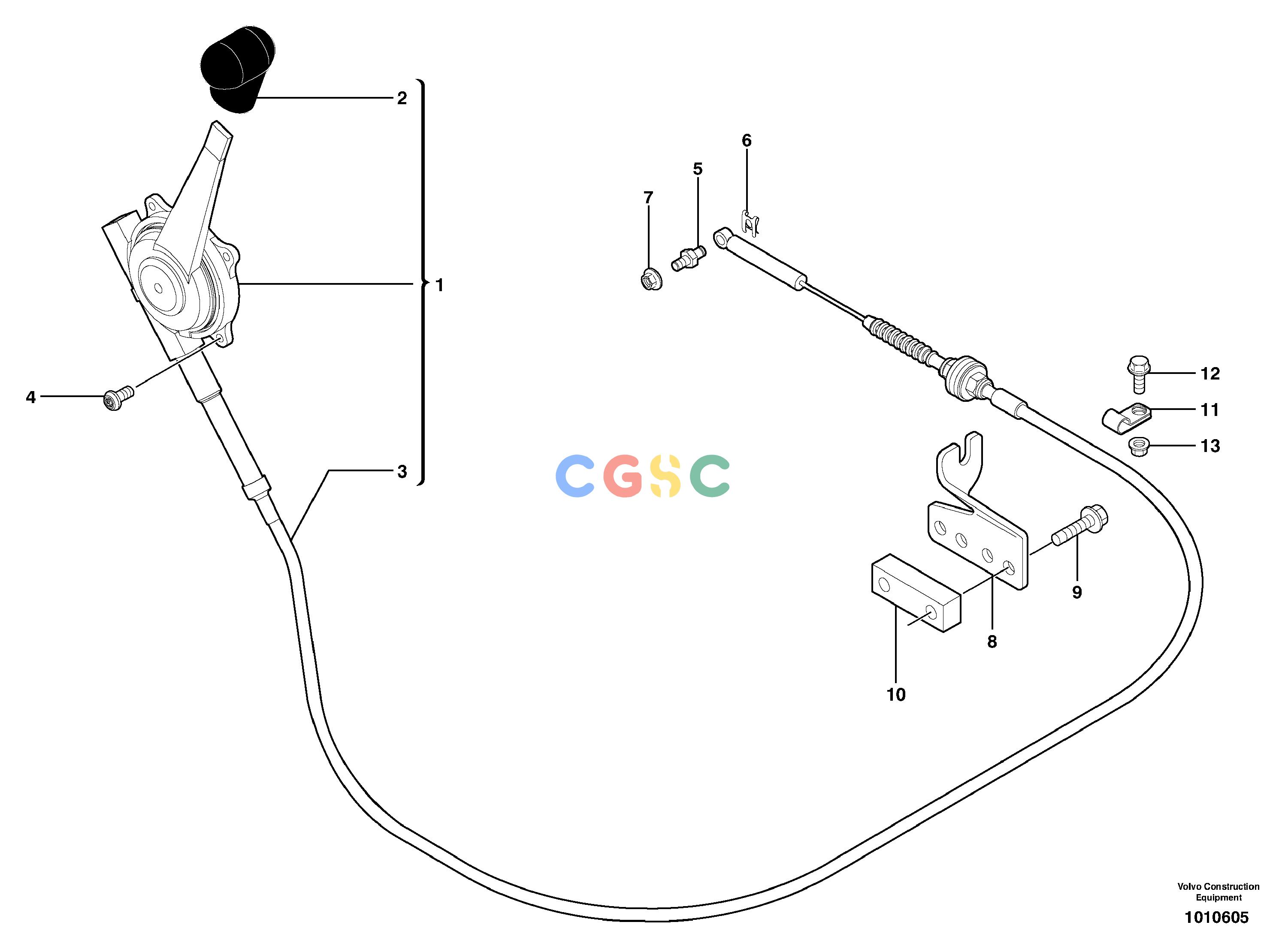

沃尔沃零件查询ECR38 Engine acceleration controlTYPE 602602.10151 602.11342-602.11343NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11802412
|
[1] |
Throttle cable
|
|
| 1. |
VOE15631317
|
|
Throttle cable
|
|
| 2. |
VOE11713125
|
[1] |
Handle ball
|
|
| 3. |
VOE15705962
|
[1] |
Throttle Cable
|
|
| 4. |
VOE969404
|
[3] |
Six point socket screw
|
|
| 5. |
VOE11803426
|
[1] |
Pin
|
|
| 5. |
VOE15627066
|
|
Pin
|
|
| 6. |
VOE11803585
|
[1] |
Lock brace
|
|
| 7. |
VOE949278
|
[1] |
Flange lock nut
|
|
| 8. |
VOE11801606
|
[1] |
Support
|
|
| 9. |
VOE60113082
|
[2] |
Flange screw
|
|
| 9. |
VOE947760
|
|
Flange screw
|
|
| 10. |
VOE11803220
|
[1] |
Spacer
|
|
| 10. |
VOE11808284
|
|
Spacer
|
|
| 11. |
VOE949746
|
[1] |
Clamp
|
|
| 12. |
VOE946544
|
[1] |
Flange screw
|
|
| 13. |
VOE945407
|
[1] |
Flange nut
|
|
