纽荷兰零件查询(D85B) - CRAWLER DOZER TIER 3 (3/08-) (08-19) - VALVE ASSY, RELIEF New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
333 次

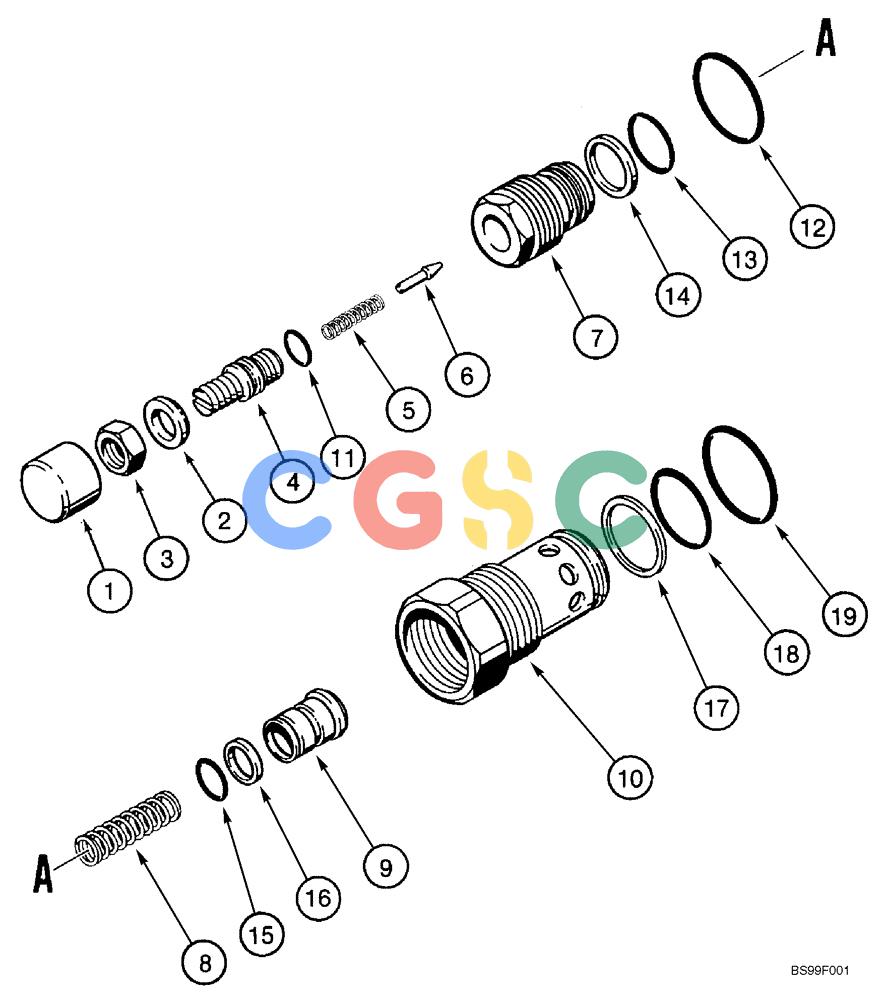

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | N8191 | [1] | VALVE | CASMain Relief; Incl. Ref 1 - 19 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONCover |
| 2. | 1978295C1 | [1] | WASHER | IH |
| 3. | 425-156 | [1] | JAM NUT,Jam, 3/8"-24, G5 | CAS Superseded by part number: 87319446, 72187226 |
| 4. | N9463 | [1] | ADJUSTMENT SCREW | CASAdjustment |
| 5. | N9465 | [1] | SPRING | CAS |
| 6. | N9464 | [1] | PLUNGER | CASPoppet |
| 7. | N9769 | [1] | BODY | CASPoppet Valve |
| 8. | S300250 | [1] | SPRING | CAS |
| . . | 106721A1 | [1] | SEAL KIT | CASIncl. Ref 11 - 19 |
| 11. | 238-5012 | [1] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro | CAS Superseded by part number: 86629543 |
| 12. | 238-5019 | [1] | O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro | CAS Superseded by part number: 511356 |
| 13. | A55911 | [1] | O-RING,0.807" ID | CAS |
| 14. | N9768 | [1] | BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm | CAS |
| 15. | 238-7113 | [1] | O-RING,-113, Cl 7, .549" ID x .103" Thk | CAS Superseded by part number: 70935118 |
| 16. | S84196 | [1] | BACK-UP RING,9/16" ID x 3/4" OD x 0.052" | CASBackup Superseded by part number: 7702825 |
| 17. | N8197 | [1] | O-RING,1.006" ID x 1.116" OD x 0.055" | CAS |
| 18. | 238-6022 | [1] | O-RING,-022, 90 Duro, .989" ID x .070" Thk | CAS Superseded by part number: 70925190 |
| 19. | 238-6023 | [1] | O-RING,-023, 90 Duro, 1.051" ID x .070" Thk | CAS |
