| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

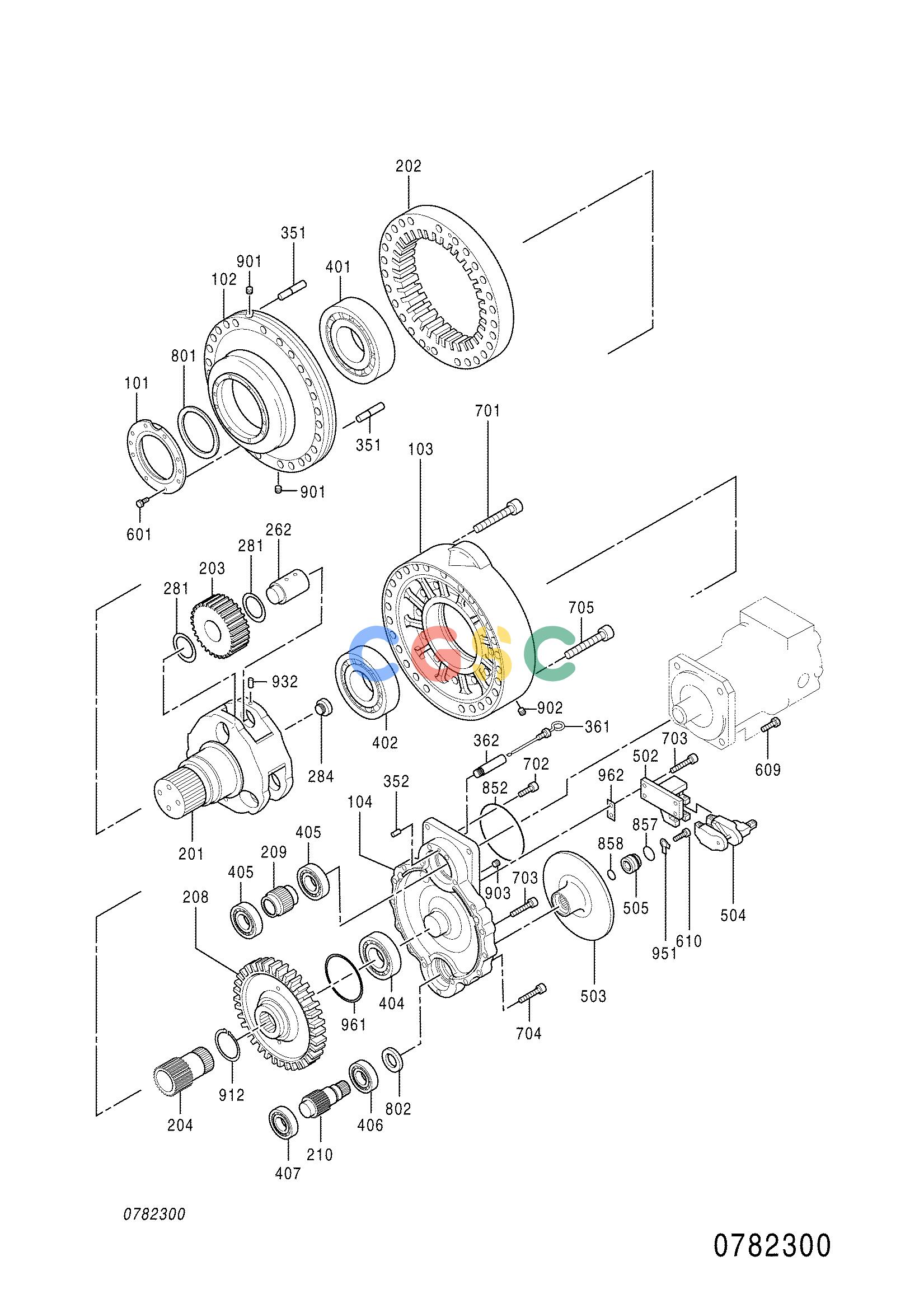

| 4392604 | [1] | MOTOR;OIL (2/2) | 0782300 This PART NO. consists of all parts shown in MOTOR;OIL(1/2) to (2/2). | |
| 101. | 0698201 | [1] | COVER | |
| 102. | 0698202 | [1] | CASING | |
| 103. | 0698203 | [1] | CASING | |
| 104. | 0698204 | [1] | CASING | |
| 201. | 0698205 | [1] | SHAFT | |
| 202. | 0698206 | [1] | GEAR;RING | |
| 203. | 0698207 | [3] | GEAR;PLANETARY | |
| 204. | 0698208 | [1] | GEAR;SUN | |
| 208. | 0698209 | [1] | GEAR | |
| 209. | 0628806 | [1] | PINION | |
| 210. | 0698210 | [1] | PINION | |
| 262. | 0698211 | [3] | PIN | |
| 281. | 0698212 | [6] | PLATE;THRUST | |
| 284. | 0252409 | [1] | THRUST;BUTTON | |
| 351. | 0698213 | [2] | PIN;KNOCK | |
| 352. | 0111519 | [1] | PIN | |
| 361. | 0628809 | [1] | BAR | |
| 362. | 0628810 | [1] | PIPE | |
| 401. | 0628811 | [1] | BRG. | |
| 402. | 0698214 | [1] | BRG. | |
| 404. | 0698215 | [1] | BRG. | |
| 405. | 0628812 | [2] | BRG.;BALL | |
| 406. | 0628813 | [1] | BRG.;BALL | |
| 407. | 0698216 | [1] | BRG.;BALL | |
| 502. | 0698217 | [1] | RETAINER | |
| 503. | 0698218 | [1] | DISC | |
| 504. | 0698219 | [1] | BRAKE | |
| 505. | 0698220 | [1] | PLATE | |
| 601. | 0698221 | [8] | BOLT | |
| 609. | 0251811 | [4] | BOLT | |
| 610. | 0698222 | [1] | BOLT | |
| 701. | 0313414 | [1] | BOLT;SOCKET | |
| 702. | 0229813 | [4] | BOLT;SOCKET | |
| 703. | M341236 | [14] | BOLT;SOCKET | |
| 704. | 0125427 | [3] | BOLT;SOCKET | |
| 705. | 0698223 | [6] | BOLT | |
| 801. | 0698224 | [1] | SEAL;OIL | |
| 802. | 0628815 | [1] | SEAL;OIL | |
| 852. | 0101718 | [1] | O-RING | |
| 857. | A811040 | [1] | O-RING | |
| 858. | 966689 | [1] | O-RING | |
| 901. | 0147211 | [2] | PLUG | |
| 902. | 0117122 | [1] | PLUG | |
| 903. | 0147210 | [1] | PLUG | |
| 912. | 991349 | [1] | RING;RETAINING | |
| 932. | 0698225 | [3] | PIN;SPRING | |
| 951. | 0698226 | [1] | WASHER | |
| 961. | 0698227 | [1] | SHIM | |
| 962. | 0698228 | [4] | SHIM |
