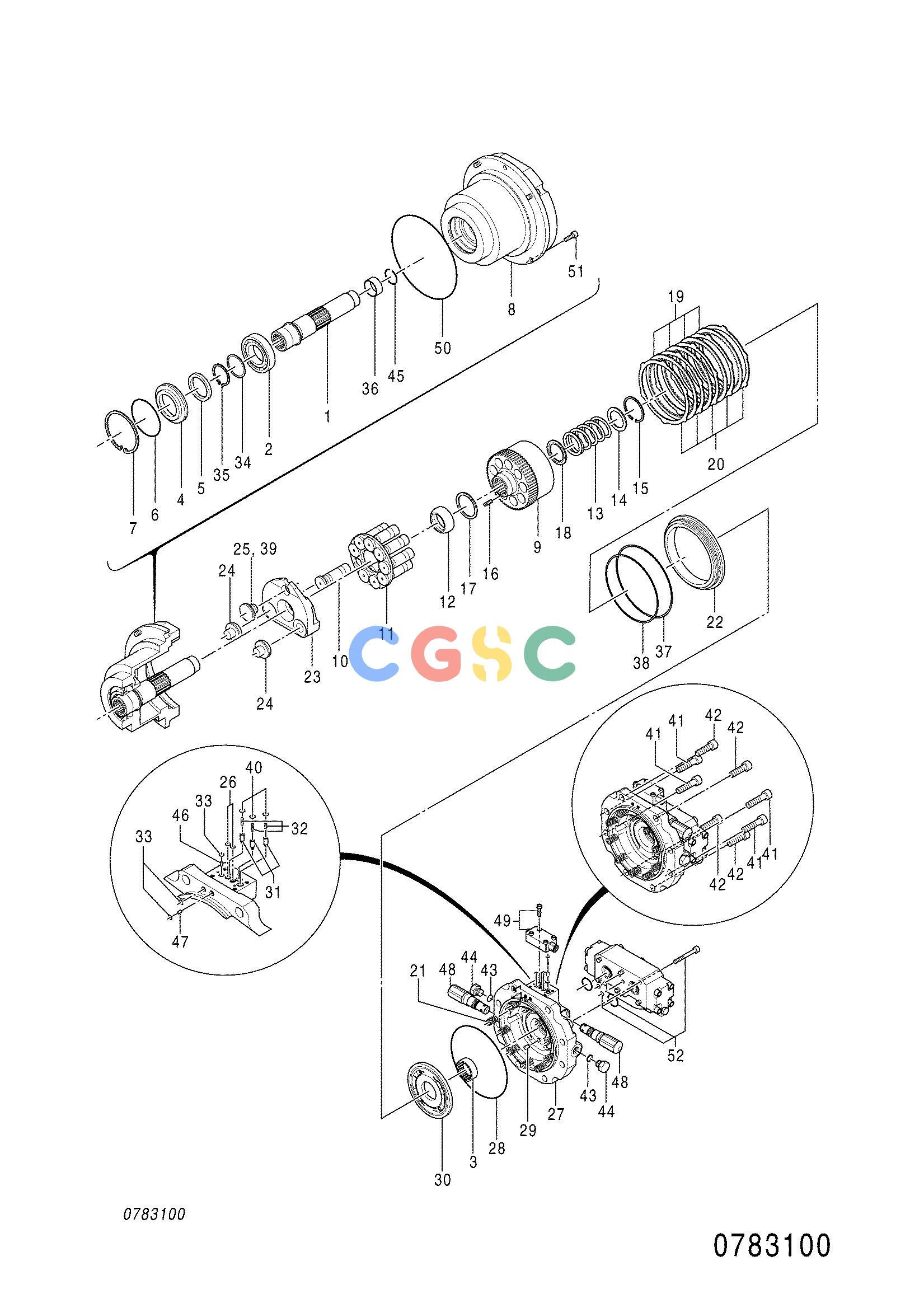

日立零件查询（CX2000）OIL MOTOR Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
167 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4410092 | [1] | MOTOR;OIL | 0783100 |
| 1. | 0780701 | [1] | SHAFT | |
| 2. | 0780702 | [1] | BRG. | |
| 3. | 0780703 | [1] | BRG.;NEEDLE | |
| 4. | 0780704 | [1] | SEAT | |
| 5. | 0780705 | [1] | SEAL;OIL | |
| 6. | A811110 | [1] | O-RING | |
| 7. | Z991732 | [1] | RING;RETAINING | |
| 8. | 0780706 | [1] | CASING | |
| 9. | 0780707 | [1] | BLOCK CYL. | |
| 10. | 0780708 | [9] | PISTON | |
| 11. | 0780709 | [1] | RETAINER | |
| 12. | 0780710 | [1] | JOINT;BALL | |
| 13. | 0780711 | [1] | SPRING | |
| 14. | 0780712 | [1] | HOLDER;SPRING | |
| 15. | Z940144 | [1] | RING;RETAINING | |
| 16. | 0780713 | [3] | PIN | |
| 17. | 0780714 | [1] | HOLDER | |
| 18. | 0780715 | [1] | HOLDER;SPRING | |
| 19. | 0780716 | [4] | PLATE;FRICTION | |
| 20. | 0780717 | [5] | PLATE | |
| 21. | 0783101 | [10] | SPRING | |
| 22. | 0780719 | [1] | PISTON | |
| 23. | 0783102 | [1] | PLATE | |
| 24. | 0780721 | [2] | PIVOT | |
| 25. | 0780722 | [1] | PISTON | |
| 26. | 4506406 | [2] | O-RING | |
| 27. | 0780723 | [1] | COVER;REAR | |
| 28. | 0780724 | [1] | O-RING | |
| 29. | 0780725 | [2] | PIN | |
| 30. | 0780726 | [1] | PLATE;VALVE | |
| 31. | 0780727 | [3] | VALVE;CHECK | |
| 32. | 0780728 | [3] | SPRING | |
| 33. | 4506408 | [3] | O-RING | |
| 34. | 0780729 | [1] | SPACER | |
| 35. | Z991347 | [1] | RING;RETAINING | |
| 36. | 0780730 | [1] | RACE;INNER | |
| 37. | 0780731 | [1] | RING;PISTON | |
| 38. | 0783103 | [1] | RING;PISTON | |
| 39. | 0780733 | [1] | SEAL | |
| 40. | 4506409 | [3] | O-RING | |
| 41. | 0780734 | [4] | BOLT;SOCKET | |
| 42. | 0780735 | [4] | BOLT;SOCKET | |
| 43. | 4506418 | [2] | O-RING | |
| 44. | 0780736 | [2] | PLUG | |
| 45. | 0780737 | [1] | RETAINER | |
| 46. | 0780738 | [1] | THROTTLE | |
| 47. | 0780739 | [1] | THROTTLE | |
| 48. | 4446201 | [2] | VALVE:RELIEF | 0780800 |
| 49. | 4446202 | [1] | VALVE;PILOT | 0780900 |
| 50. | 0780740 | [1] | O-RING | |
| 51. | 0159105 | [4] | BOLT;SOCKET | |
| 52. | 4400789 | [1] | VALVE;BRAKE | 0781000 |
