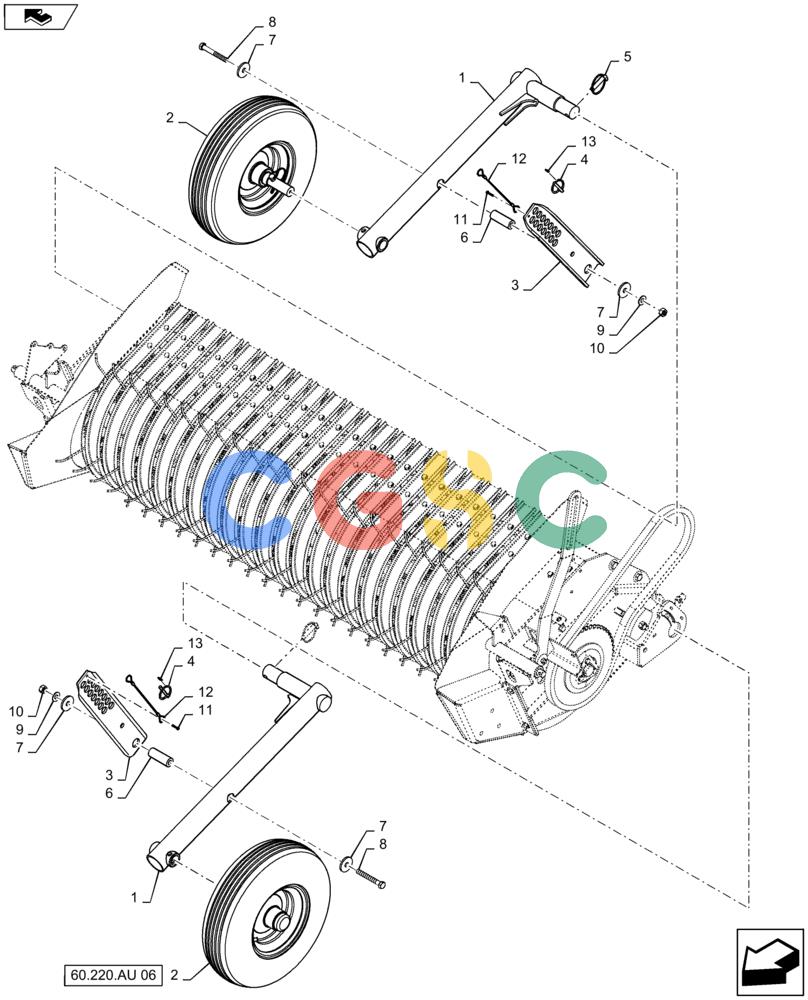

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (60.220.AU[07]) - VAR - 726822 - PICK-UP WHEEL ASSY, NO TOOLS, STANDARD PICKUP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84193264
|
[2] |
SUPPORT
|
NH
|
| 2. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Pickup Wheel
|
| 3. |
84337334
|
[2] |
CHANNEL
|
PLO
|
| 4. |
270184
|
[2] |
LINCH PIN,6.35mm OD
|
NH
Klik
|
| 5. |
87056822
|
[2] |
PIN
|
PA
Klik
|
| 6. |
84220857
|
[2] |
SPACER,12.7mm ID x 25.4mm OD x 70.5mm L
|
NH
|
| 7. |
9511052
|
[4] |
WASHER,13.5mm ID x 44mm OD x 4mm Thk
|
NH
|
| 8. |
86508581
|
[2] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
| 9. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 10. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 11. |
80756
|
[2] |
COTTER PIN,1/8" x 3/4"
|
NH
|
| 12. |
47431237
|
[2] |
WIRE ROPE
|
NH
|
| 13. |
84012277
|
[2] |
KEY RING
|
ZED
|
