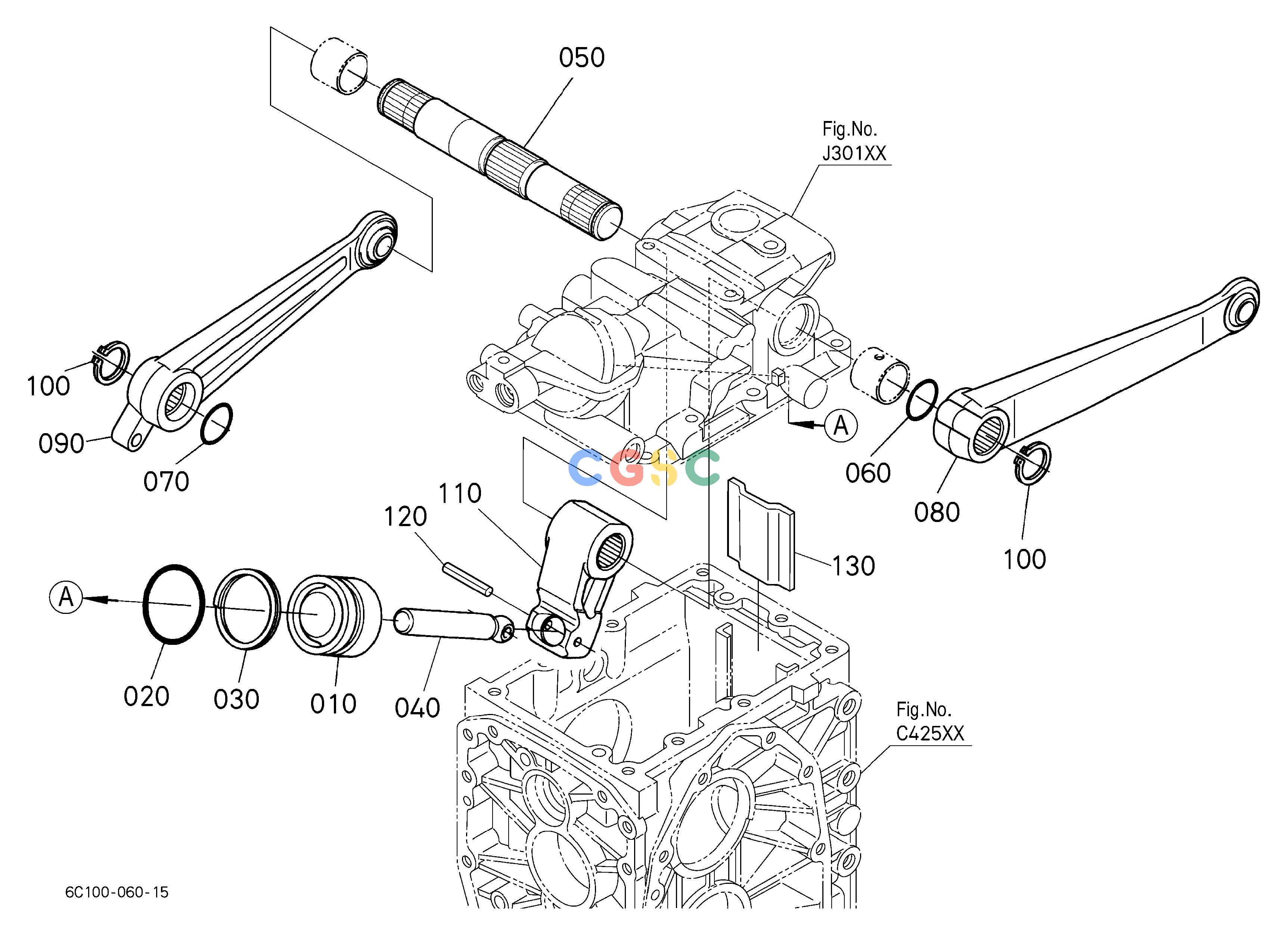

久保田零件查询J31000 HYDRAULIC PISTON/LIFT ARM HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A32036410
|
[1] |
PISTON,HYD.
|
1.3420(lbs); 0.610
|
| 020. |
0481000550
|
[1] |
O RING
|
0.0176(lbs); 0.008
|
| 030. |
6877321560
|
[1] |
RING,BACK UP
|
0.0110(lbs); 0.005
|
| 040. |
6A32036430
|
[1] |
ROD,HYD.PISTON
|
0.7700(lbs); 0.350
|
| 050. |
6C12036580
|
[1] |
SHAFT,HYD.ARM
|
2.8380(lbs); 1.290
|
| 060. |
0481600300
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 070. |
0481600320
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
6C12036510
|
[1] |
ARM,LIFT LH
|
3.6520(lbs); 1.660
|
| 090. |
6C12036520
|
[1] |
ARM,LIFT RH
|
3.5200(lbs); 1.600
|
| 100. |
0461200300
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0066(lbs); 0.003
|
| 110. |
6A32036453
|
[1] |
ARM,HYDRAULIC
|
1.8700(lbs); 0.850
|
| 120. |
0541100640
|
[1] |
PIN,SPRING
|
0.0132(lbs); 0.006
|
| 130. |
6C04036750
|
[1] |
STOPPER
|
0.4884(lbs); 0.222
|
