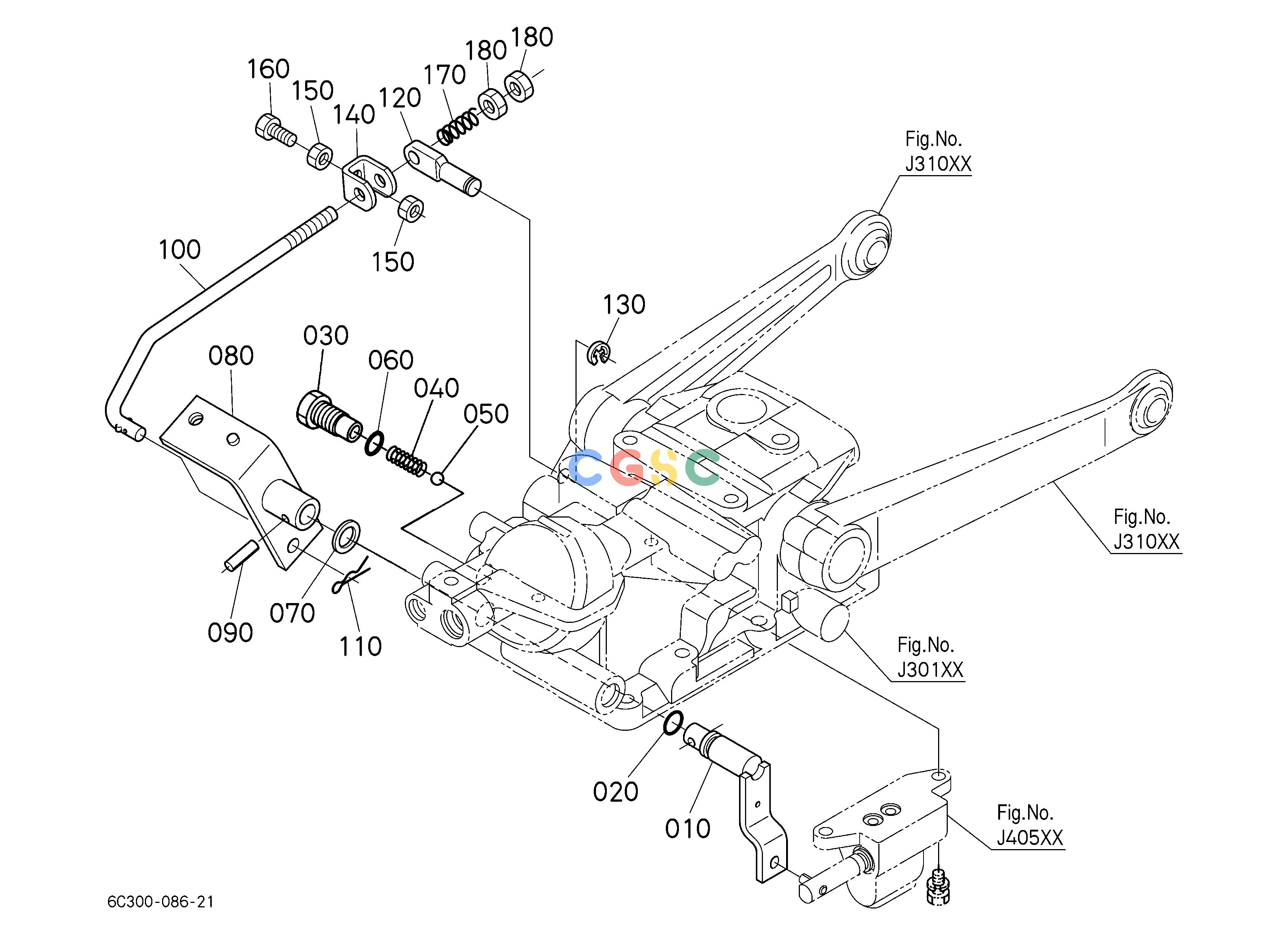

久保田零件查询J33000 FEED BACK LEVER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C06036934
|
[1] |
SHAFT,CONTROL LEVER
|
0.2200(lbs); 0.100
|
| 020. |
0481600110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6C09036060
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
| 040. |
K351136080
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
0481600140
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
6C06036820
|
[1] |
COLLAR,ARM HYD.
|
0.0022(lbs); 0.001
|
| 080. |
6C06036270
|
[1] |
ARM,CONTROL LEVER
|
0.4840(lbs); 0.220
|
| 090. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 100. |
6C09036234
|
[1] |
ROD,FEED BACK
|
0.1804(lbs); 0.082
|
| 110. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 120. |
6C09036220
|
[1] |
PIN,FEED BACK
|
0.0660(lbs); 0.030
|
| 130. |
0461350080
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 140. |
6661136320
|
[1] |
INTERLOCKER
|
0.0484(lbs); 0.022
|
| 150. |
0211250080
|
[2] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 160. |
0115350822
|
[1] |
HEX.BOLT
|
0.0242(lbs); 0.011
|
| 170. |
6800163250
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 180. |
6C09036460
|
[2] |
NUT
|
0.0132(lbs); 0.006
|
