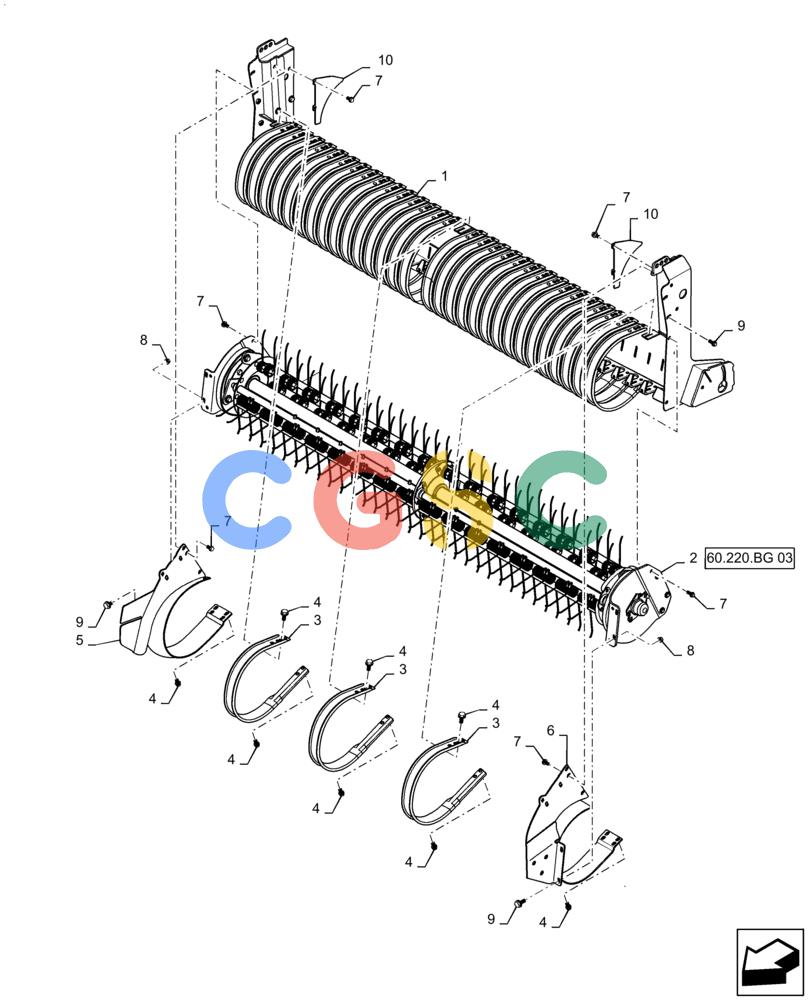

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (60.220.BD[03]) - VAR - 726861, 726827 - 2M PICKUP ASSEMBLY, 4-BAR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84428114
|
[1] |
FRAME
|
PLO
2.0M Pickup
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
2.0M Pick Reel, 4-Bar
|
| 3. |
84310057
|
[31] |
MOUNT
|
NH
|
| 4. |
87039762
|
[74] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 5. |
47457010
|
[1] |
GUIDE
|
NH
RH
|
| 5. |
47881311
|
[1] |
GUARD
|
NH
RH
|
| 6. |
47457007
|
[1] |
GUIDE
|
NH
LH
|
| 6. |
47881438
|
[1] |
GUARD
|
NH
LH
|
| 7. |
86050286
|
[16] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 8. |
9804278
|
[4] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 9. |
9804262
|
[4] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 10. |
84427606
|
[2] |
SHIELD
|
NH
|
