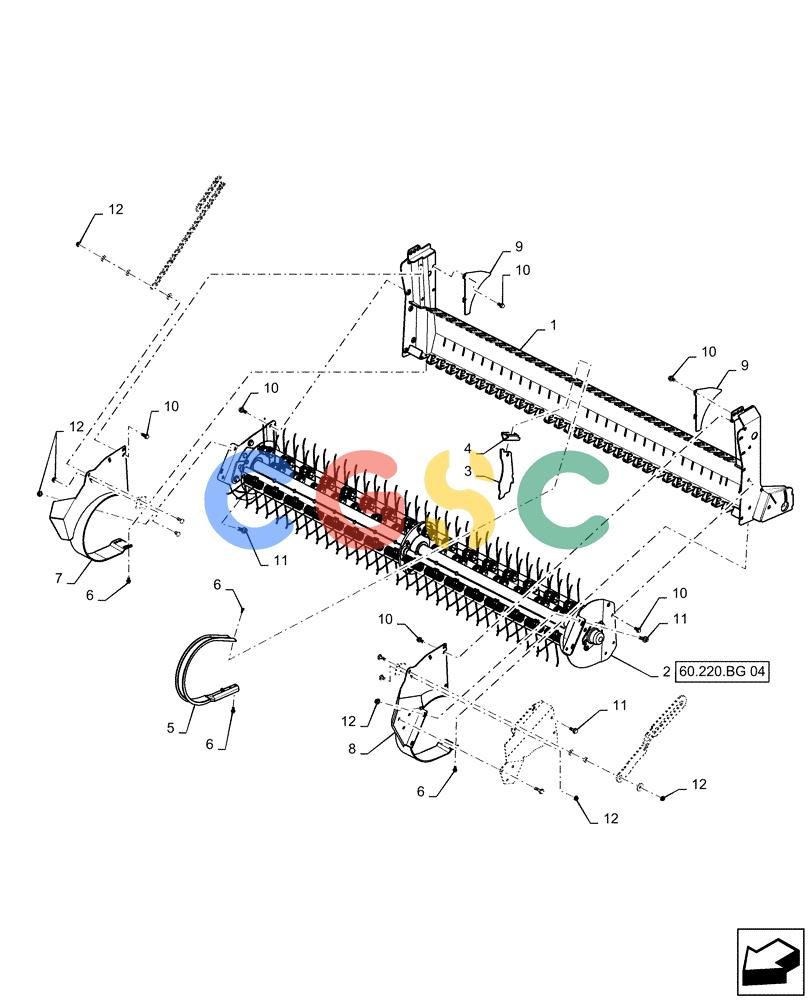

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (60.220.BD[04]) - VAR - 726918 - 2M PICKUP ASSEMBLY, 5-BAR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84428115
|
[1] |
FRAME
|
PLO
Pickup
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
2.0M Pickup Reel, 5-Bar
|
| 3. |
84292972
|
[31] |
DIVIDER
|
NH
|
| 4. |
84471017
|
[31] |
BRACKET
|
NH
|
| 5. |
84310057
|
[31] |
MOUNT
|
NH
|
| 6. |
87039762
|
[132] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 7. |
47457010
|
[1] |
GUIDE
|
NH
RH
|
| 7. |
47881311
|
[1] |
GUARD
|
NH
RH
|
| 8. |
47457007
|
[1] |
GUIDE
|
NH
LH
|
| 8. |
47881438
|
[1] |
GUARD
|
NH
LH
|
| 9. |
84427606
|
[2] |
SHIELD
|
NH
|
| 10. |
86050286
|
[6] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 11. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 12. |
9804278
|
[9] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
