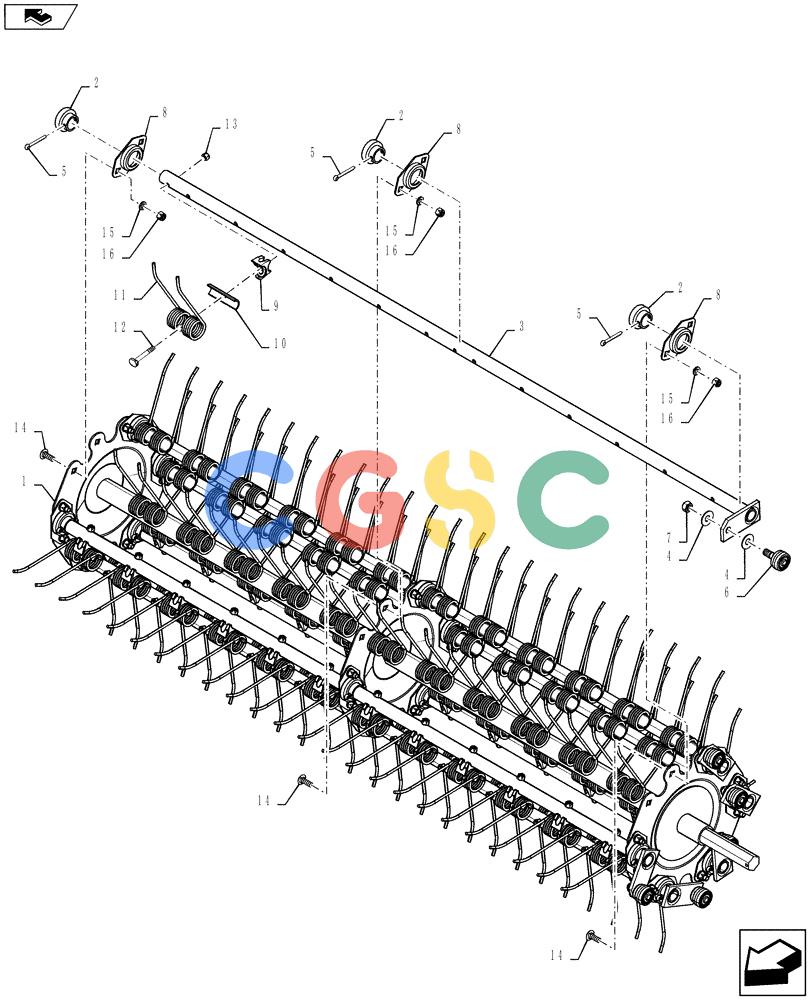

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (60.220.BG[01]) - VAR - 726861 - 1.5M STANDARD PICK-UP REEL, 6-BAR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47442161
|
[1] |
REEL
|
NH
|
| 2. |
86641856
|
[16] |
BEARING,27.1 mm ID x 47 mm OD x 25.4 mm
|
PA
Superseded by part number: 54770
|
| 3. |
84574062
|
[6] |
TINE BAR
|
NH
|
| 4. |
84420719
|
[12] |
WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk
|
PLO
|
| 5. |
136521
|
[18] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
|
| 6. |
84350126
|
[6] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 7. |
88130
|
[6] |
NUT,1/2"-20, GC
|
NH
|
| 8. |
54695
|
[18] |
BEARING HOUSING
|
NH
|
| 9. |
84427925
|
[72] |
TOOTH
|
PLO
|
| 10. |
134921
|
[72] |
BRACKET
|
NH
Superseded by part number: 87643386
|
| 11. |
84133738
|
[72] |
TINE
|
PLO
|
| 12. |
130891
|
[72] |
BOLT,Tine, 5/16" - 18 x 2"
|
NH
Superseded by part number: 87642989
|
| 13. |
86629544
|
[72] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 14. |
86508748
|
[36] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5
|
BAS
|
| 15. |
80680
|
[36] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 16. |
9637692
|
[36] |
NUT,3/8"-16, GB
|
NH
|
