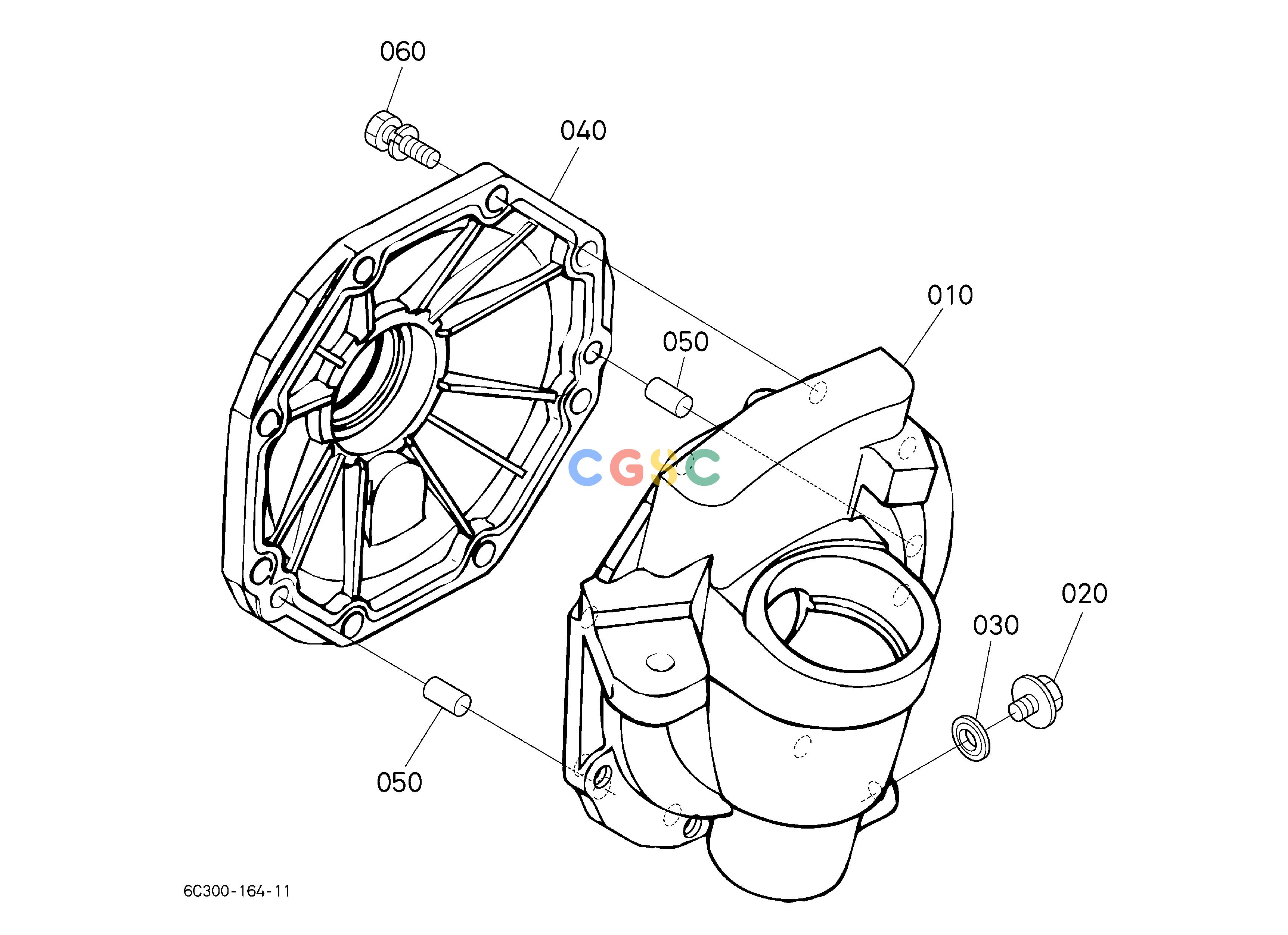

久保田零件查询G12700 FRONT AXLE CASE RH FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C12056323
|
[1] |
CASE,GEAR RH
|
9.7900(lbs); 4.450
|
| 010. |
6C12056324
|
[1] |
CASE,GEAR RH
|
9.7900(lbs); 4.450
|
| 020. |
0177451010
|
[1] |
BOLT,FLANGE
|
0.0374(lbs); 0.017
|
| 030. |
0471701000
|
[1] |
WASHER,SEAL
|
0.0022(lbs); 0.001
|
| 040. |
6A32056343
|
[1] |
COVER(CASE,GEAR)
|
1.5400(lbs); 0.700
|
| 050. |
0501201020
|
[2] |
PIN,STRAIGHT
|
0.0286(lbs); 0.013
|
| 060. |
0113351028
|
[8] |
BOLT,SEMS
|
0.0594(lbs); 0.027
|
| 060. |
0113351030
|
[8] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
