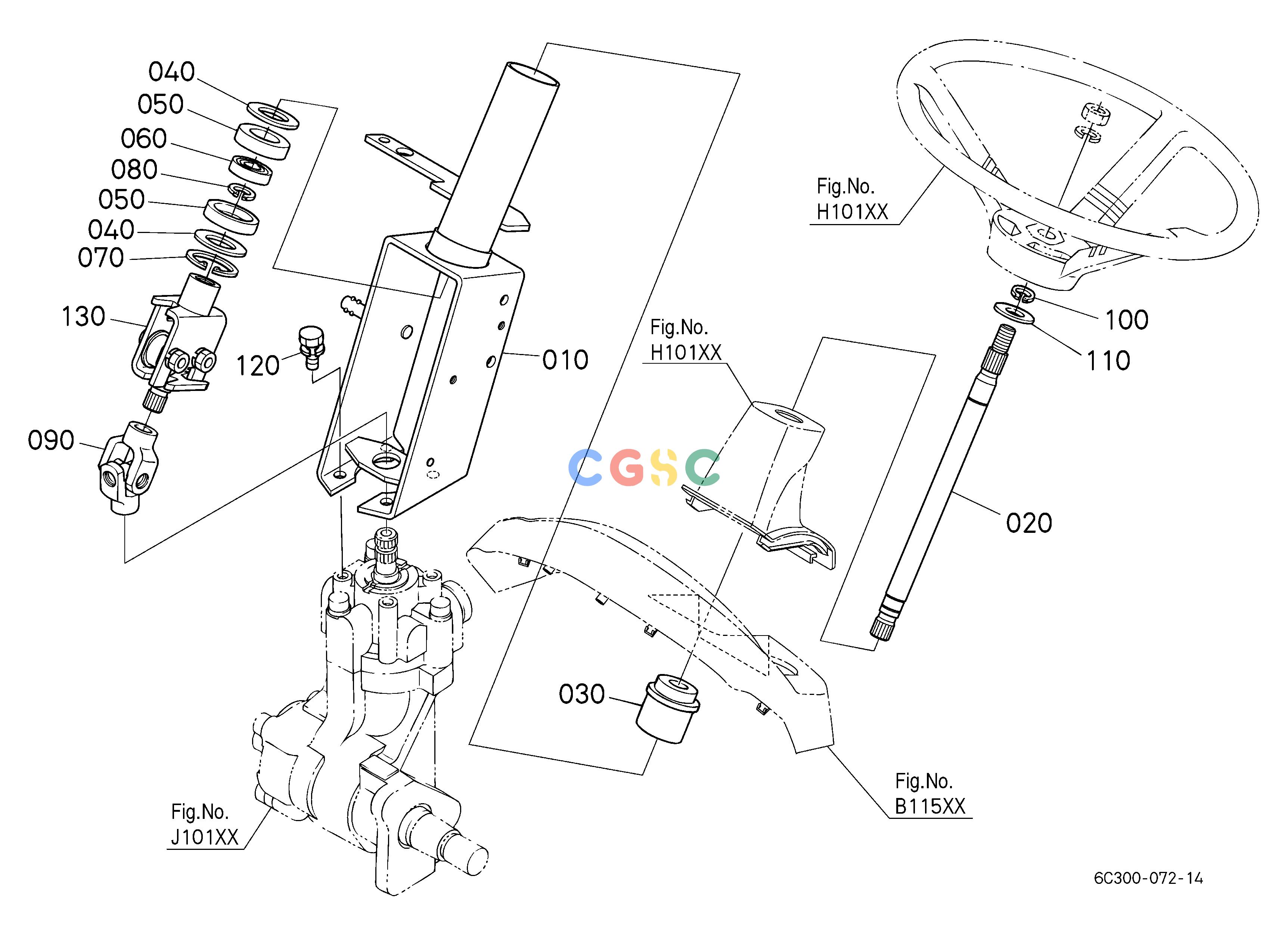

久保田零件查询H10500 STEERING POST STEERINGEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30041323
|
[1] |
POST,STEERING
|
3.8720(lbs); 1.760
|
| 010. |
6C30041324
|
[1] |
POST,STEERING
|
3.8720(lbs); 1.760
|
| 010. |
6C30041325
|
[1] |
POST,STEERING
|
3.8720(lbs); 1.760
|
| 010. |
6C30041326
|
[1] |
STEERING POST
|
3.7840(lbs); 1.720
|
| 010. |
6C30041328
|
[1] |
POST,STEERING
|
3.7840(lbs); 1.720
|
| 020. |
6C30041630
|
[1] |
SHAFT,STEERING
|
0.8140(lbs); 0.370
|
| 030. |
TC05041510
|
[1] |
BUSH
|
0.0880(lbs); 0.040
|
| 040. |
6C04041390
|
[2] |
COLLAR
|
0.0154(lbs); 0.007
|
| 050. |
6C04041523
|
[2] |
COVER,BEARING
|
0.0154(lbs); 0.007
|
| 060. |
0812106002
|
[1] |
BEARING,BALL
|
0.0660(lbs); 0.030
|
| 070. |
0461100420
|
[1] |
CIR-CLIP,INTERNAL
|
0.0132(lbs); 0.006
|
| 080. |
0461200150
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6C04241330
|
[1] |
JOINT,UNIVERSAL
|
0.5940(lbs); 0.270
|
| 100. |
0461200160
|
[1] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
| 110. |
0401350160
|
[1] |
WASHER,PLAIN
|
0.0242(lbs); 0.011
|
| 120. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 130. |
6C30041601
|
[1] |
ASSY SHAFT,STEERING
|
0.0000(lbs); 0.000
|
