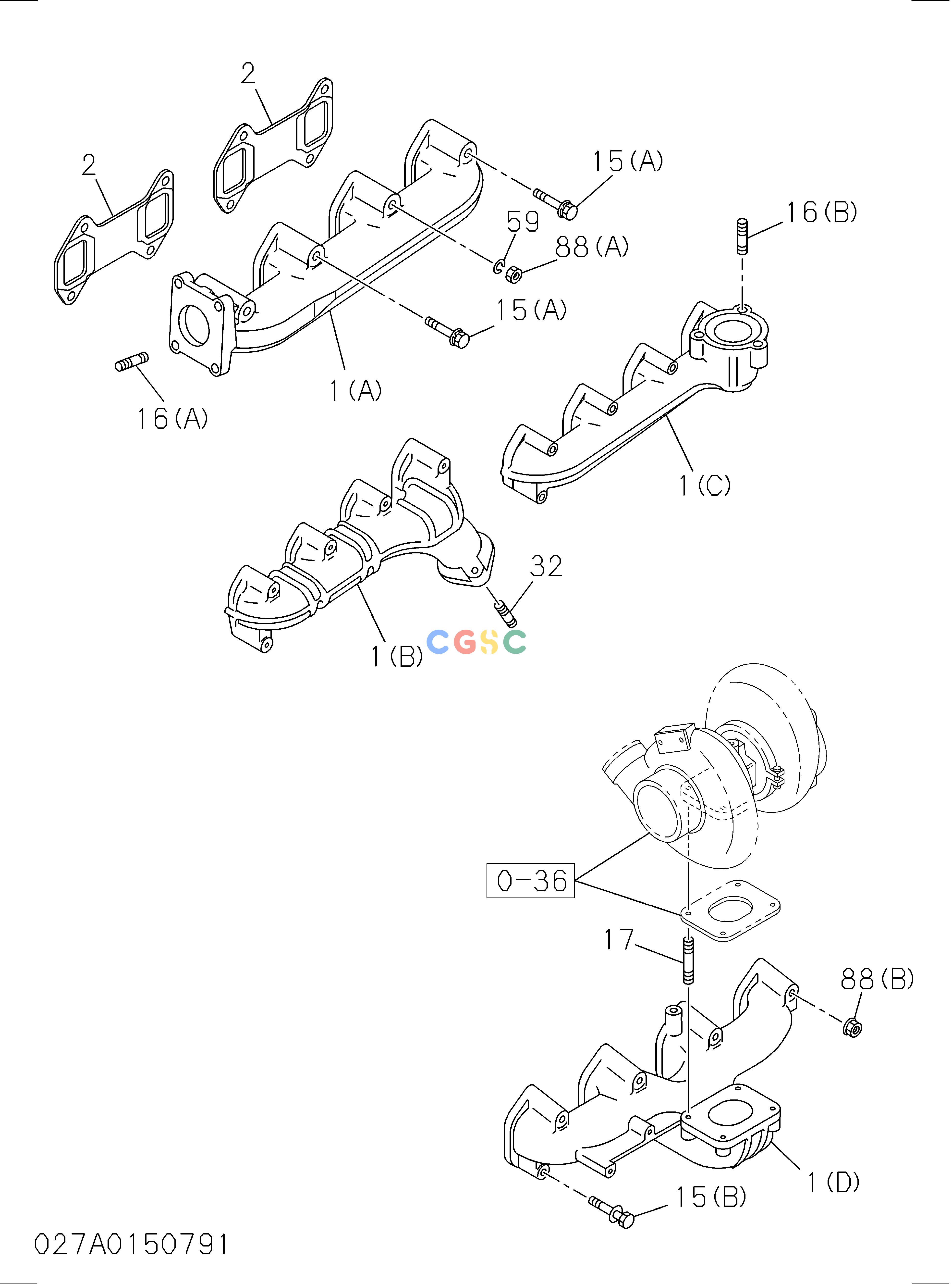

日立零件查询（EX135USR）027: EXHAUST MANIFOLD Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
524 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(D). | 8943660210 | [1] | MANIFOLD; EXHAUST | |
| 002. | 8944046100 | [2] | GASKET; EXH MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 015(A). | 8943185540 | [2] | BOLT; EXH MANIF | M8X63 W/PL WASHER |
| 015(B). | 8943185550 | [2] | BOLT; EXH MANIF | M8X75 W/PL WASHER |
| 017. | 8942573190 | [4] | STUD; MANIF TO TURBOCHARGER | C M8X22 L=33 |
| 017. | 8941417731 | [4] | STUD; MANIF TO TURBOCHARGER | C M8X22 L=33 |
| 017. | 8973780610 | [4] | STUD; MANIF TO TURBOCHARGER | M8X22 L=33 |
| 088(B). | 8941704860 | [4] | NUT; EXH PIPE | C |
| 088(B). | 8970614011 | [4] | NUT; EXH PIPE | |
