日立零件查询（EX135USR）028: VENTILATION SYSTEM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次

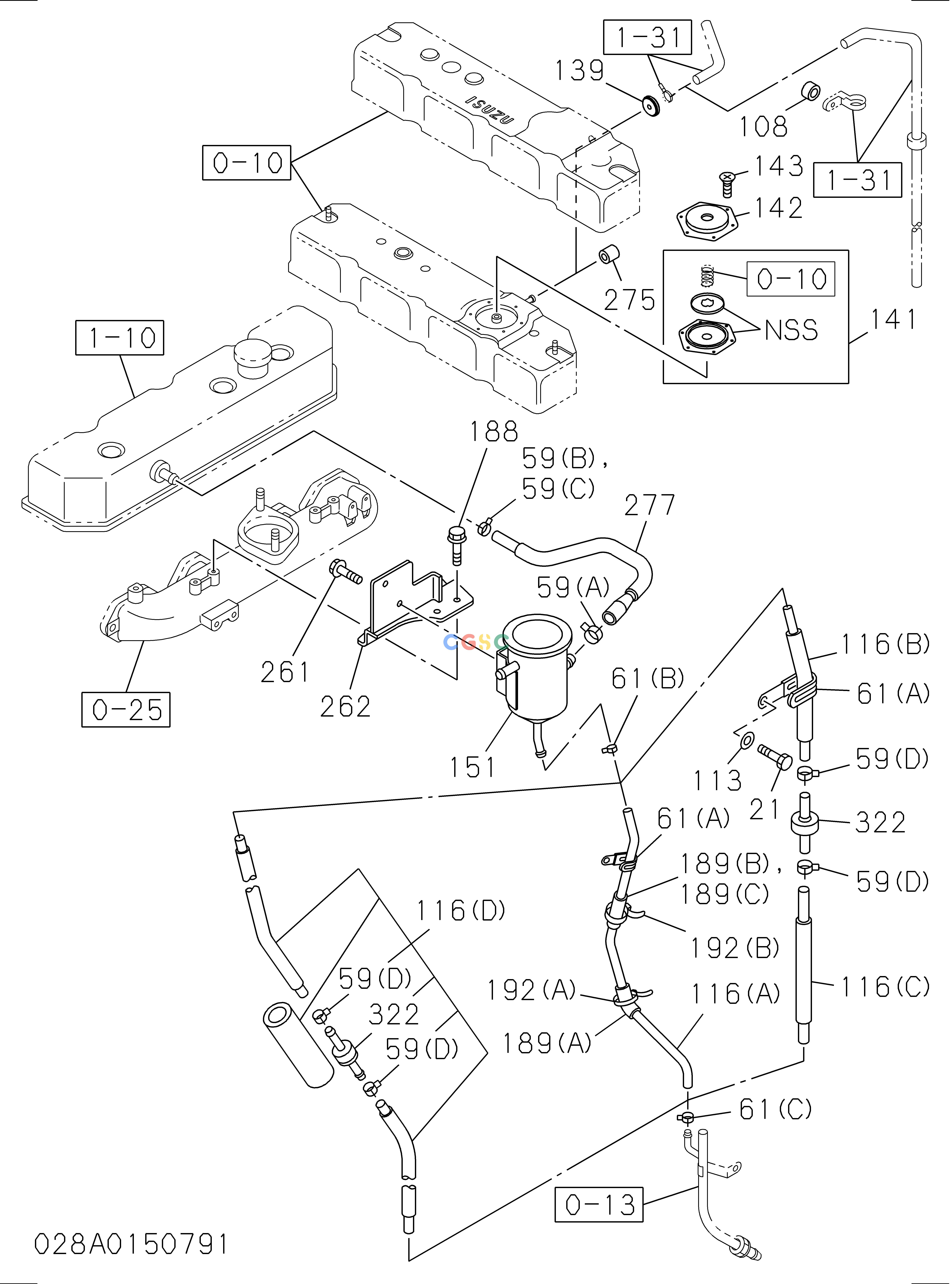

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(A). | 8970211722 | [1] | BREATHER; AIR | |
| 015. | 9091645080 | [2] | WASHER; PL,BREATHER | |
| 018. | 5097040331 | [1] | CLIP; RUBBER HOSE,AIR BREATHER | |
| 029. | 8941625680 | [2] | CLIP; RUBBER HOSE,BREATHER | |
| 091. | 0500408160 | [2] | BOLT; AIR BREATHER | A M8X16 W/LK WASHER |
| 091. | 0280808120 | [2] | BOLT; AIR BREATHER | A M8X12 FLANGE |
| 091. | 0280508120 | [2] | BOLT; AIR BREATHER | M8X12 FLANGE |
| 094. | 8944338711 | [1] | HOSE; BREATHER TO PIPE | A |
| 094. | 8972242050 | [1] | HOSE; BREATHER TO PIPE | |
| 111. | 0500408250 | [1] | BOLT; CLIP | A M8X25 W/LK WASHER |
| 111. | 0280808220 | [1] | BOLT; CLIP | M8X22 FLANGE |
| 113. | 9091606080 | [1] | WASHER; PL,CLIP | ID=8.4 |
| 167. | 8941376820 | [1] | PIPE; BREATHER | L=670 S,B,L=1200 |
