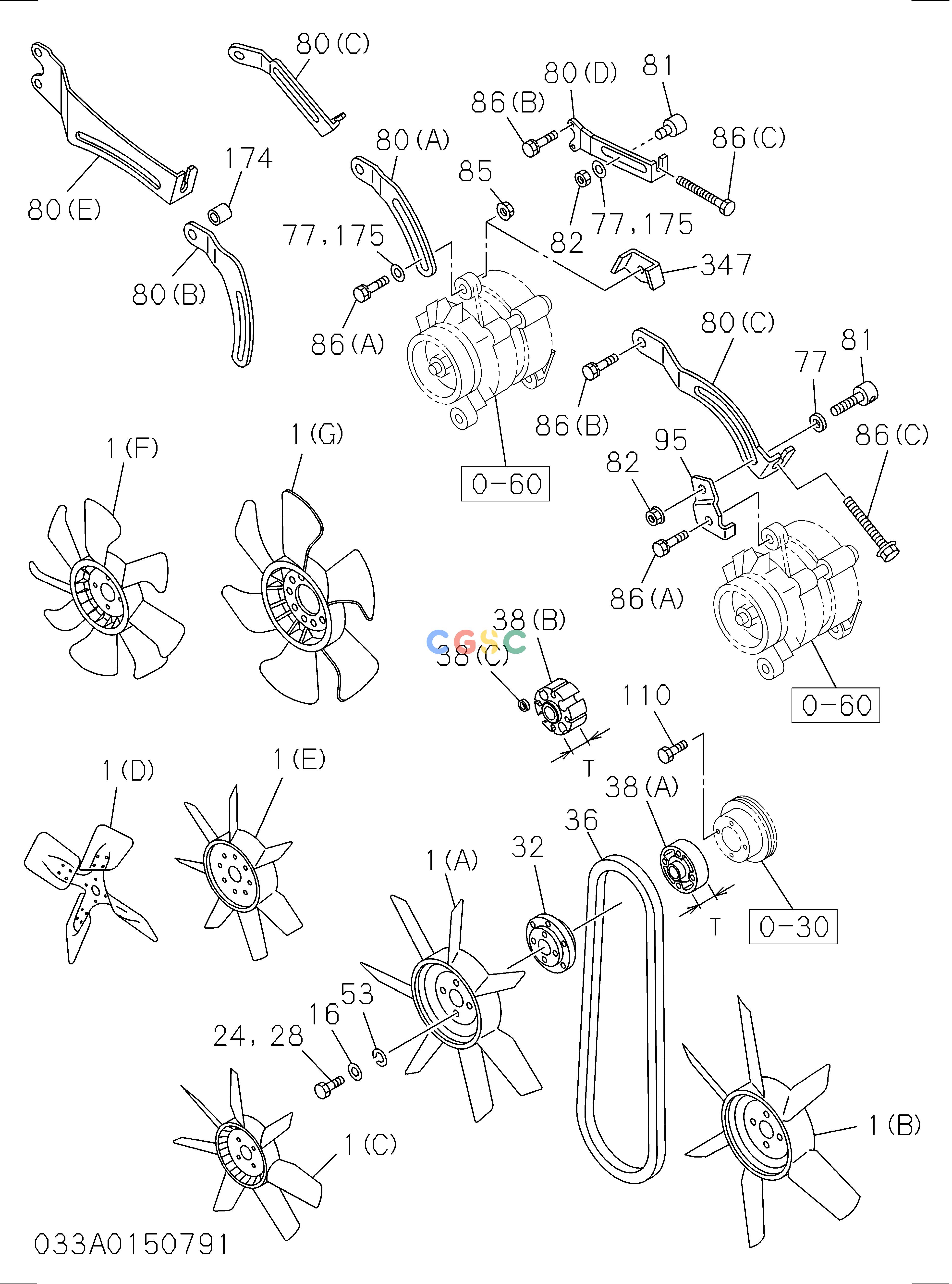

日立零件查询（EX135USR）033: FAN AND FAN BELT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
132 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(F). | 8971616001 | [1] | FAN; COOLING | D=540-8-SUCT |
| 016. | 9091606080 | [4] | WASHER; PL,COOLING FAN | A ID=8.4 |
| 016. | 0916106080 | [4] | WASHER; PL,COOLING FAN | ID=8.4 |
| 024. | 5090300421 | [4] | BOLT; FAN | M8X85 W/LK WASHER |
| 036. | 1136713140 | [1] | BELT; COOLING FAN | 2-PIECES SET,L=1255 |
| 038(A). | 1136420360 | [1] | SPACER; FAN | T=25.0 |
| 038(A). | 5136420191 | [1] | SPACER; FAN | T=35.5 |
| 077. | 9091647120 | [1] | WASHER; PL,GEN TO ADJ PLATE | A ID=12.5 OD=32 |
| 077. | 0916147120 | [1] | WASHER; PL,GEN TO ADJ PLATE | ID=12.5 OD=32 |
| 080(D). | 1136741192 | [1] | PLATE; ADJ | |
| 081. | 1136741600 | [1] | PIECE; SLIDING | |
| 082. | 0911501120 | [1] | NUT; ADJ PLATE | A M12 |
| 082. | 0911801120 | [1] | NUT; ADJ PLATE | M12 |
| 086(C). | 1090091131 | [1] | BOLT; ADJ | M10X135 |
| 110. | 9034906100 | [2] | SCREW; PULLEY | M6X10 |
