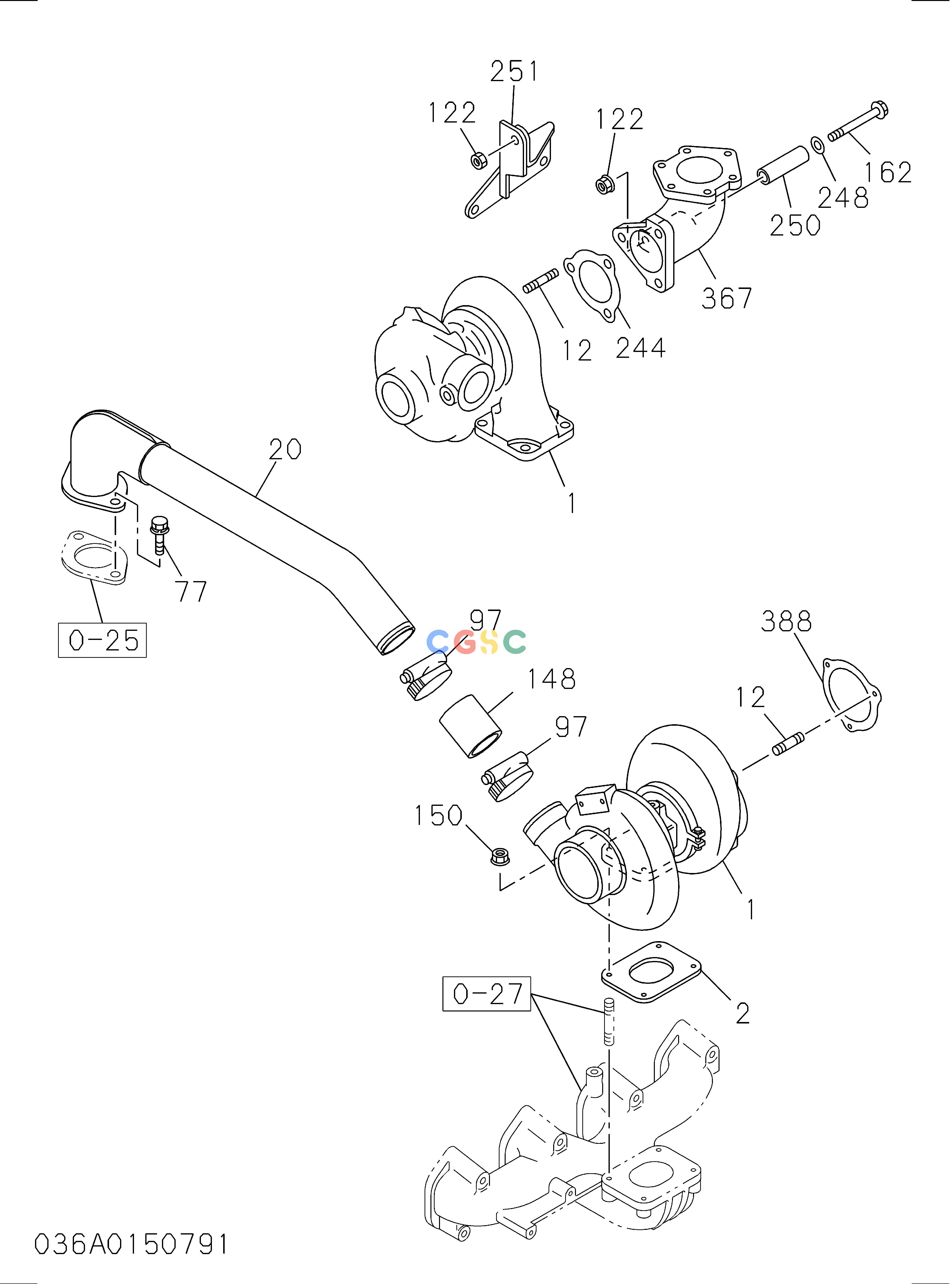

日立零件查询（EX135USR）036: TURBOCHARGER SYSTEM Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 8971159721 | [1] | TURBOCHARGER ASM | SEE FIG-NO 0-37 FOR COMPONENT. |
| 002. | 8943690230 | [1] | GASKET; TURBOCHARGER TO EXH MANIF | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 012. | 8941564702 | [3] | STUD; TURBOCHARGER | A M8X25 L=36 |
| 012. | 8944762820 | [3] | STUD; TURBOCHARGER | M8X25 L=36 |
| 020. | 8943648661 | [1] | PIPE; INL,TURBOCHARGER OUT | |
| 020. | 8972234342 | [1] | PIPE; INL,TURBOCHARGER OUT | |
| 077. | 0501510250 | [2] | BOLT; INL DUCT | A M10X25 W/LK&PLWASHER |
| 077. | 0287810250 | [2] | BOLT; INL DUCT | A M10X25 FLANGE |
| 077. | 0287510250 | [2] | BOLT; INL DUCT | M10X25 FLANGE |
| 097. | 8943169910 | [2] | CLIP; HOSE,TURBOCHARGER,INL | ID=50-69 |
| 133(A). | 8971376400 | [1] | PIPE; OIL DRAIN,TURBOCHARGER | |
| 133(A). | 8972221210 | [1] | PIPE; OIL DRAIN,TURBOCHARGER | |
| 134(A). | 8943690220 | [1] | GASKET; OIL PIPE,TURBOCHARGER DRAIN | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 134(B). | 8943706630 | [1] | GASKET; OIL PIPE,TURBOCHARGER DRAIN | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 135. | 0500408200 | [1] | BOLT; OIL PIPE TO C/BL | A M8X20 W/LK WASHER |
| 135. | 0286808200 | [1] | BOLT; OIL PIPE TO C/BL | A M8X20 FLANGE |
| 135. | 0286508200 | [1] | BOLT; OIL PIPE TO C/BL | M8X20 FLANGE |
| 148. | 1093607820 | [1] | HOSE; TURBOCHARGER,INL | |
| 150. | 8941704860 | [4] | NUT; INL DUCT | A |
| 150. | 8970614011 | [4] | NUT; INL DUCT | |
| 401(A). | 0500406180 | [2] | BOLT; OIL PIPE,TURBO | A M6X18 W/LK WASHER |
| 401(A). | 0280806160 | [2] | BOLT; OIL PIPE,TURBO | A M6X16 FLANGE |
| 401(A). | 0280506160 | [2] | BOLT; OIL PIPE,TURBO | M6X16 FLANGE |
