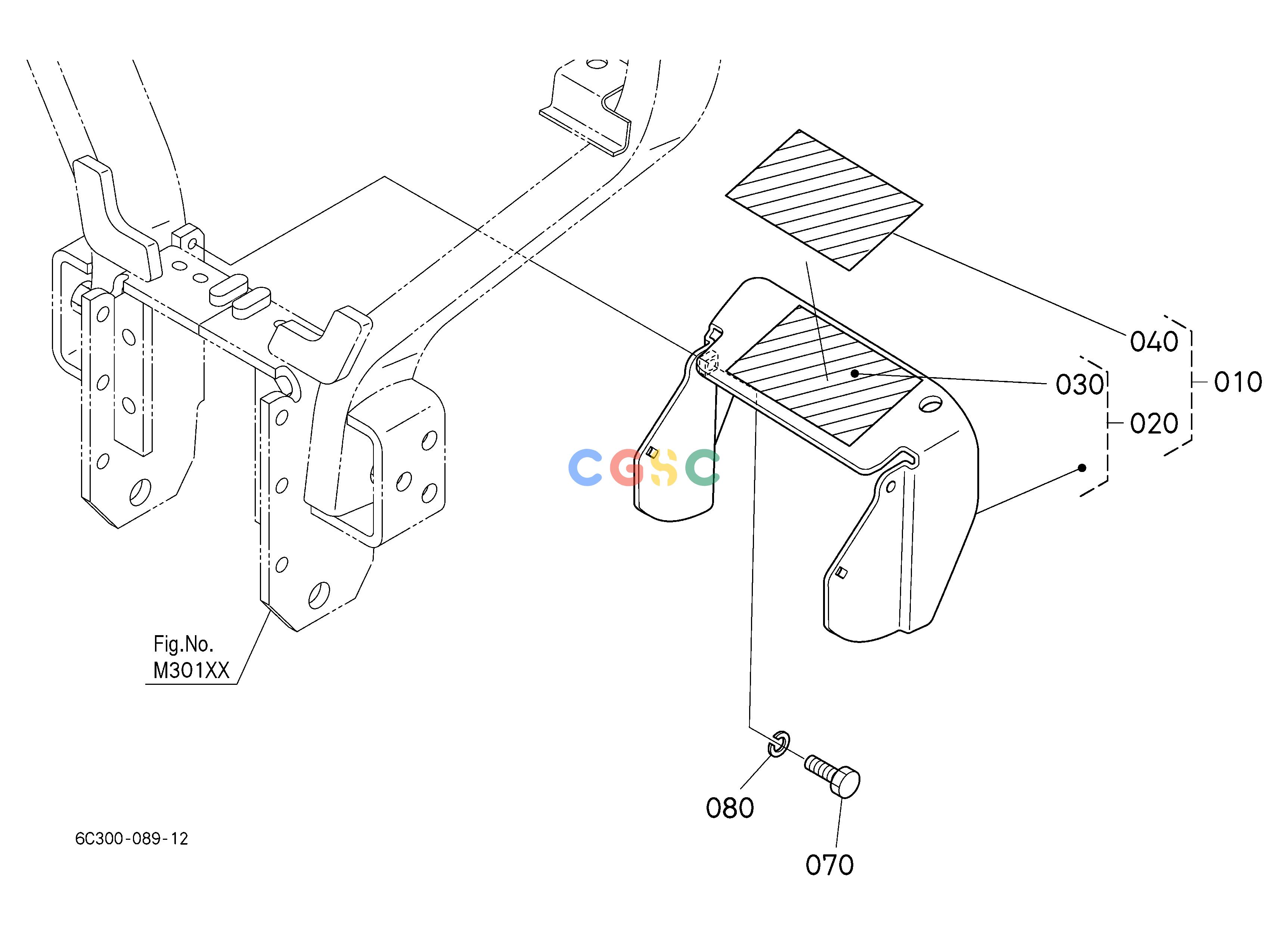

久保田零件查询L12500 PTO PROTECTOR TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C14072000
|
[1] |
KIT COVER,PTO (B)
|
3.0360(lbs); 1.380
|
| 010. |
6C14072002
|
[1] |
KIT COVER,PTO (B)
|
3.0360(lbs); 1.380
|
| 010. |
6C14072003
|
[1] |
KIT COVER,PTO (B)
|
3.0360(lbs); 1.380
|
| 020. |
6C14072100
|
[1] |
KIT COVER,PTO (A)
|
2.9920(lbs); 1.360
|
| 020. |
6C14072102
|
[1] |
KIT COVER,PTO (A)
|
2.9920(lbs); 1.360
|
| 020. |
6C14072103
|
[1] |
KIT COVER,PTO (A)
|
2.9920(lbs); 1.360
|
| 030. |
TA04049593
|
[1] |
LABEL,PTO WARNING
|
0.0022(lbs); 0.001
|
| 030. |
6C20049590
|
[1] |
LABEL,DRAWBARPTO WARNING
|
0.0066(lbs); 0.003
|
| 040. |
TA04149590
|
[1] |
LABEL,PTO WARNING
|
0.0110(lbs); 0.005
|
| 040. |
6C20149590
|
[1] |
LABEL,DRAWBARPTO WARNING
|
0.0066(lbs); 0.003
|
| 070. |
0115350820
|
[2] |
HEX.BOLT
|
0.0264(lbs); 0.012
|
| 080. |
0451250080
|
[2] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
