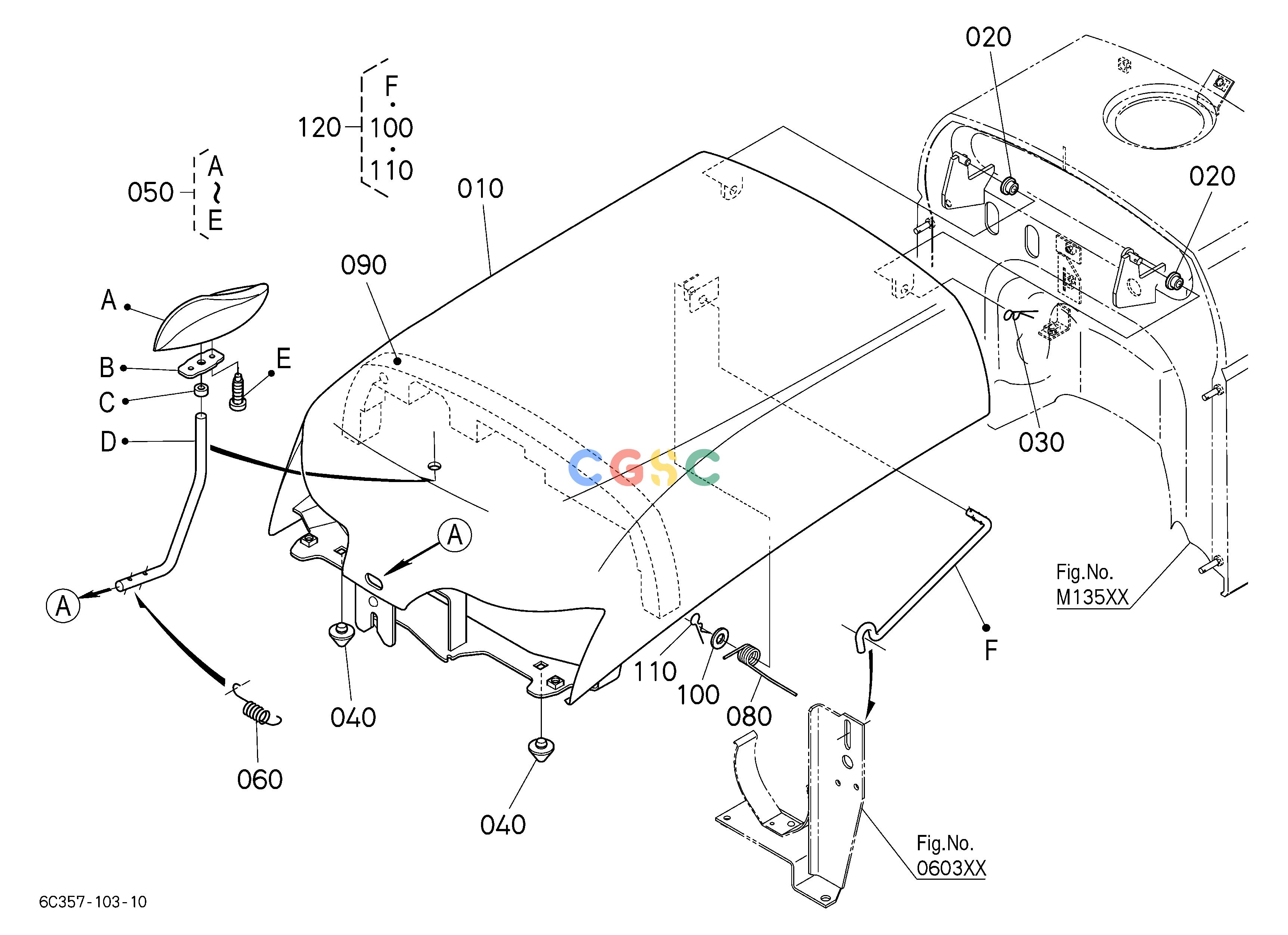

久保田零件查询M10501 BONNET ## S.No.<=31032 NOTE:ORDER BY Fig.No.M10502 REF.No.010,070,080. HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30054100
|
[1] |
COMP.BONNET
|
12.0120(lbs); 5.460
|
| 010. |
6C30054102
|
[1] |
COMP.BONNET
|
17.6000(lbs); 8.000
|
| 020. |
6A10054192
|
[2] |
BUSH
|
0.0022(lbs); 0.001
|
| 030. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 040. |
6C09054162
|
[2] |
CUSHION
|
0.0286(lbs); 0.013
|
| 050. |
6A83054120
|
[1] |
COMP.HANDLE,MASCOT
|
0.2640(lbs); 0.120
|
| 060. |
6C04054150
|
[1] |
SPRING
|
0.0132(lbs); 0.006
|
| 080. |
6A34054512
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 080. |
6A34054513
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 090. |
6C30054461
|
[1] |
TAPE,BONNET
|
0.0000(lbs); 0.000
|
| 090. |
6C30054462
|
[1] |
TAPE,BONNET
|
0.1100(lbs); 0.050
|
| 100. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 110. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 120. |
6C30088140
|
[1] |
KIT.ROD,BONNET
|
0.2464(lbs); 0.112
|
