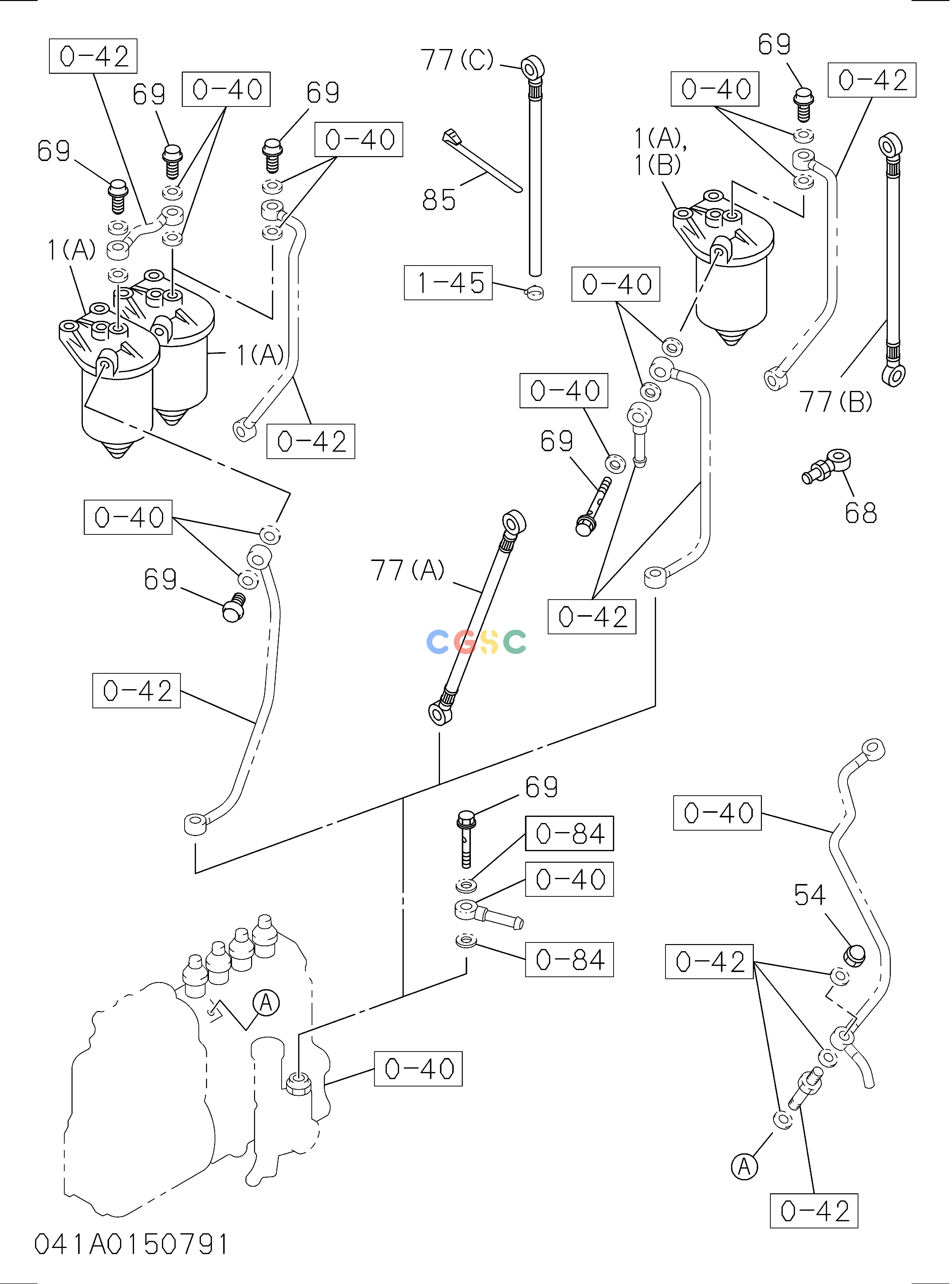

日立零件查询（EX135USR）041: FUEL FILTER AND BRACKET Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(B). | 8941517451 | [1] | FILTER ASM; FUEL | A |
| 001(B). | 8971798541 | [1] | FILTER ASM; FUEL | |
| 002(B). | 8944147963 | [1] | ELEMENT KIT; FUEL FILTER | C |
| 002(B). | 8971725491 | [1] | ELEMENT KIT; FUEL FILTER | |
| 008. | 5132120751 | [1] | COVER; FUEL FILTER | |
| 008. | 8941329480 | [1] | COVER; FUEL FILTER | |
| 008. | 8971798550 | [1] | COVER; FUEL FILTER | |
| 009. | 9095720140 | [2] | GASKET; EYE JOINT | A ID=14.2 OD=23.0 |
| 009. | 1096300850 | [2] | GASKET; EYE JOINT | ID=14.2 OD=19.2 |
| 010. | 9132600562 | [1] | VALVE; OVERFLOW,FUEL FILTER | |
| 010. | 1132600470 | [1] | VALVE; OVERFLOW,FUEL FILTER | |
| 020. | 5154112231 | [1] | JOINT; EYE,FUEL FILTER | |
| 040(B). | 5197550010 | [1] | BRACKET; FUEL FILTER | |
| 045(B). | 0501410350 | [2] | BOLT; FUEL FILTER | A M10X35 W/LK&PLWASHER |
| 045(B). | 0286810300 | [2] | BOLT; FUEL FILTER | A M10X30 FLANGE |
| 045(B). | 0286510300 | [2] | BOLT; FUEL FILTER | M10X30 FLANGE |
| 047. | 0501408250 | [2] | BOLT; BRKT,FUEL FILTER | A M8X25 W/LK&PLWASHER |
| 047. | 0280808250 | [2] | BOLT; BRKT,FUEL FILTER | A M8X25 FLANGE |
| 047. | 0280508250 | [2] | BOLT; BRKT,FUEL FILTER | M8X25 FLANGE |
| 054. | 1094680021 | [1] | NUT; CAP,OVERFLOW VLV | |
| 069. | 9099063251 | [2] | BOLT; EYE,FUEL FILTER | M14X29 EYE BOLT |
| 088(B). | 0500410200 | [2] | BOLT; BRKT,FUEL FILTER | A M10X20 W/LK WASHER |
| 088(B). | 0280810200 | [2] | BOLT; BRKT,FUEL FILTER | A M10X20 FLANGE |
| 088(B). | 0280510200 | [2] | BOLT; BRKT,FUEL FILTER | M10X20 FLANGE |
