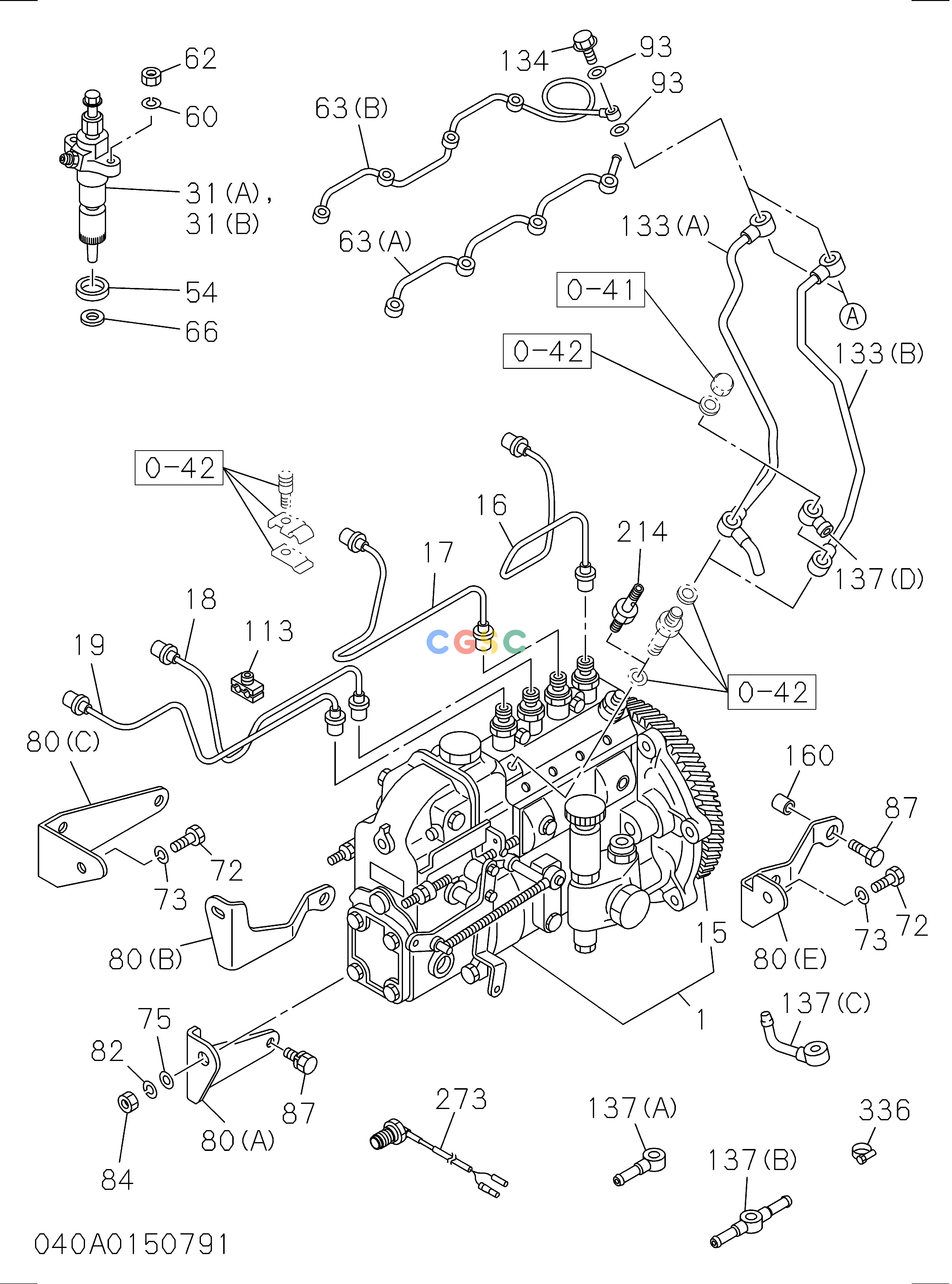

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8971289631 | [1] | PUMP ASM; INJ | C SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 001. | 8971685600 | [1] | PUMP ASM; INJ | SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 001. | 8972220150 | [1] | PUMP ASM; INJ | SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. |
| 015. | 8971219090 | [1] | COUPLING ASM; INJ PUMP | SEE FIG-NO 0-87 FOR COMPONENT. |
| 016. | 8970314672 | [1] | PIPE; INJ NO.1 | |
| 017. | 8970314682 | [1] | PIPE; INJ NO.2 | |
| 018. | 8970314692 | [1] | PIPE; INJ NO.3 | |
| 019. | 8970314702 | [1] | PIPE; INJ NO.4 | |
| 031(B). | 1153003310 | [4] | NOZZLE ASM; INJ | |
| 032(B). | 8970161471 | [4] | HOLDER ASM; NOZZLE | |
| 033. | 1153112630 | [4] | NOZZLE; INJ | |
| 034. | 1153390090 | [4] | BOLT; EYE,NOZZLE HOLDER | |
| 035. | 1153320170 | [4] | NUT; NOZZLE RET,NOZZLE HOLDER | |
| 036. | 1153390100 | [8] | GASKET; RETURN PIPE,NOZZLE HOLDER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 037(B). | 5153320060 | [4] | NUT; CAP,NOZZLE HOLDER | |
| 038(B). | 5153390600 | [4] | GASKET; CAP NUT,NOZZLE HOLDER | |
| 039(B). | 8941695030 | [4] | SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER | |
| 041(B). | 8943203080 | [4] | CONNECTOR; FUEL INL,NOZZLE HOLDER | |
| 042. | 5513390030 | [4] | GASKET; INL CONNECTOR,NOZZLE HOLDER | |
| 044. | 5153430050 | [4] | SPRING; NOZZLE,NOZZLE HOLDER | |
| 045(B). | 8941695020 | [4] | ROD; PUSH,NOZZLE HOLDER | |
| 046. | 9153470030 | [8] | PIN; NOZZLE SET,NOZZLE HOLDER | |
| 054. | 9153390510 | [4] | COVER; DUST,NOZZLE HOLDER | |
| 062. | 0911501080 | [8] | NUT; NOZZLE HOLDER | A M8 |
| 062. | 0911801080 | [8] | NUT; NOZZLE HOLDER | M8 |
| 063(B). | 8970209371 | [1] | PIPE; FUEL,NOZZLE LEAK OFF | |
| 065. | 9095720140 | [4] | GASKET; FUEL FILTER | ID=14.2 OD=23.0 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 066. | 5153150030 | [4] | GASKET; INJ NOZZLE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 075. | 9091605100 | [1] | WASHER; PL,BRKT TO INJ PUMP | A ID=10.5 |
| 075. | 0916105100 | [1] | WASHER; PL,BRKT TO INJ PUMP | ID=10.5 |
| 080(B). | 8970224520 | [1] | BRACKET; PUMP | |
| 082. | 9091505100 | [1] | WASHER; LK,BRKT TO C/BL | A ID=10.2 |
| 082. | 0915105100 | [1] | WASHER; LK,BRKT TO C/BL | ID=10.2 |
| 084. | 9091105100 | [1] | NUT; BRKT TO BRKT | A M10 |
| 084. | 0911105100 | [1] | NUT; BRKT TO BRKT | M10 |
| 093. | 9095714080 | [2] | GASKET; LEAK OFF PIPE | |
| 113. | 5154190131 | [3] | CLIP; INJ PIPE | |
| 133(A). | 8970209350 | [1] | PIPE; INJ NOZZLE LEAK OFF | |
| 134. | 1096750371 | [1] | BOLT; JOINT,LEAK OFF PIPE | M8X18 FLANGE |
