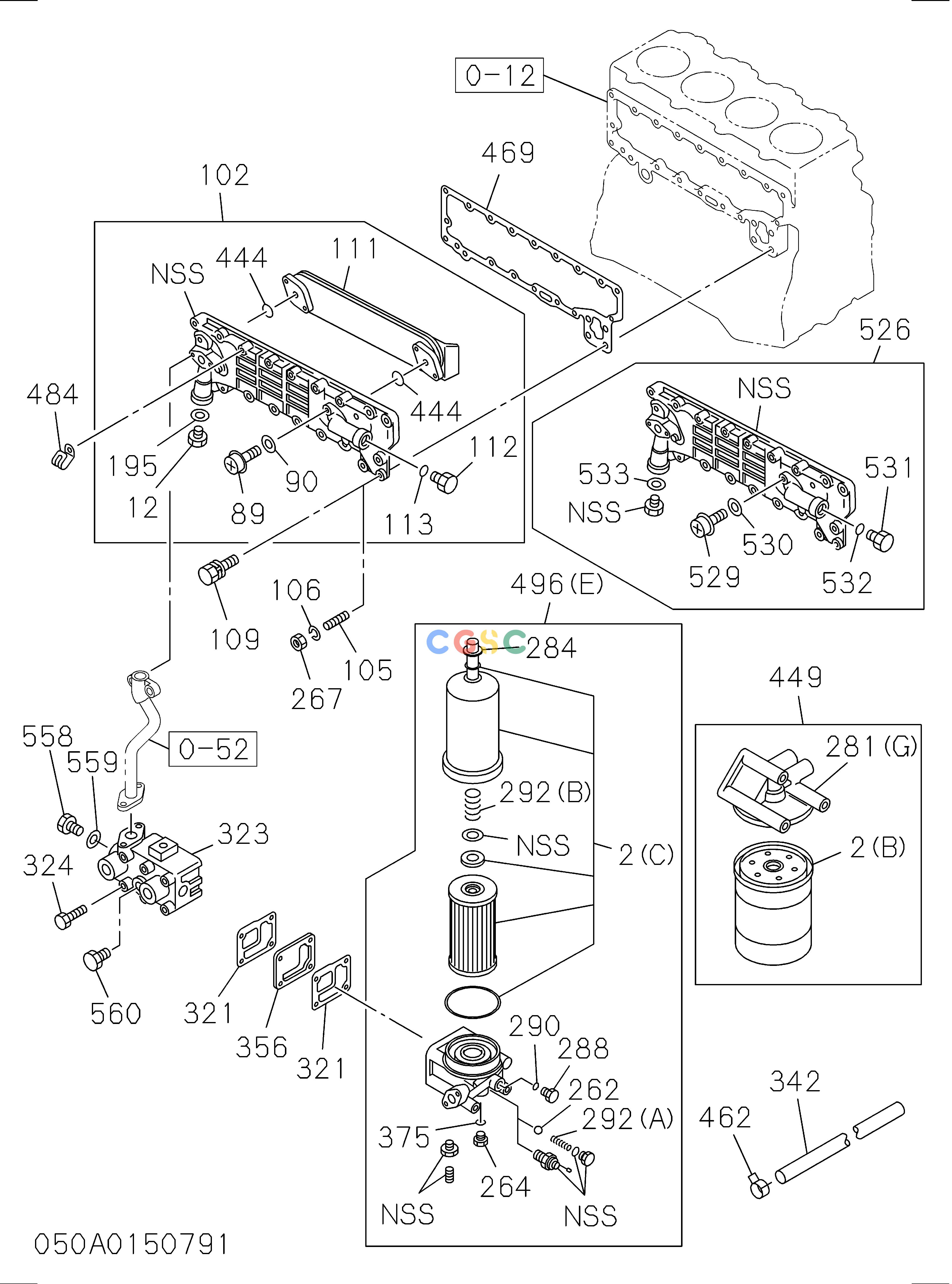

日立零件查询（EX135USR）050: OIL COOLER AND OIL FILTER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002(A). | 8941609641 | [1] | ELEMENT; OIL FILTER | A |
| 002(A). | 8943212191 | [1] | ELEMENT; OIL FILTER | |
| 002(B). | 8970261342 | [1] | ELEMENT; OIL FILTER | |
| 012. | 5112880020 | [1] | VALVE ASM; BYPASS | |
| 089. | 5112890090 | [4] | BOLT; ELEMENT TO CASE | C M8X16 |
| 089. | 0280808160 | [4] | BOLT; ELEMENT TO CASE | M8X16 FLANGE |
| 090. | 1217290430 | [4] | GASKET; BOLT,OIL COOLER | |
| 102. | 8970200372 | [1] | COOLER ASM; OIL | |
| 109. | 8942059861 | [1] | BOLT; OIL COOLER TO BODY | M8X65 W/LK WASHER |
| 109. | 0500408250 | [11] | BOLT; OIL COOLER TO BODY | A M8X25 W/LK WASHER |
| 109. | 0500408200 | [2] | BOLT; OIL COOLER TO BODY | A M8X20 W/LK WASHER |
| 109. | 0500408450 | [8] | BOLT; OIL COOLER TO BODY | A M8X45 W/LK WASHER |
| 109. | 0505408250 | [11] | BOLT; OIL COOLER TO BODY | M8X25 W/LK WASHER |
| 109. | 0505408200 | [2] | BOLT; OIL COOLER TO BODY | M8X20 W/LK WASHER |
| 109. | 0505408450 | [8] | BOLT; OIL COOLER TO BODY | M8X45 W/LK WASHER |
| 111. | 8970320250 | [1] | CORE; OIL COOLER | |
| 112. | 8971281500 | [1] | PLUG; OIL COOLER CASE | |
| 113. | 9095652250 | [1] | GASKET; PLUG,OIL COOLER CASE | |
| 195. | 9095716200 | [1] | GASKET; OIL COOLER | |
| 281(C). | 8970261332 | [1] | COVER; OIL FILTER | |
| 288. | 9132630100 | [2] | PLUG; OIL DRAIN | |
| 290. | 9099211930 | [2] | GASKET; PLUG,OIL DRAIN | |
| 321. | 8943706700 | [1] | GASKET; OIL FILTER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 329(A). | 0500410350 | [1] | BOLT; OIL FILTER | A M10X35 W/LK WASHER |
| 329(A). | 0500410400 | [1] | BOLT; OIL FILTER | A M10X40 W/LK WASHER |
| 329(A). | 0500410700 | [1] | BOLT; OIL FILTER | A M10X70 W/LK WASHER |
| 329(A). | 5090000071 | [1] | BOLT; OIL FILTER | A M10X135 |
| 329(A). | 0280810400 | [1] | BOLT; OIL FILTER | A M10X40 FLANGE |
| 329(A). | 0280810700 | [1] | BOLT; OIL FILTER | A M10X70 FLANGE |
| 329(A). | 0280860130 | [1] | BOLT; OIL FILTER | A M10X130 FLANGE |
| 329(A). | 0286810350 | [1] | BOLT; OIL FILTER | A M10X35 FLANGE |
| 329(A). | 0280510400 | [1] | BOLT; OIL FILTER | M10X40 FLANGE |
| 329(A). | 0280510700 | [1] | BOLT; OIL FILTER | M10X70 FLANGE |
| 329(A). | 0280560130 | [1] | BOLT; OIL FILTER | M10X130 FLANGE |
| 329(A). | 0286510350 | [1] | BOLT; OIL FILTER | M10X35 FLANGE |
| 329(B). | 8944295250 | [3] | BOLT; OIL FILTER | M10X135 |
| 331. | 9091605100 | [3] | WASHER; PL,OIL FILTER | A ID=10.5 |
| 331. | 0916105100 | [3] | WASHER; PL,OIL FILTER | ID=10.5 |
| 392. | 9091505100 | [8] | WASHER; LK | A ID=10.2 |
| 392. | 0915105100 | [8] | WASHER; LK | ID=10.2 |
| 444. | 5112820110 | [2] | GASKET; ELEMENT TO BODY | |
| 469. | 8970196530 | [1] | GASKET; OIL COOLER TO C/BL | A ALSO INCLUDED IN GASKET SET(ENGINE) |
| 469. | 8972333023 | [1] | GASKET; OIL COOLER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 496(C). | 8970209283 | [1] | FILTER ASM; OIL | |
