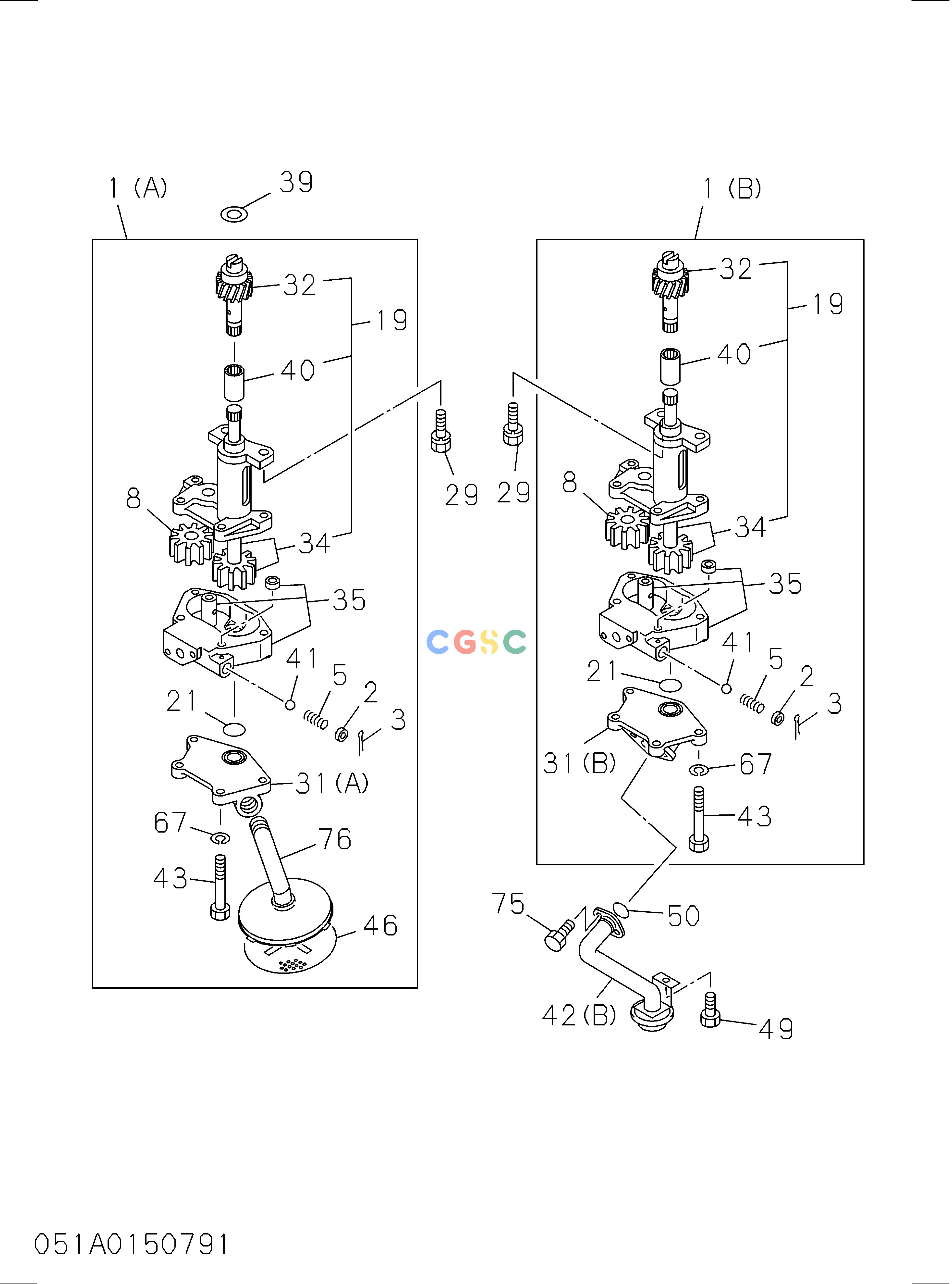

日立零件查询（EX135USR）051: OIL PUMP AND OIL STRAINER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(C). | 8970653840 | [1] | PUMP ASM; OIL | |
| 002. | 5131650040 | [1] | SEAT; SPR | |
| 003. | 9081140300 | [1] | PIN; SPLIT | A |
| 003. | 0811240300 | [1] | PIN; SPLIT | |
| 005. | 5095800980 | [1] | SPRING; COIL | |
| 008. | 8941635950 | [1] | GEAR; DRIVEN,OIL PUMP | |
| 019. | 5878120080 | [1] | GEAR SET; OIL PUMP | |
| 029. | 0500410250 | [2] | BOLT; OIL PUMP | A M10X25 W/LK WASHER |
| 029. | 0280810250 | [2] | BOLT; OIL PUMP | A M10X25 FLANGE |
| 029. | 0280510250 | [2] | BOLT; OIL PUMP | M10X25 FLANGE |
| 032. | 1131280180 | [1] | PINION; OIL PUMP DRIVING | |
| 034. | 8941635940 | [1] | SHAFT; OIL PUMP | |
| 035. | 8941635970 | [1] | COVER; OIL PUMP | |
| 040. | 1131230160 | [1] | COUPLING; PINION TO SHAFT | |
| 041. | 5098430030 | [1] | BALL; OIL RELIEF VLV | |
| 042(A). | 1131401160 | [1] | STRAINER; OIL,OIL PUMP | |
| 043. | 8943445910 | [4] | BOLT; CASE | |
